Potometer Manufacturer,Supplier and Exporter in India
Product Code : JA-ELA-5401

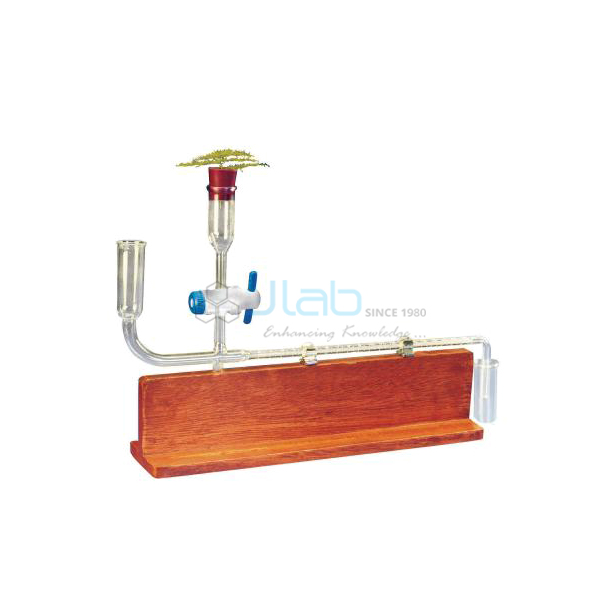

The Potometer (SKU JA-ELA-5401) is a glass apparatus on a wooden stand, made by JaincoLab, for measuring transpiration in plant leaves. A cut shoot is sealed into a stopper at one end, the apparatus is filled with water, and the open end of the horizontal capillary dips into a beaker of water. As the shoot draws water, the movement along the capillary, graduated in millimetres, shows the rate of uptake.
Specifications
The potometer has a 1 mm bore capillary, a 20 mm diameter reservoir 170 mm high, an overall length of 320 mm and a 320 x 80 mm base, as given in the product data.
| Product | Potometer |
| SKU | JA-ELA-5401 |
| Measuring tube | Horizontal narrow-bore glass capillary, graduated in mm |
| Capillary bore | 1 mm |
| Shoot end | Vessel for the shoot, sealed with a stopper |
| Reservoir | Vertical limb with stopcock and funnel on a ground glass joint |
| Reservoir diameter | 20 mm |
| Height to top of reservoir | 170 mm |
| Overall length | 320 mm |
| Base | Wooden stand, 320 x 80 mm (L x W) |
Experiments with the potometer
The potometer measures the rate of water uptake by a cut shoot, which closely follows transpiration, and lets that rate be compared under different external conditions.
- Measuring the rate of transpiration of a leafy shoot
- Comparing water uptake in still and moving air, light and shade
- Showing the effect of temperature or humidity on transpiration
- Plant physiology practicals in school biology and B.Sc. botany
Scope of supply and ordering
The listing covers the glass potometer mounted on its wooden stand; a beaker for the capillary end is a separate item, and quantity, packing and lead time are confirmed on the quotation.
Frequently asked questions
What is the bore of the capillary tube?
1 mm, graduated in millimetres.
How is the shoot fitted?
The cut shoot is sealed into a stopper that fits the end tube, and the apparatus is then filled with water.
How big is the apparatus?
It is 320 mm long overall on a 320 x 80 mm wooden base, with the reservoir top 170 mm high.
Related products
Plant physiology apparatus is grouped in our educational laboratory apparatus range.
Request a quote
For the Potometer (JA-ELA-5401), send the number of units needed through the contact page. Tender and project enquiries can be sent through the tenders page.
