R.F. Oscillator Manufacturer,Supplier and Exporter in India
Product Code : JA-TAMI-1021

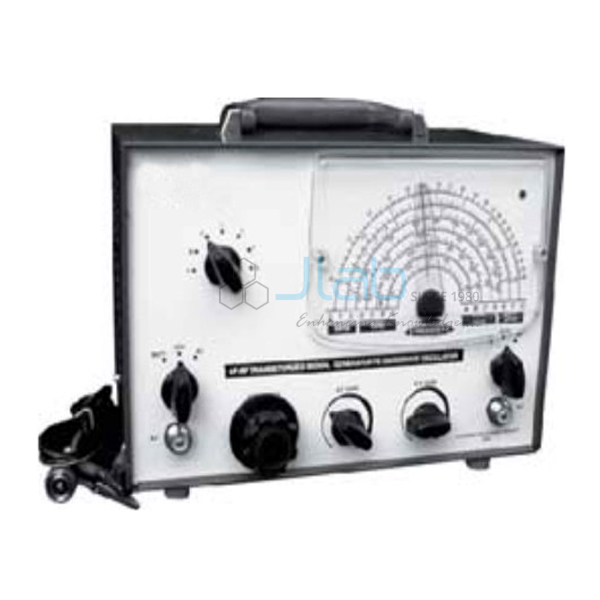

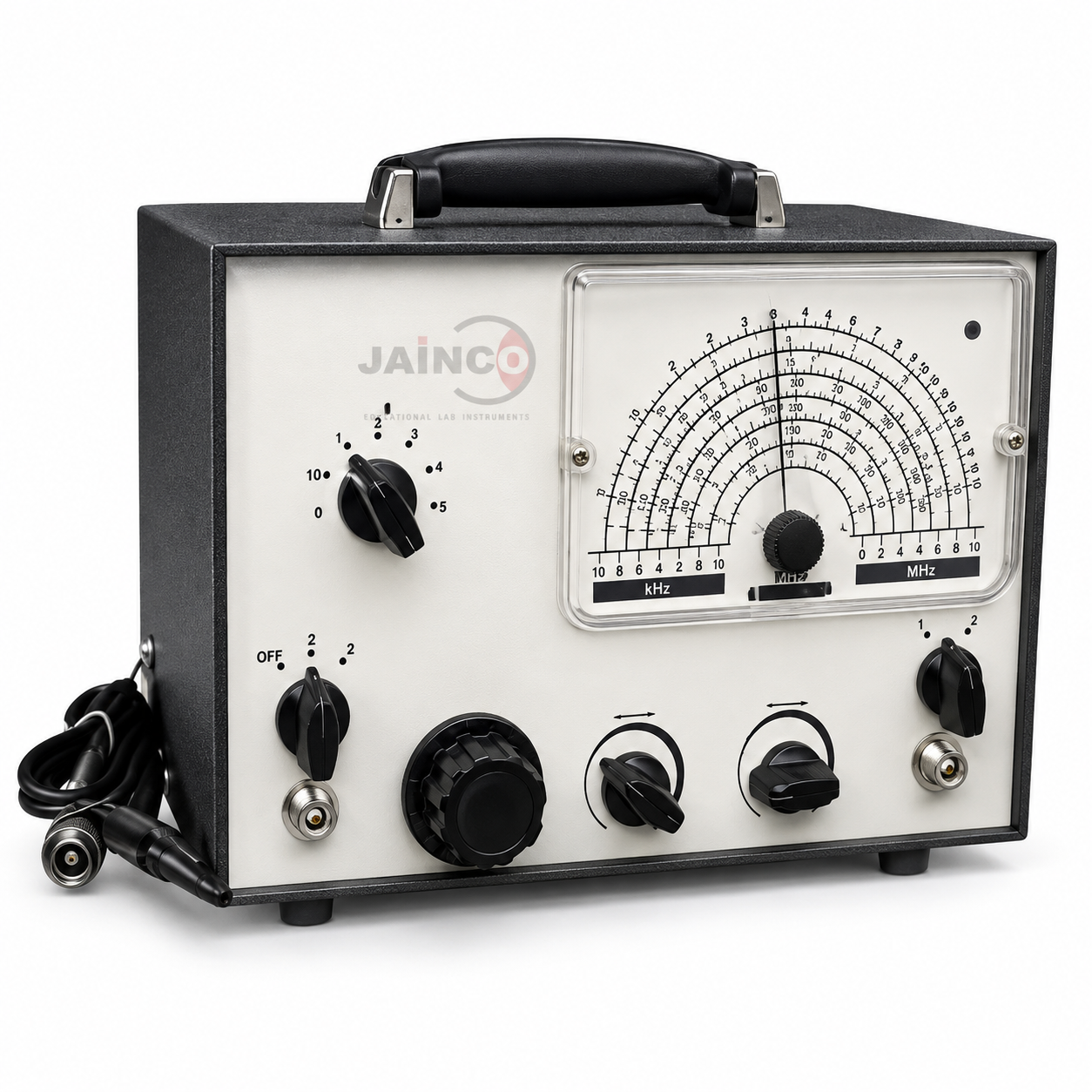

The R.F. Oscillator (SKU JA-TAMI-1021) is a radio-frequency signal source covering 100 kHz to 30 MHz in eight bands, used in communication and electronics laboratories for work on tuned circuits and receivers. It gives either a modulated or a continuous-wave output. The modulation frequency is 400 Hz at 30% depth, and the 400 Hz tone is also brought out to its own terminals. Frequency accuracy is within 2%.
Specifications
Coverage and modulation details from the product data:
| Product | R.F. Oscillator |
| SKU | JA-TAMI-1021 |
| Frequency range | 100 kHz to 30 MHz in eight bands |
| Output | Modulated or continuous wave (CW) |
| Modulation frequency | 400 Hz, also available at output terminals |
| Modulation depth | 30% |
| Accuracy | Within 2% |
Where it is used
- Signal source for receiver and IF amplifier practicals
- Studying amplitude modulation against a CW carrier
- Resonance experiments with tuned LC circuits
- Supplying a 400 Hz audio tone from the separate terminals
Scope of supply and ordering
The oscillator is quoted as one unit per order line. Output leads, quantities and packing are given on the quotation.
Frequently asked questions
What frequency range does the R.F. Oscillator cover?
100 kHz to 30 MHz in eight bands.
Can it give an unmodulated carrier?
Yes, it provides a continuous-wave output as well as a modulated one.
What is the modulation?
400 Hz at 30% depth; the 400 Hz tone is also available at its own terminals.
