Reading Telescope Manufacturer,Supplier and Exporter in India
Product Code : JA-ELA-5404

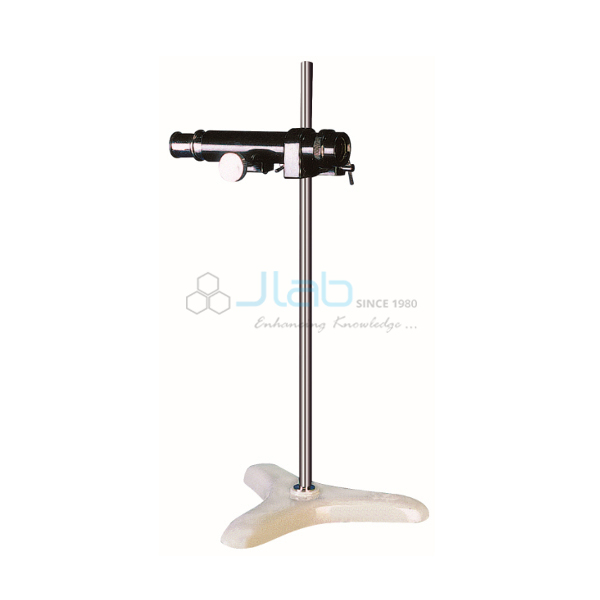

The Reading Telescope (SKU JA-ELA-5404) is a laboratory telescope made by JaincoLab for reading a scale or sighting a mark from a distance in physics practicals. It has an achromatic objective of about 178 mm focal length with a 23 mm clear aperture, an 8x Ramsden eyepiece with a cross-line graticule, and rack and pinion focusing from about 1000 mm to infinity. It can be mounted on a retort stand.
Specifications
The optical values below are those given for the Reading Telescope; other specifications are also offered and are confirmed on the quotation.
| Product | Reading Telescope |
| SKU | JA-ELA-5404 |
| Objective | Achromatic, focal length about 178 mm |
| Clear aperture | 23 mm |
| Eyepiece | 8x, Ramsden type, with cross-line graticule |
| Focusing | Rack and pinion |
| Focusing range | About 1000 mm to infinity |
| Mounting | On a retort stand |
Uses of the reading telescope
In the telescope-and-scale method the telescope is focused on a scale seen in a small mirror, so a tiny rotation of the mirror shows as a large change in the reading at the cross-line.
- Telescope-and-scale readings of small deflections, for example with a mirror galvanometer
- Reading a distant scale in elasticity (Young's modulus) experiments
- Sighting a cross-line on a fixed mark in B.Sc. physics practicals
Scope of supply and ordering
Each reading telescope is supplied on its own; the retort stand and clamp for mounting are separate, and the specification chosen, quantity, packing and lead time are fixed on the quotation.
Frequently asked questions
What is the focusing range?
From about 1000 mm to infinity, by rack and pinion.
What eyepiece is fitted?
An 8x Ramsden eyepiece with a cross-line graticule.
How is it mounted?
It can be mounted on a retort stand.
Related products
More optics apparatus is in the educational laboratory apparatus range.
Request a quote
To order the Reading Telescope (JA-ELA-5404), write to [email protected] or use the contact page with the quantity. For tender or project supply, see our tenders page.
