Slip Roller Machine Manufacturer,Supplier and Exporter in India
Product Code : JA-PWI-8826

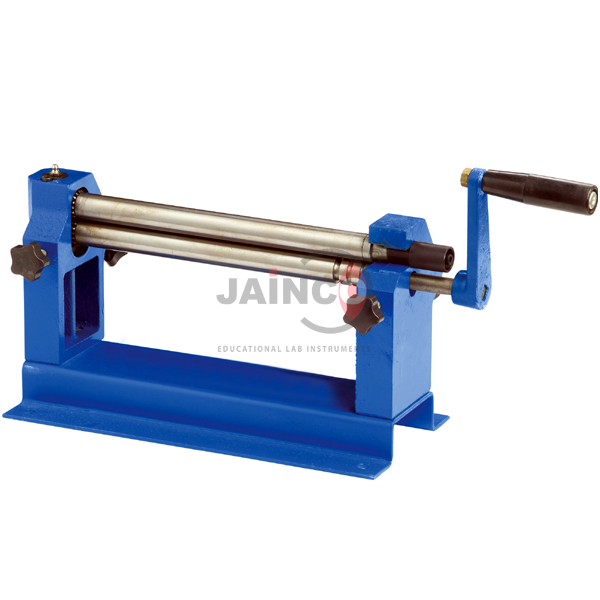

The slip roller machine forms sheet metal into curves and cylinders in sheet-metal and duct training. It has 3-inch turned, ground and polished high-carbon steel rolls, a 49-inch maximum forming length, 16-gauge mild steel capacity, a 1-1/2 inch minimum radius, wire grooves of 3/8, 1/2 and 5/8 inch, a 4:1 gear ratio and a 3/4 hp, 230/460 V three-phase motor at 22 RPM roll speed (SKU JA-PWI-8826).
Specifications
Listed specification:
| Product | Slip Roller Machine |
| SKU | JA-PWI-8826 |
| Type | Manual / electric |
| Capacity | 16 gauge mild steel |
| Maximum forming length | 49 inch |
| Roll diameter | 3 inch; turned, ground and polished high-carbon steel |
| Roll speed | 22 RPM |
| Motor | 3/4 hp, 230/460 V, 3 phase |
| Minimum forming radius | 1-1/2 inch |
| Wire grooves | 3/8, 1/2, 5/8 inch |
| Gear ratio | 4:1 |
Scope of supply and ordering
The listing covers one slip roller machine, supplied by JaincoLab. Packing, lead time and the quantity per order are agreed on the quotation.
Frequently asked questions
What thickness can it roll?
Up to 16 gauge mild steel, over a 49-inch length.
What is the smallest radius it can form?
1-1/2 inches.
What wire grooves are provided?
3/8, 1/2 and 5/8 inch.
Related products
Related items are grouped in the JaincoLab plumbing workshop instrument range.
Request a quote
Quotations for the Slip Roller Machine are prepared on request through the JaincoLab contact page. Buying under a laboratory tender? Use our tenders page.
