Study of 4 Bit Ripple Counter Forward and Reverse Manufacturer,Supplier and Exporter in India
Product Code : JA-DEECP-1173

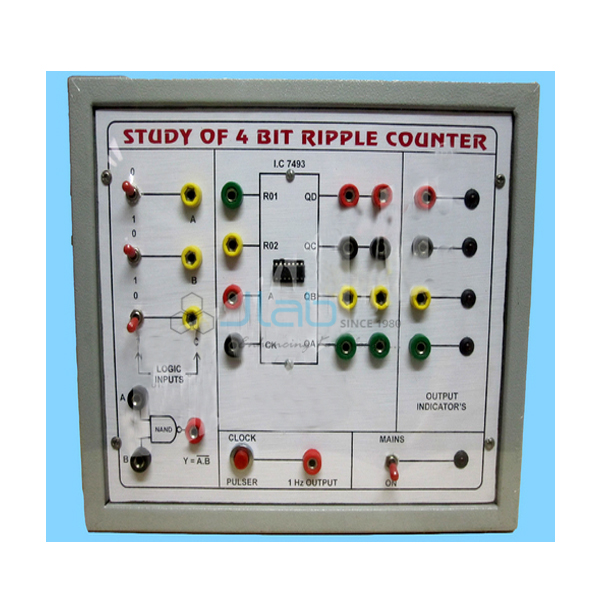

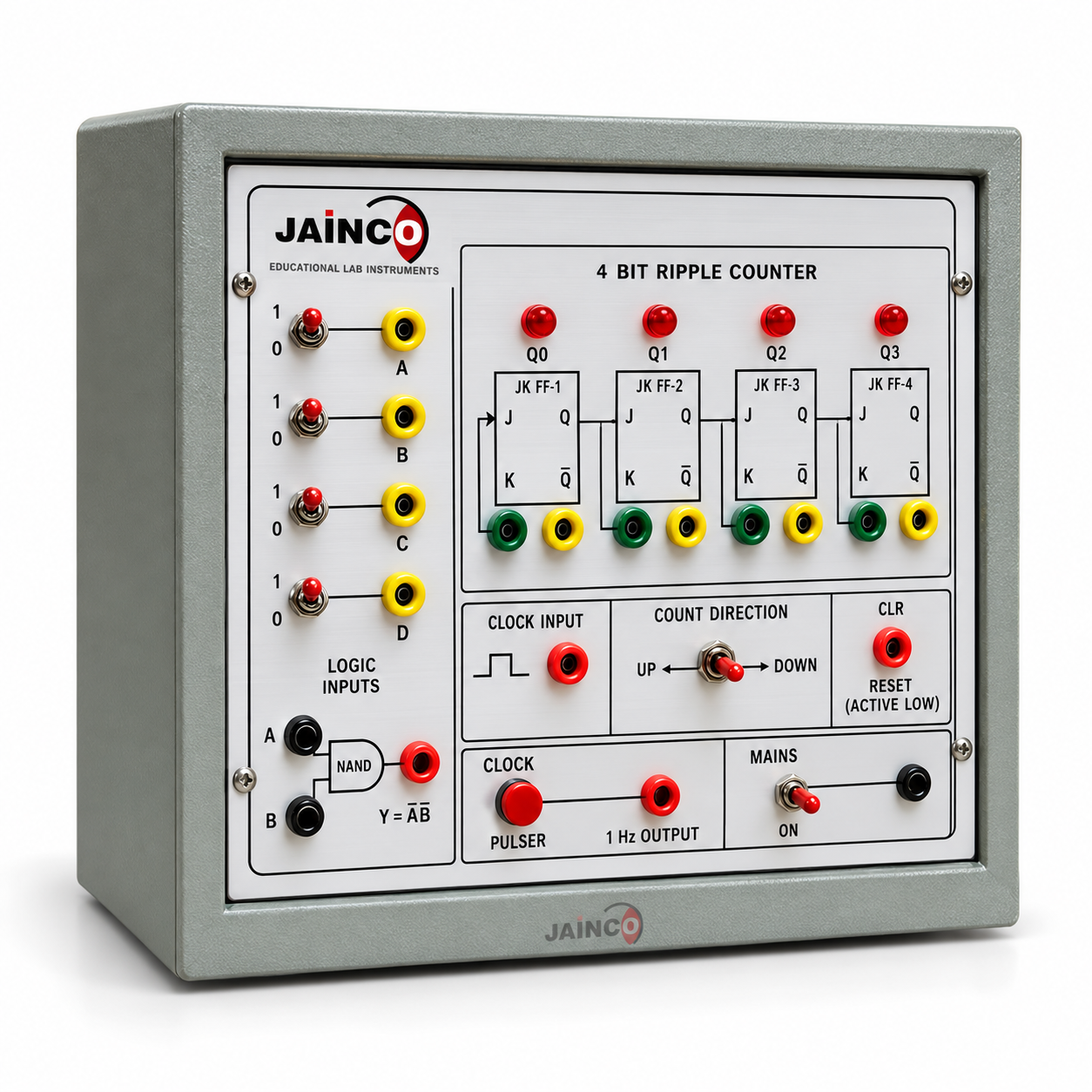

The Study of 4 Bit Ripple Counter Forward and Reverse apparatus (SKU JA-DEECP-1173) is used to verify the truth tables of an asynchronous 4-bit counter built from four JK flip-flops. The clock of each flip-flop is driven by the previous stage, so the count ripples through. Cascading the Q outputs gives forward counting from 0000 to 1111; cascading the complemented outputs gives reverse counting from 1111 to 0000. LED indicators show each flip-flop output.
Specifications
The listing gives these details:
| Product | Study of 4 Bit Ripple Counter Forward and Reverse |
| SKU | JA-DEECP-1173 |
| Flip-flops | Four JK flip-flops, cascaded (ripple) |
| Counting modes | Forward (up) and reverse (down) |
| Count range | 0 to 15, 16 states |
| Output indication | LED indicator on each flip-flop output |
Scope of supply and ordering
Clock source, supply details, quantities and packing are confirmed on the quotation.
Frequently asked questions
How many flip-flops does the ripple counter use?
Four JK flip-flops, giving a count of 0 to 15.
How is reverse counting obtained?
By cascading the complemented outputs to the next clock input instead of the Q outputs.
