Temperature Co-efficient Resistance Coil Manufacturer,Supplier and Exporter in India
Product Code : JA-SI-8034

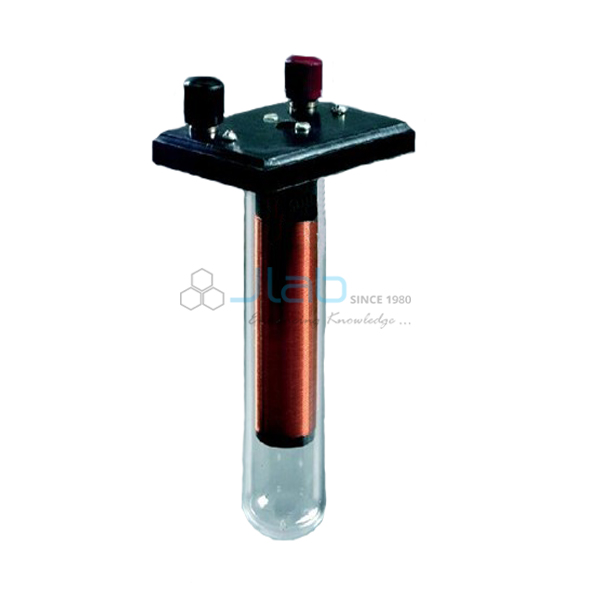

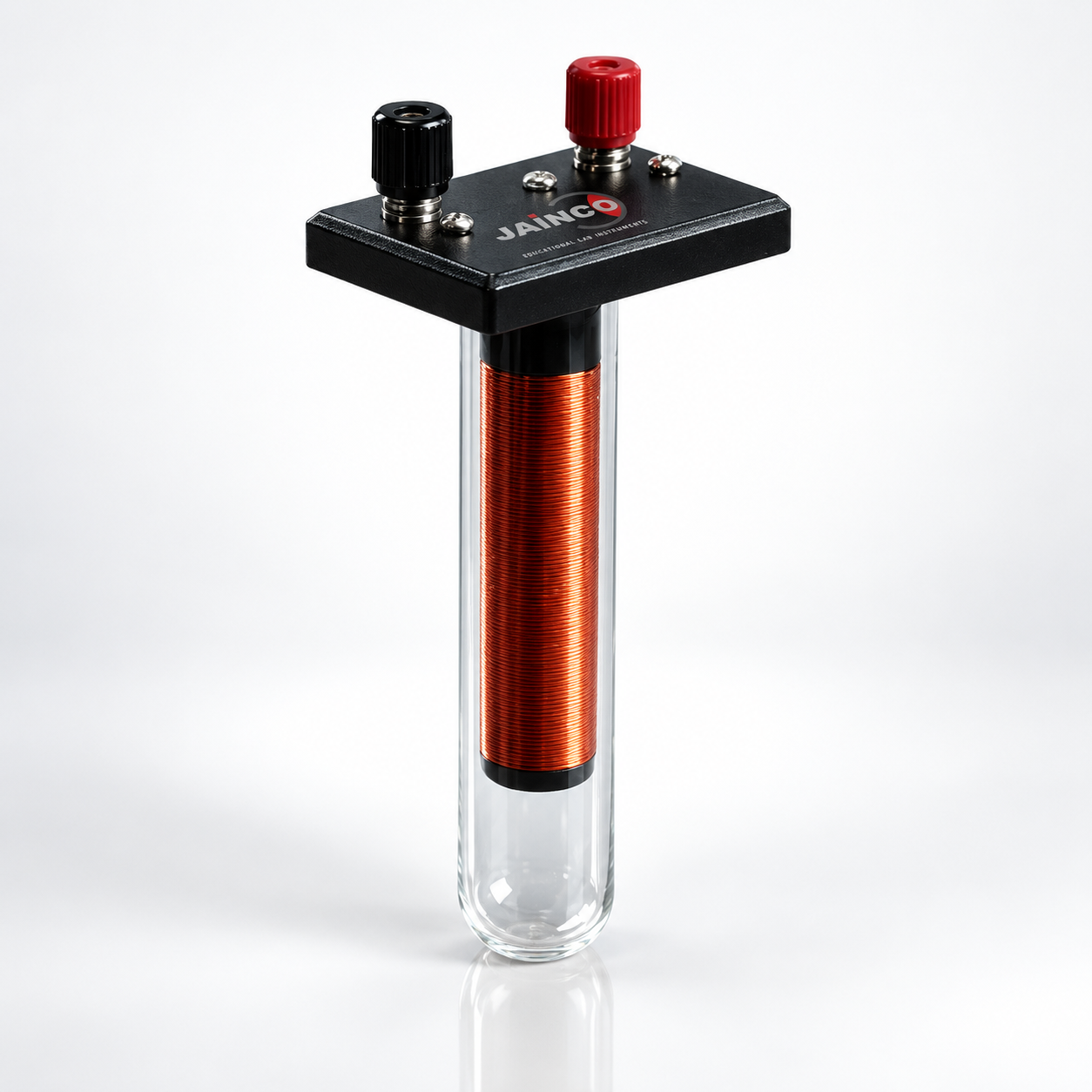

The Temperature Co-efficient Resistance Coil (SKU JA-SI-8034) is used to find how the resistance of copper changes with temperature. A coil of fine enamelled copper wire, about 7 to 10 ohm, is wound on an insulating frame and joined to thick copper wires fitted with terminals. The coil sits in a borosilicate glass tube that holds paraffin oil, and the rubber stopper is drilled for a thermometer. The tube is about 100 mm long and 25 mm in diameter.
Specifications
Construction as listed:
| Product | Temperature Co-efficient Resistance Coil |
| SKU | JA-SI-8034 |
| Coil | Fine enamelled copper wire, about 7-10 ohm |
| Former | Insulating frame |
| Leads | Thick copper wire fitted with terminals |
| Enclosure | Borosilicate glass tube for paraffin oil |
| Stopper | Rubber, drilled for a thermometer |
| Tube size | About 100 mm x 25 mm diameter |
Scope of supply and ordering
Paraffin oil and thermometer are not stated as included and are confirmed on the quotation, with quantities and packing.
Frequently asked questions
What resistance does the coil have?
About 7 to 10 ohm, wound from fine enamelled copper wire.
Why is the coil in a glass tube?
The borosilicate tube holds paraffin oil around the coil, and the stopper takes a thermometer to read its temperature.
Related products
- Portable Wheatstone Bridge
- Potentiometer Single wire
- Self and Mutual Inductance Coils
- Fixed Voltage Stabilized Power Supply
Physics measuring apparatus is listed in our scientific instrument range.
Request a quote
For the temperature coefficient coil, send the quantity through our contact page. Buying under a laboratory tender? Use our tenders page.
