Thermo Hygrograph Manufacturer,Supplier and Exporter in India
Product Code : JA-ELA-6407

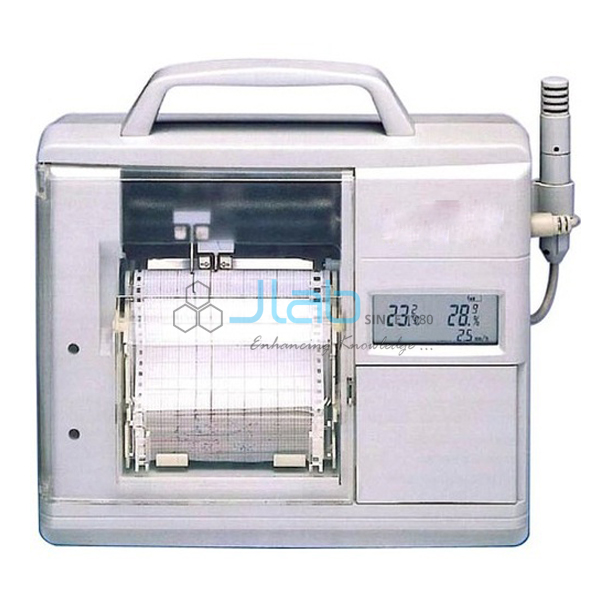

The Thermo Hygrograph (SKU JA-ELA-6407) is a mechanical recording instrument supplied by JaincoLab that draws a continuous chart of air temperature from -15 °C to +65 °C and relative humidity from 0 to 100%. A clockwork drive turns the chart drum, set for daily or weekly rotation, and the traces are drawn with fibre-tip pens or nibs. It is used for environmental control in laboratories and plants, in research and agricultural institutes, in textile mills and in meteorology.
Specifications
The ranges, drive and construction listed for the thermo hygrograph are shown below.
| Product | Thermo Hygrograph |
| SKU | JA-ELA-6407 |
| Temperature range | -15 °C to +65 °C |
| Humidity range | 0-100% RH |
| Drive | Mechanical clockwork |
| Chart rotation | Daily and/or weekly, changeable |
| Recording | Fibre-tip pens or nibs |
| Housing | Cast aluminium and chrome steel, white finish |
| Window | Transparent synthetic glazing |
Where it is used
A single chart gives a continuous record of both quantities, so changes in humidity can be read against changes in temperature:
- Environmental control in laboratories, stores and plants
- Humidity records in textile mills
- Meteorology and agricultural research stations
Scope of supply and ordering
The hygrograph is supplied by JaincoLab; chart papers, pens, quantity and packing are confirmed on the quotation.
Frequently asked questions
What does it record?
Air temperature from -15 °C to +65 °C and relative humidity from 0 to 100%, on one chart.
Does it need electricity?
No. The chart drum is driven by mechanical clockwork.
Can the chart period be changed?
Yes. Rotation is daily and/or weekly and can be changed.
What is the housing made of?
Cast aluminium and chrome steel with a white finish, with a transparent synthetic window.
Related products
Weather and environmental instruments are in the educational laboratory apparatus range.
Request a quote
Ask for a quotation on the Thermo Hygrograph (JA-ELA-6407) through the contact page. Institutions and contractors buying under a tender can also reach us via the tenders page.
