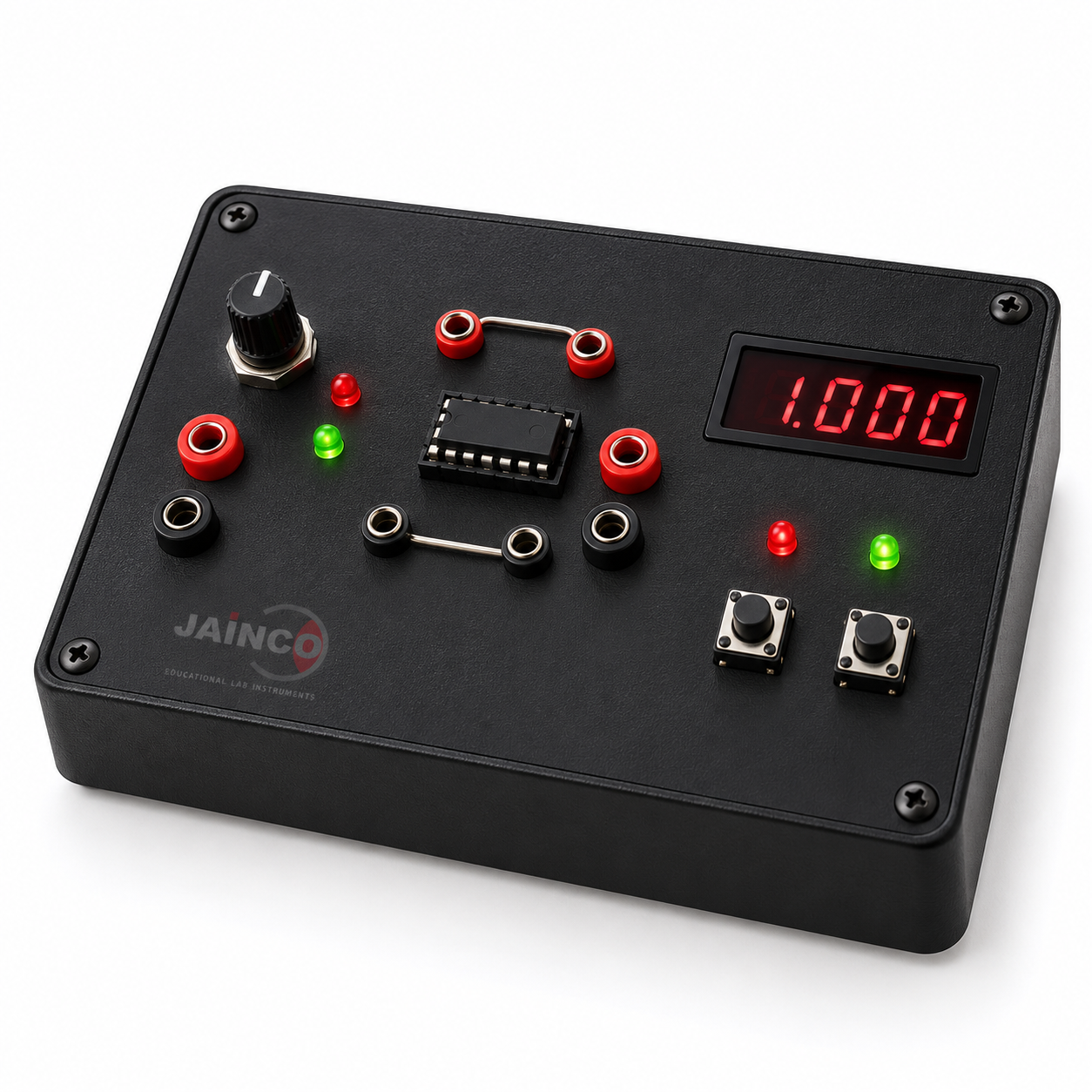

To Measure the Clock Pulse IC 7400 Manufacturer,Supplier and Exporter in India
Product Code : JA-DEECP-1194
The To Measure the Clock Pulse IC 7400 apparatus (SKU JA-DEECP-1194) uses the NAND gates of an IC 7400 connected as a clock, or astable, circuit. One switch controls the circuit input, an LED blinks with the clock pulse, and a terminal is provided so the clock frequency can be measured with a frequency meter or CRO.
Specifications
The listing gives these details:
| Product | To Measure the Clock Pulse IC 7400 |
| SKU | JA-DEECP-1194 |
| IC | 7400, quad 2-input NAND, used as a clock circuit |
| Input | One switch |
| Output indication | One LED showing the clock pulse |
| Measurement | Terminal for the clock pulse frequency |
Scope of supply and ordering
Supply details, quantities and packing are confirmed on the quotation.
Frequently asked questions
How is the clock pulse generated?
By NAND gates of an IC 7400 connected as an astable circuit.
How is the frequency measured?
At the terminal provided, using a frequency meter or CRO.
