Vertical Electrophoresis System Manufacturer,Supplier and Exporter in India
Product Code : JA-ELA-5436

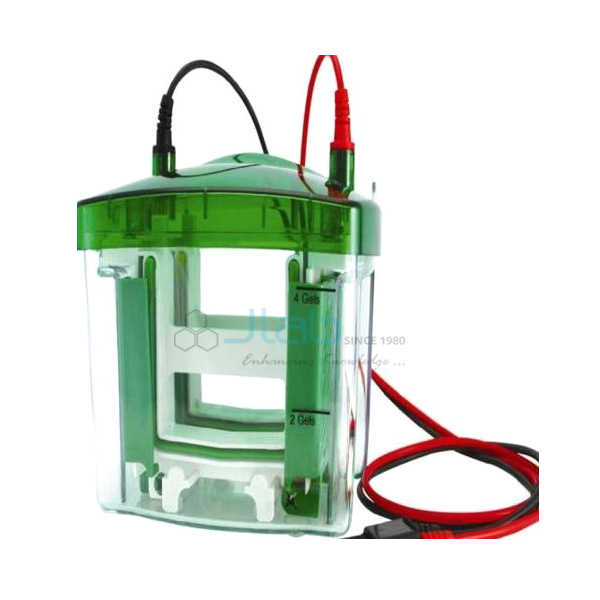

The Vertical Electrophoresis System (SKU JA-ELA-5436) is a mini vertical gel system supplied by JaincoLab for polyacrylamide gel electrophoresis (PAGE) of proteins and nucleic acids. It runs from one to four gels at a time, using either precast gels or gels cast by hand between a short plate of 10.1 x 7.3 cm and a spacer plate of 10.1 x 8.2 cm, giving a gel of 8.3 x 7.3 cm.
Specifications
The system takes 1 to 4 gels; hand-cast gels are formed between the short plate and the spacer plate, with the dimensions below.
| Product | Vertical Electrophoresis System |
| SKU | JA-ELA-5436 |
| Number of gels | 1 to 4 |
| Gel types | Precast or hand-cast |
| Short plate (W x L) | 10.1 x 7.3 cm |
| Spacer plate (W x L) | 10.1 x 8.2 cm |
| Gel size (W x L) | 8.3 x 7.3 cm |
Uses of the vertical electrophoresis system
- SDS-PAGE separation of proteins in biochemistry and biotechnology practicals
- Native PAGE and small nucleic acid separations
- Running up to four mini gels side by side for comparison
Scope of supply and ordering
The listing covers the vertical system supplied by JaincoLab; the number of glass plate sets, combs and casting accessories, the power supply, quantity and lead time are confirmed on the quotation.
Frequently asked questions
How many gels can be run at once?
From one to four.
What is the gel size?
8.3 x 7.3 cm (W x L), cast between a 10.1 x 7.3 cm short plate and a 10.1 x 8.2 cm spacer plate.
Can precast gels be used?
Yes. Both precast and hand-cast gels are listed.
