Concrete Cover Meter Manufacturer,Supplier and Exporter in India
Product Code : JA-CL-8850

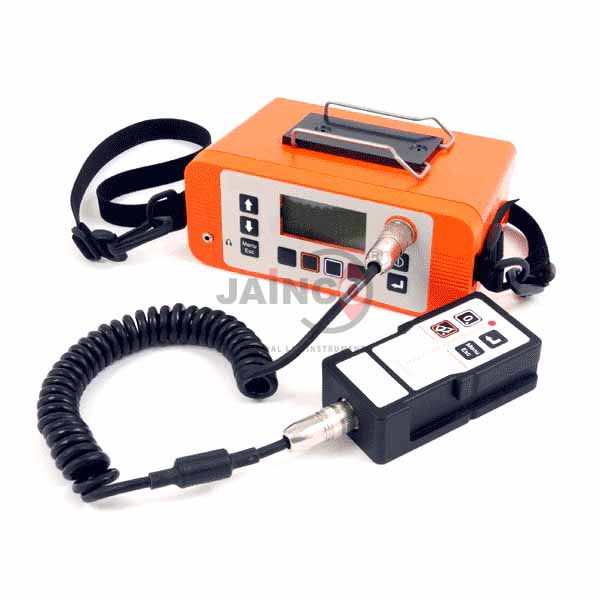

The concrete cover meter locates reinforcing bars in concrete and measures the depth of cover over them, with the bar size either preset or detected automatically. An on-screen gauge and audio feedback show rebar position and orientation, and cover accuracy is ±1 mm up to 60 mm cover (SKU JA-CL-8850).
Specifications
Measuring data from the listing:
| Product | Concrete Cover Meter |
| SKU | JA-CL-8850 |
| Cover accuracy | ±1 mm up to 60 mm; ±2 mm up to 120 mm; ±3 mm up to 160 mm; ±4 mm over 160 mm |
| Automatic bar sizing accuracy | ±0.5 mm to ±1.5 mm |
| Resolution | 0.1 mm |
| Operating depth | 6 mm bar up to 60 mm cover; 40 mm bar up to 80 mm cover |
| Bar resolution (minimum spacing) | 16 mm bar at 60 mm cover: 70 mm; 16 mm bar at 100 mm cover: 110 mm; 25 mm bar at 130 mm cover: 150 mm |
| Weight | 800 g |
| Battery operation | 20 hours |
| Supplied with | Probe with integral cable, battery charger, spare probe sole-plate, equipment bag |
Uses of the concrete cover meter
- Surveying reinforcement depth in concrete members
- Pin-pointing rebar location and orientation on site with the on-screen gauge and audio feedback
- Absolute readings for non-standard bar sizes, large diameter pipes and other pre-fabricated items, read against custom tables
Scope of supply and ordering
The listing covers the cover meter with its probe and integral cable, battery charger, spare probe sole-plate and carrying bag, supplied by JaincoLab. Packing, lead time and the quantity per order are agreed on the quotation.
Frequently asked questions
How accurate is the cover reading?
±1 mm up to 60 mm cover, widening to ±4 mm beyond 160 mm cover.
Does the bar size need to be known?
No. The bar size can be preset if known or detected automatically, with sizing accuracy of ±0.5 to ±1.5 mm.
How long does the battery last?
The listing gives 20 hours of battery operation; a battery charger is included.
