Forced Convection Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-ELA-5512

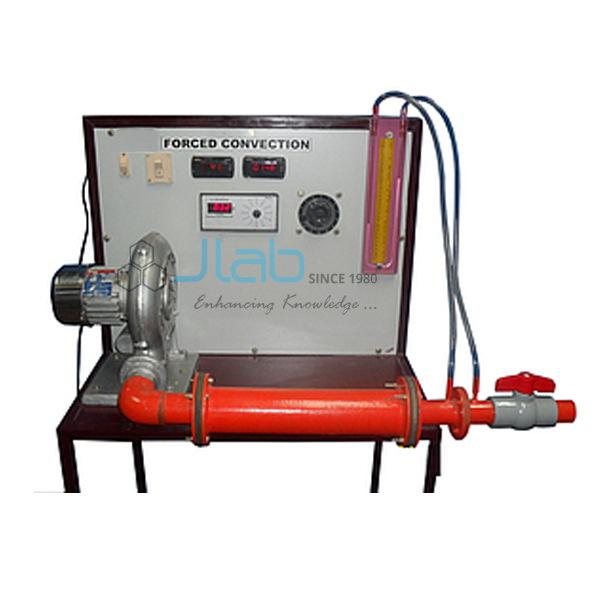

The Forced Convection Apparatus (SKU JA-ELA-5512) is a heat transfer experiment made by JaincoLab for mechanical and chemical engineering laboratories. Air from a centrifugal blower is forced through a copper test pipe, 30 mm in diameter and 500 mm long, heated by a 300 W electric heater. The air flow is measured with an orifice plate and U-tube manometer, the heater input with a dimmer, digital voltmeter and ammeter, and the temperatures at 12 points with K-type thermocouples on a selector-switch indicator.
Specifications
The test section and instrumentation listed for the forced convection apparatus are shown below.
| Product | Forced Convection Apparatus |
| SKU | JA-ELA-5512 |
| Test pipe | Copper, 30 mm diameter, 500 mm long |
| Heater | 300 W, 230 V AC |
| Air blower | Centrifugal, 230 V AC |
| Air flow measurement | Orifice plate with U-tube manometer, 0-300 mm WC |
| Heater control | Dimmer, 0-250 V AC, 2 A |
| Voltmeter | Digital, 0-500 V AC |
| Ammeter | Digital, 0-2 A AC |
| Temperature sensors | 12 K-type thermocouples |
| Temperature indicator | 12-channel with selector switch, 0-199.9 |
Experiments
- Heat transfer coefficient for forced convection of air in a heated pipe
- Effect of air velocity on the heat transfer coefficient
- Comparison of measured values with forced-convection correlations for pipe flow
Scope of supply and ordering
The apparatus is supplied with the test section, blower, orifice meter, manometer and instruments listed; the bench or panel arrangement, quantity and packing are confirmed on the quotation.
Frequently asked questions
How is the air flow rate measured?
With an orifice plate and a U-tube manometer reading 0 to 300 mm of water.
How many temperature points are measured?
12, using K-type thermocouples read on a 12-channel indicator.
How is the heat input set?
With the dimmer, while the digital voltmeter and ammeter show the power supplied to the 300 W heater.
Related products
Engineering laboratory equipment is in the educational laboratory apparatus range.
Request a quote
Ask for a quotation on the Forced Convection Apparatus (JA-ELA-5512) through our contact page. For tender or project supply, see our tenders page.
