Hydraulic Pipe Bending Machine Manufacturer,Supplier and Exporter in India
Product Code : JA-SWES-8750

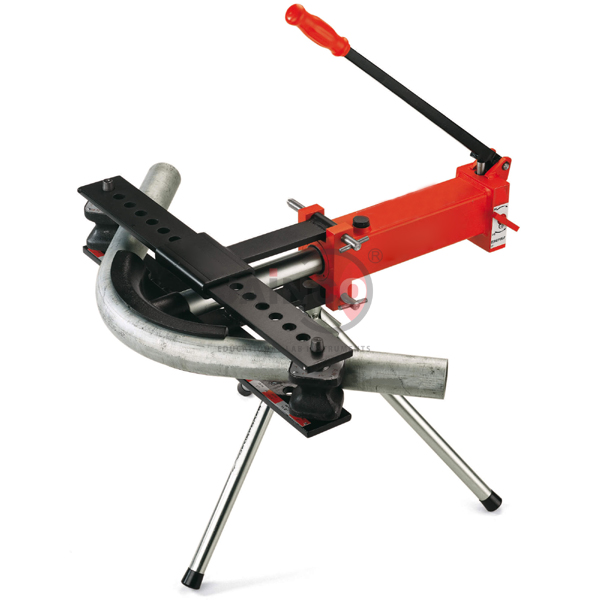

The hydraulic pipe bending machine is a hand-operated hydraulic bender listed in 9, 19 and 21 ton sizes, bending pipe with formers from 1/2 inch up to 4 inches. Maximum strokes are 250, 320 and 370 mm, crimp ranges run from 21.3 mm up to 108 mm and pipe wall thickness from 2.75 to 6 mm, with weights of 53, 117 and 200 kg (SKU JA-SWES-8750).
Specifications
Listed specification (9 t / 19 t / 21 t):
| Product | Hydraulic Pipe Bending Machine |
| SKU | JA-SWES-8750 |
| Maximum stroke | 250 / 320 / 370 mm |
| Crimp range | 21.3-60 / 21.3-88.5 / 21.3-108 mm |
| Bending formers | 1/2 to 2 inch / 1/2 to 3 inch / 1/2 to 4 inch |
| Pipe wall thickness | 2.75-4.5 / 2.75-5 / 2.75-6 mm |
| Size (cm) | 73 x 32 x 20 / 93 x 40 x 21 / 118 x 46 x 23 |
| Weight (approx.) | 53 / 117 / 200 kg |
Scope of supply and ordering
The listing covers one hydraulic pipe bending machine in the capacity you select, supplied by JaincoLab. The number of units, the packing and the dispatch time are confirmed on the quotation.
Frequently asked questions
Which capacities are listed?
9, 19 and 21 ton versions.
What pipe sizes can be bent?
Formers from 1/2 inch up to 2, 3 or 4 inches, depending on the version.
