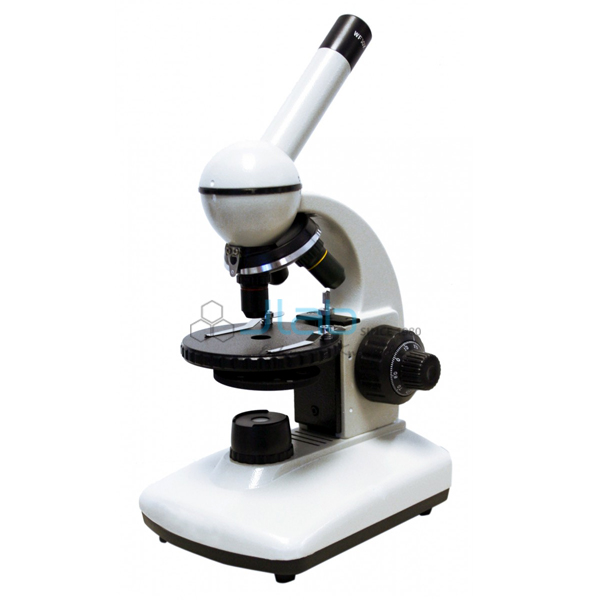

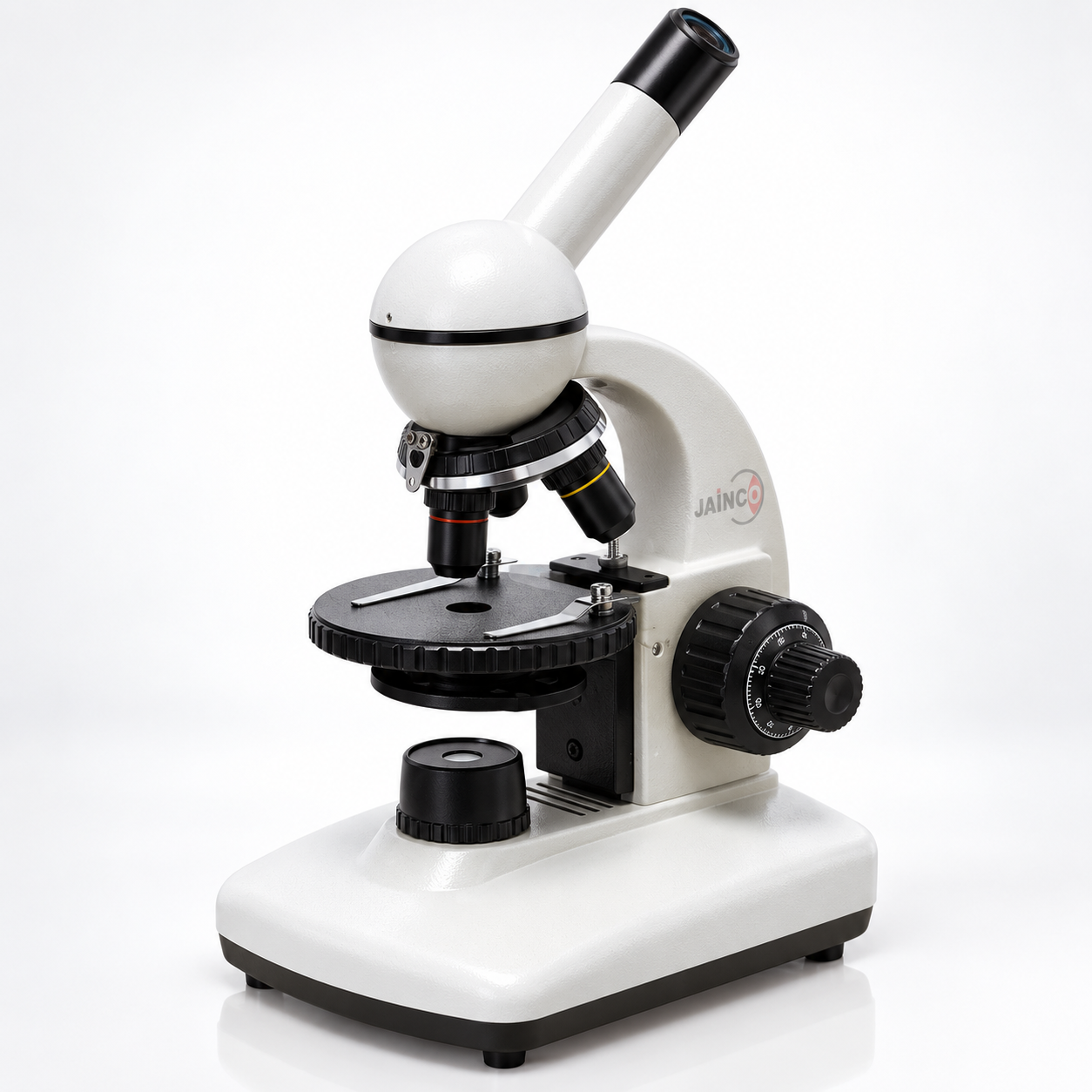

Monocular Coaxial Focusing Beginner Microscope Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8049
The Monocular Coaxial Focusing Beginner Microscope (SKU JA-M-8049) is a first compound microscope for school students, supplied by JaincoLab. A lock-on WF10x eyepiece with pointer and three achromatic objectives give 40x, 100x and 400x, and coaxial coarse and fine focusing with a slip clutch and safety rack stop protects slides and gears. It has a cast metal frame and LED lighting, in a corded version or a cordless version with rechargeable batteries, making it a practical beginner microscope for school laboratories.
Specifications
Listed: a monocular head inclined at 45 degrees and rotating through 360 degrees, a lock-on WF10x eyepiece with pointer, a 3-position reverse nosepiece, achromatic 4x, 10x and retractable 40x objectives, coaxial rack and pinion focusing, a 3.5 in rotating stage with clips, LED lighting and a 6-hole disc diaphragm.
| Product | Monocular Coaxial Focusing Beginner Microscope |
| SKU | JA-M-8049 |
| Head | Monocular, inclined at 45 degrees, rotates 360 degrees |
| Eyepiece | Lock-on WF10x with pointer |
| Nosepiece | 3-position reverse, positive click stops |
| Objectives | Achromatic 4x, 10x, 40xR (retractable); colour-coded, parcentred, parfocal |
| Magnification | 40x, 100x, 400x |
| Focusing | Coaxial coarse and fine; rack and pinion with slip clutch; safety rack stop |
| Stage | 3.5 in round gliding stage, 360-degree rotation, stage clips |
| Illumination | Built-in LED with on/off switch; 6-hole rotating disc diaphragm |
| Power | Corded (three-wire grounded cord) or cordless (9 V NiMH rechargeable, adapter included; up to 50 hours per 8-hour charge) |
| Size | 12 in high; base 6.5 x 5.25 in; metal construction |
Applications of the beginner microscope in schools
The microscope suits school biology classes where students first learn to prepare and view slides: the locked eyepiece and retractable 40x objective reduce damage, and the cordless version can be used on benches without power points or on field visits.
- Viewing onion peel and cheek cell slides
- Observing pond water organisms
- Middle and secondary school biology practicals
- Science clubs and home-school kits
- Field study with the cordless version
Scope of supply and ordering
One unit is one monocular beginner microscope, corded or cordless as ordered, with the listed eyepiece, objectives and LED illumination. The version, charger, dust cover, spares and quantities are confirmed on the quotation.
The quotation confirms the minimum order quantity, lead time and packing for the quantity and delivery destination you give. Orders from individual schools, bulk purchases for colleges and education programmes, and tender requirements are all supplied, with export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What magnifications does it give?
40x, 100x and 400x with the WF10x eyepiece and the 4x, 10x and 40xR objectives.
Is there a cordless version?
Yes. The cordless model runs on 9 V NiMH rechargeable batteries with a plug-in adapter; the corded model uses a grounded power cord.
How long does a charge last?
The listing gives up to 50 hours of use from a full 8-hour charge on the cordless model.
