Trinocular 5W LED Kohler Illumination Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8075

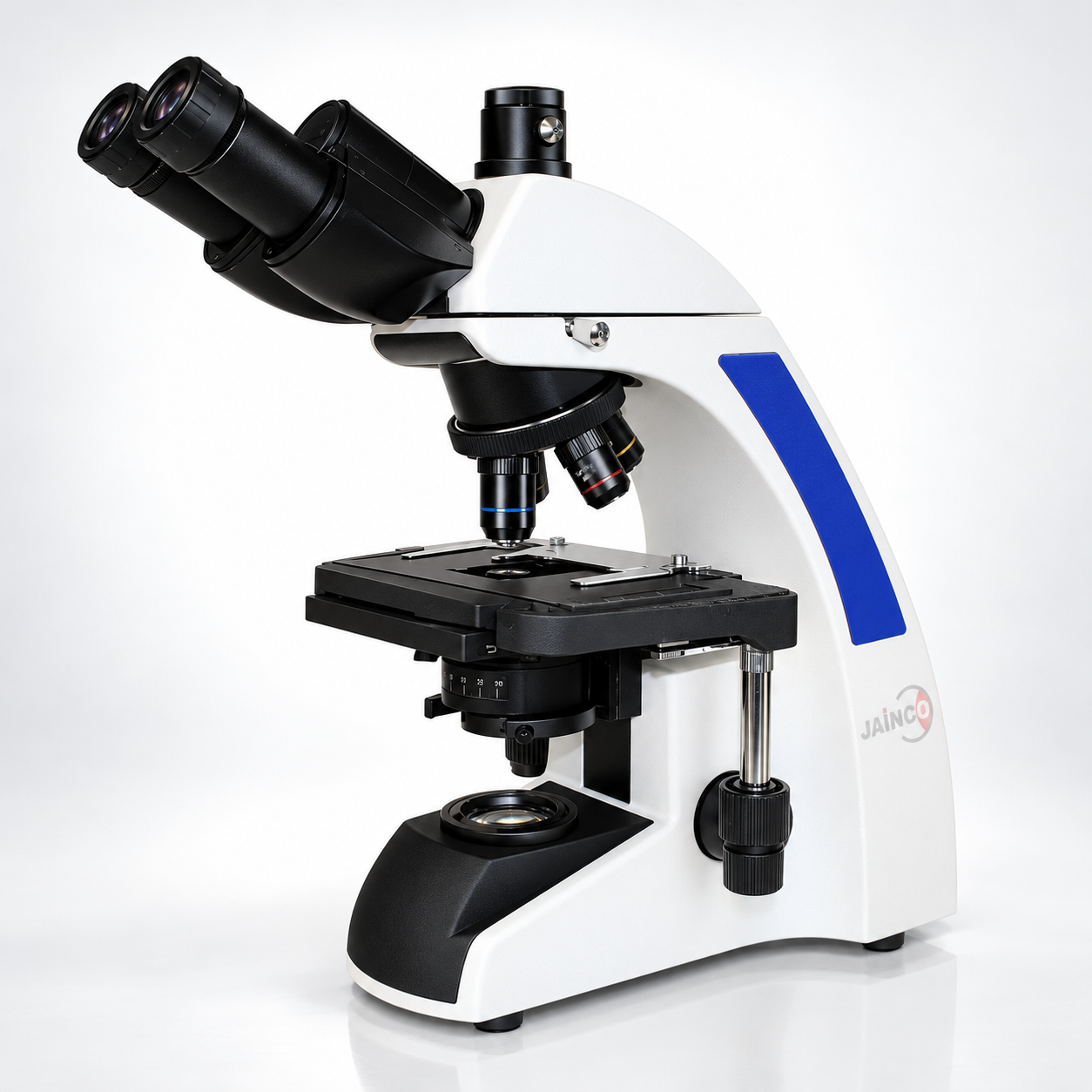

The Trinocular 5W LED Kohler Illumination microscope (SKU JA-M-8075) is a laboratory microscope supplied by JaincoLab for slide work that needs to be photographed or shown live. Its phototube splits light 50/50 between the eyepieces and the camera port, a 0.5x C-mount is included, and plan achromatic DIN objectives from 4x to 100x oil sit under 5 W LED Koehler lighting.
Specifications
For the trinocular 5W LED Kohler microscope the listing gives the values below.
| Product | Trinocular 5W LED Kohler Illumination |
| SKU | JA-M-8075 |
| Head | Trinocular, 50% visual / 50% documentation; tube length unchanged by IPD adjustment; 30 degrees, rotates 360 degrees; tubes swivel up or down; IPD 48-75 mm |
| Eyepieces | WF10x/22 mm high eyepoint with eye guards; diopter on both |
| Nosepiece | Reversed quadruple on ball bearings, internal click stops |
| Objectives | Plan achromatic DIN 4x/0.10, 10x/0.25, 40xR/0.65, 100xR/1.25 oil (160/0.17); 40xR and 100xR retractable |
| Focusing | Low coaxial knobs; 37.7 mm per coarse turn, 0.1 mm per fine turn, 1 micron graduation; range 16 mm; tension adjustment |
| Stage | 216 x 150 mm double-layer; travel 75 x 55 mm; non-extending rack; graphite surface |
| Illumination | Koehler with field diaphragm; 1.25 NA Abbe on rack and pinion; iris with graduated scale; 5 W LED, intensity control |
| Imaging | 0.5x C-mount included; 5 MP or 10 MP eyepiece camera and 8 in LCD camera available |
| Stand | Metal frame, one-piece arm and base, carrying handle, cord holder, antifungal treatment |
| Optional, not included | Dark field kit, polarising kit, 1x C-mount, reticule eyepieces |
Uses of the trinocular Koehler microscope
- Live video of slides on a computer or screen through the C-mount port
- Photomicrography of stained sections under even Koehler light
- Darkfield or polarised light work with the optional kits
- College and laboratory slide work up to 1000x
Scope of supply and ordering
The listing covers the trinocular microscope with eyepieces, four objectives and the 0.5x C-mount. Cameras, kits, quantities and delivery are itemised on the quotation.
Frequently asked questions
What does the 50/50 phototube mean?
Half of the light goes to the eyepieces and half to the camera port, so the specimen can be observed and recorded at the same time.
Is a camera included?
The 0.5x C-mount is included. A 5 MP or 10 MP digital eyepiece camera or an 8 in LCD camera is available and is quoted separately.
How does it differ from the Binocular 5W LED Kohler Illumination model?
The optics, stage and lighting are listed the same; this model adds the trinocular phototube and the 0.5x C-mount for a camera.
