Pulse Position Modulation and Demodulation Manufacturer,Supplier and Exporter in India
Product Code : JA-TKFCL-1202

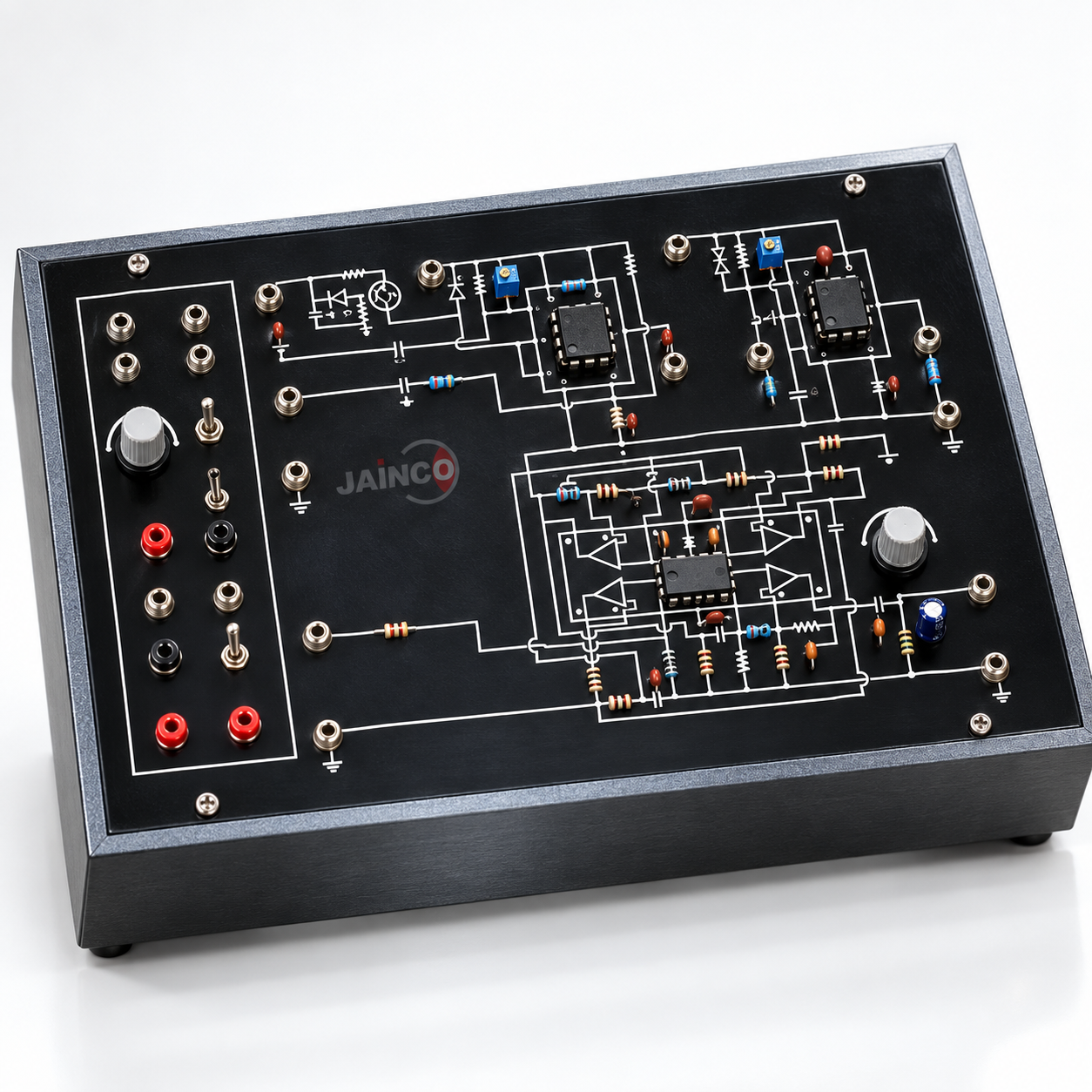

The Pulse Position Modulation and Demodulation unit (SKU JA-TKFCL-1202) shows how the timing of each pulse in a train is shifted by a message signal, and how the message is recovered. An IC 555 based oscillator provides the 10 kHz pulse carrier and a sine wave oscillator provides the 100 Hz message. A 5 V DC regulated supply rated 150 mA is built in. The circuit diagram is printed on the panel, with components mounted behind it and connections at 4 mm sockets.
Specifications
Oscillators, supply and panel as listed:
| Product | Pulse Position Modulation and Demodulation |
| SKU | JA-TKFCL-1202 |
| Carrier oscillator | IC 555 based, 10 kHz |
| AF oscillator | Sine wave, 100 Hz |
| Power supply | 5 V DC, 150 mA, regulated |
| Panel | Circuit printed, components behind the panel, 4 mm sockets |
Scope of supply and ordering
The unit is quoted with its oscillators and supply; a CRO, quantities and packing are set out on the quotation.
Frequently asked questions
What carrier and message frequencies does the PPM unit use?
A 10 kHz pulse carrier from an IC 555 oscillator and a 100 Hz sine wave message.
How are connections made?
Through 4 mm sockets on the printed front panel.
