Self and Mutual Inductance Coils Manufacturer,Supplier and Exporter in India
Product Code : JA-SI-8024

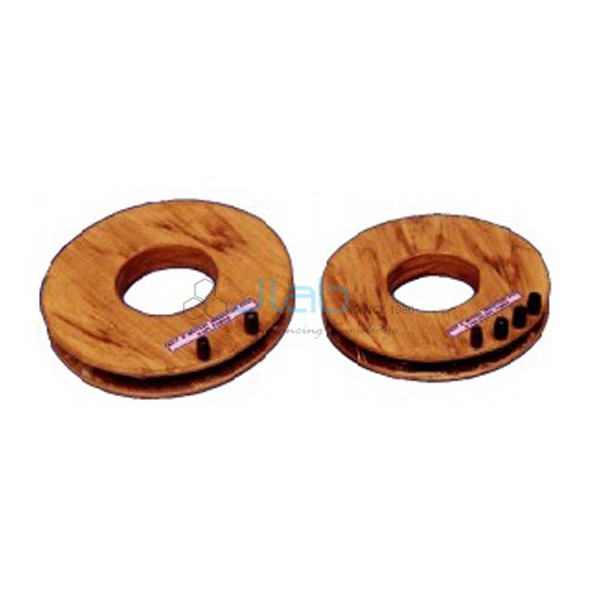

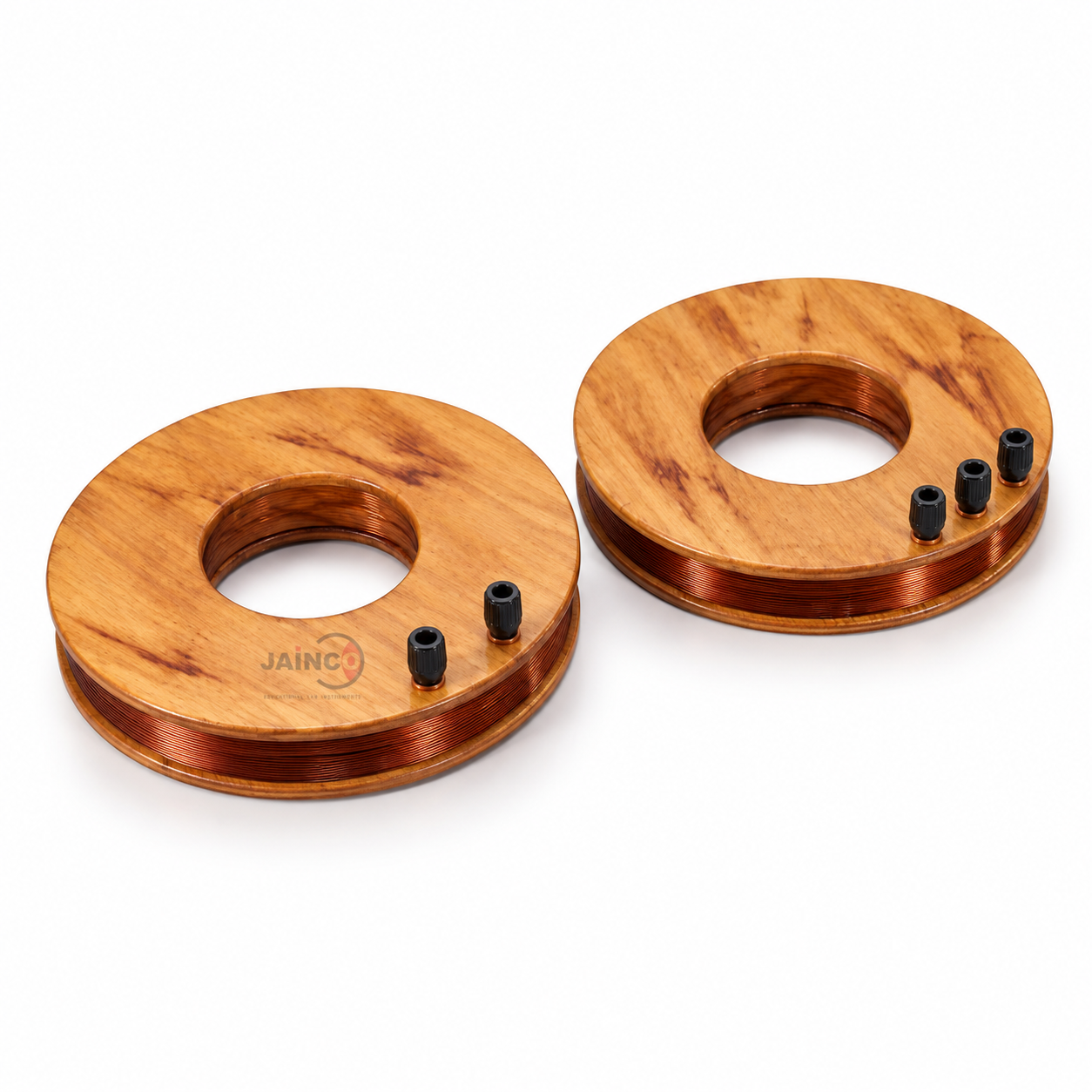

The Self and Mutual Inductance Coils (SKU JA-SI-8024) are used in physics practicals on electromagnetic induction, where the self inductance of a coil and the mutual inductance between two coils are measured. The standard model has a primary of 3000 turns and a secondary tapped or wound for 1000, 2000 and 3000 turns. The listing also gives two smaller versions with a 500-turn primary on wooden bobbins.
Specifications
The listing gives three versions:
| Product | Self and Mutual Inductance Coils |
| SKU | JA-SI-8024 |
| Standard model | Primary 3000 turns; secondary 1000, 2000 and 3000 turns |
| Version 1 | Primary 500 turns; secondary 100, 250 and 500 turns; wooden bobbins, 25 mm diameter per pair |
| Version 2 | Primary 500 turns; secondary 500 turns; wooden bobbin (diameter listed as 25 cm) |
Scope of supply and ordering
State the version required when ordering; quantities and packing are confirmed on the quotation.
Frequently asked questions
What turns does the standard model have?
A 3000-turn primary and a secondary of 1000, 2000 and 3000 turns.
Are smaller coil sets available?
Yes, two versions with a 500-turn primary on wooden bobbins are also listed.
Related products
Inductance apparatus is listed in our scientific instrument range.
Request a quote
For the self and mutual inductance coils, send the version and quantity through our contact page. For tender or project supply, see our tenders page.
