Semiconductor Diode and PN Junction Diode Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-SCD-1082

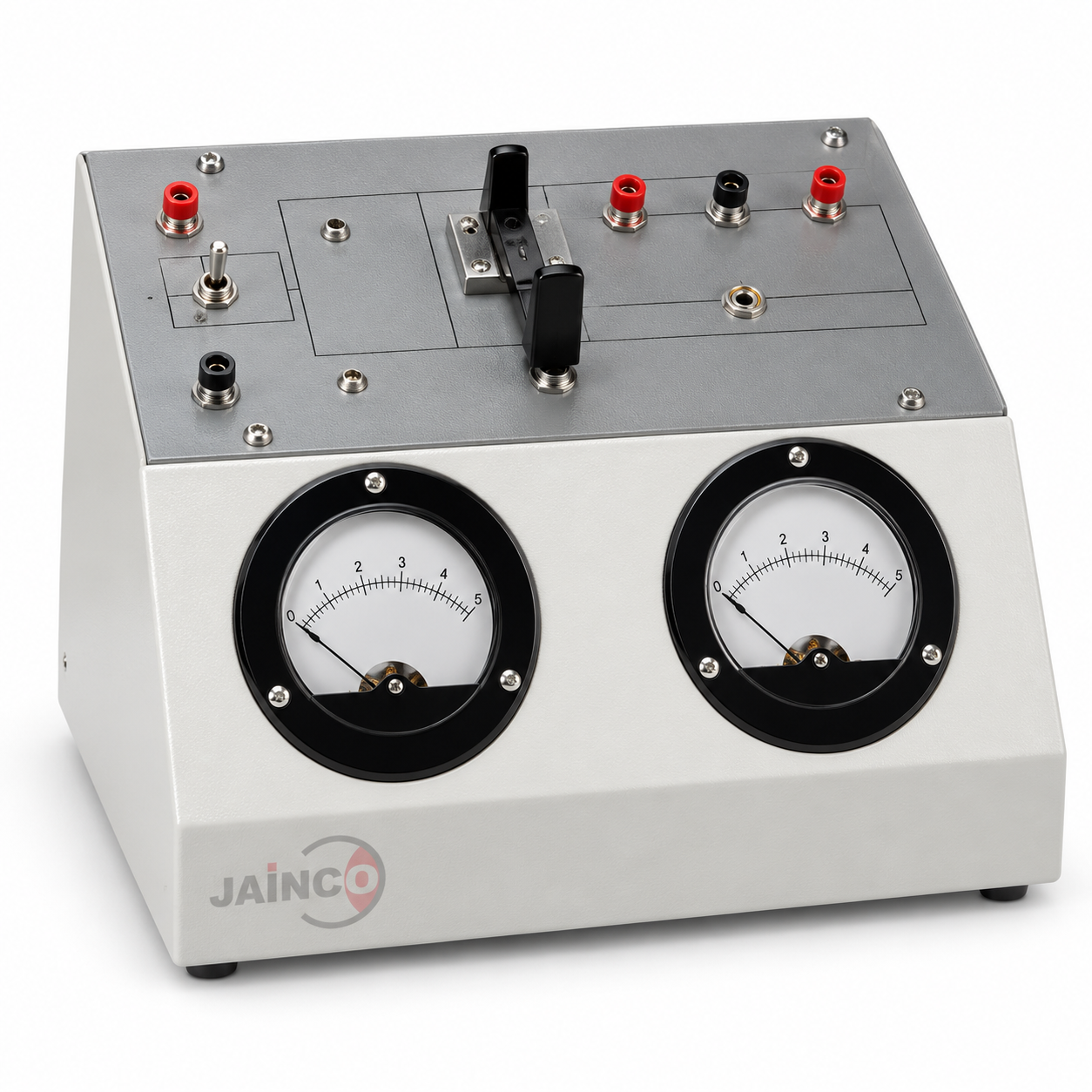

The Semiconductor Diode and PN Junction Diode Apparatus (SKU JA-SCD-1082) is used to study the forward and reverse characteristics of a PN junction diode. For the forward curve a 0-1 V DC, 200 mA supply is used, and for the reverse curve a 0-50 V DC, 2 mA supply; two meters read voltage and current. The diodes are mounted with their connections brought out to terminals.
Specifications
The listing gives these details:
| Product | Semiconductor Diode and PN Junction Diode Apparatus |
| SKU | JA-SCD-1082 |
| DC supply 1 | 0-50 V, 2 mA |
| DC supply 2 | 0-1 V, 200 mA |
| Meters | Two, voltage and current |
| Diodes | PN junction, mounted, connections on terminals |
| Size | 10 x 8 x 4 in |
Scope of supply and ordering
One apparatus per order line. Quantities and packing are confirmed on the quotation.
Frequently asked questions
What does the PN junction diode apparatus study?
The forward and reverse characteristics of a PN junction diode.
Which supplies are provided?
0-50 V DC at 2 mA and 0-1 V DC at 200 mA.
