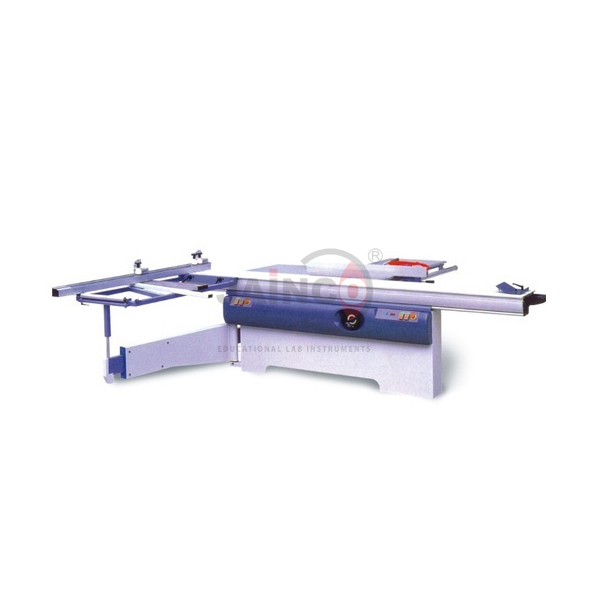

Sliding Panel Saw Machine Manufacturer,Supplier and Exporter in India
Product Code : JA-WWPT-8705
The sliding panel saw machine cuts large boards and panels to size, with a listed cut length of 3150 mm. Its main saw runs on a 30 mm bore from a 4 kW motor at 5800 rpm, and a 120 mm scoring saw on a 20 mm bore is driven by a 0.75 kW motor at 7700 rpm; net weight is 900 kg (SKU JA-WWPT-8705).
Specifications
Listed specification:
| Product | Sliding Panel Saw Machine |
| SKU | JA-WWPT-8705 |
| Cut length | 3150 mm |
| Main saw bore | 30 mm |
| Main saw motor | 4 kW, 5800 rpm |
| Scoring saw | 120 mm diameter x 20 mm bore |
| Scoring saw motor | 0.75 kW, 7700 rpm |
| Net weight | 900 kg |
| Main saw diameter | Confirmed on the quotation |
Scope of supply and ordering
The listing covers one sliding panel saw machine, supplied by JaincoLab. Order quantity, packing and delivery time are set out on each quotation.
Frequently asked questions
What cut length does it offer?
3150 mm.
Does it have a scoring saw?
Yes, a 120 mm scoring saw on a 20 mm bore, driven by a 0.75 kW motor at 7700 rpm.
Related products
See the wood workshop machine range for other items in this family.
Request a quote
To order the Sliding Panel Saw Machine, send the SKU JA-WWPT-8705, the quantity and the delivery destination through the JaincoLab contact page. Tender and project enquiries can be sent through the tenders page.
