Spindle Moulder Machine Manufacturer,Supplier and Exporter in India
Product Code : JA-WWPT-8698

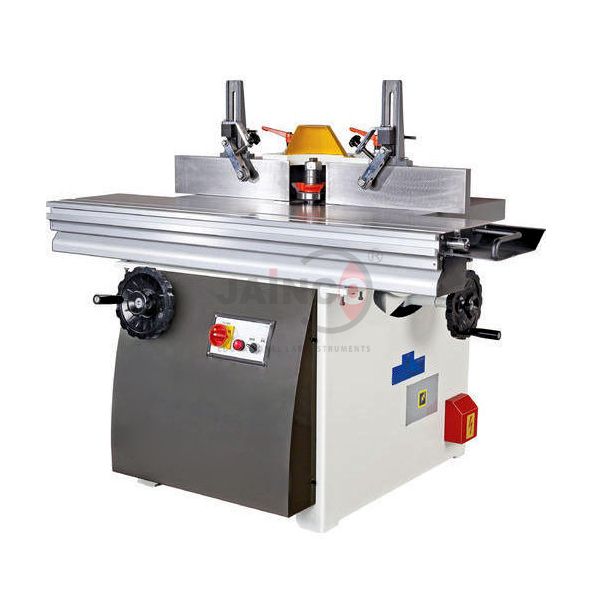

The spindle moulder machine shapes mouldings, rebates and profiles on timber in joinery training. It has a 30 mm spindle that rises and falls 100 mm and tilts to 45°, spindle speeds of 5000 and 7000 rpm from a 5 HP motor, an 865 x 548 mm fixed table with a 1300 x 315 mm sliding table, and a 100 mm dust extraction port (SKU JA-WWPT-8698).
Specifications
Listed specification:
| Product | Spindle Moulder Machine |
| SKU | JA-WWPT-8698 |
| Spindle diameter | 30 mm |
| Spindle up/down movement | 100 mm |
| Spindle tilt | 45° |
| Spindle speeds | 5000 and 7000 rpm |
| Motor | 5 HP |
| Fixed table | 865 x 548 mm |
| Sliding table | 1300 x 315 mm |
| Maximum moulding block width | 100 mm |
| Dust extraction port | 100 mm diameter |
| Machine dimensions (L x B x H) | 1550 x 1200 x 1200 mm |
| Weight | 400 kg |
Scope of supply and ordering
The listing covers one spindle moulder machine, supplied by JaincoLab; cutter blocks are quoted separately. Packing, lead time and the quantity per order are agreed on the quotation.
Frequently asked questions
Can the spindle be tilted?
Yes, up to 45°, and it moves 100 mm up and down.
What spindle speeds are available?
5000 and 7000 rpm.
How big is the machine?
1550 x 1200 x 1200 mm (L x B x H), weighing 400 kg.
