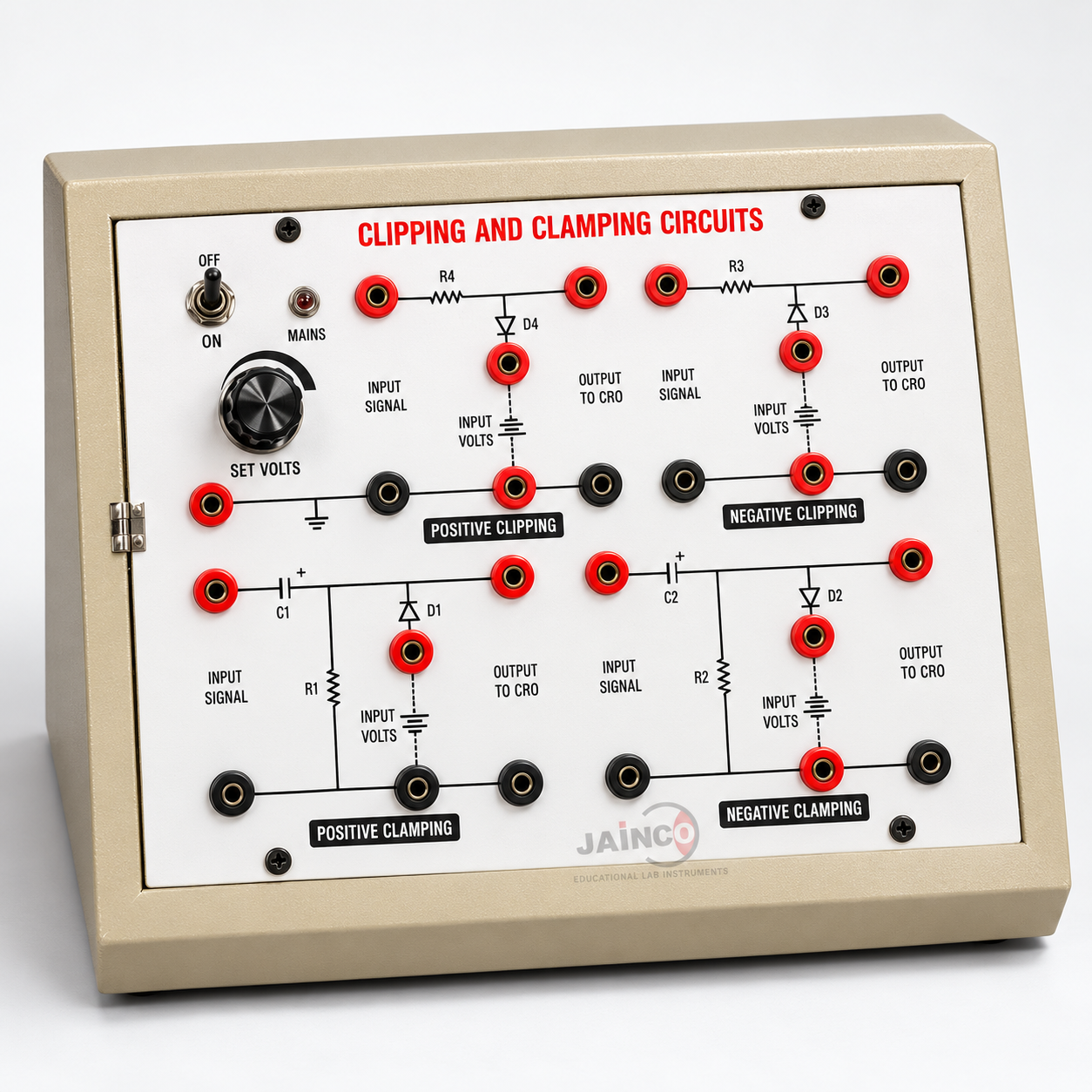

Study of Operational Amplifier as Clipping and Clamping Circuit Manufacturer,Supplier and Exporter in India
Product Code : JA-COA-1143
The Study of Operational Amplifier as Clipping and Clamping Circuit apparatus (SKU JA-COA-1143) covers two wave-shaping circuits built with an op-amp. The clipping circuit, also called a limiter, removes part of the applied waveform above or below a set level. The clamping circuit shifts the whole signal so that its positive or negative peak sits at a chosen DC level. Supply, meter and component values are not in the listing and are stated on the quotation.
Specifications
The listing describes the two circuits:
| Product | Study of Operational Amplifier as Clipping and Clamping Circuit |
| SKU | JA-COA-1143 |
| Clipping circuit | Removes (clips) part of the applied waveform; also called a limiter |
| Clamping circuit | Places the positive or negative peak of a signal at a desired DC level |
| Supply, meters and components | Confirmed on the quotation |
Scope of supply and ordering
Circuit values, accessories, quantities and packing are confirmed on the quotation.
Frequently asked questions
What does the clipping circuit do?
It removes part of the applied waveform above or below a set level, acting as a limiter.
What does the clamping circuit do?
It shifts the signal so that its positive or negative peak sits at a desired DC level.
