Verification of Maximum Power Transfer Theorem in DC Circuits Manufacturer,Supplier and Exporter in India
Product Code : JA-VONT-1133

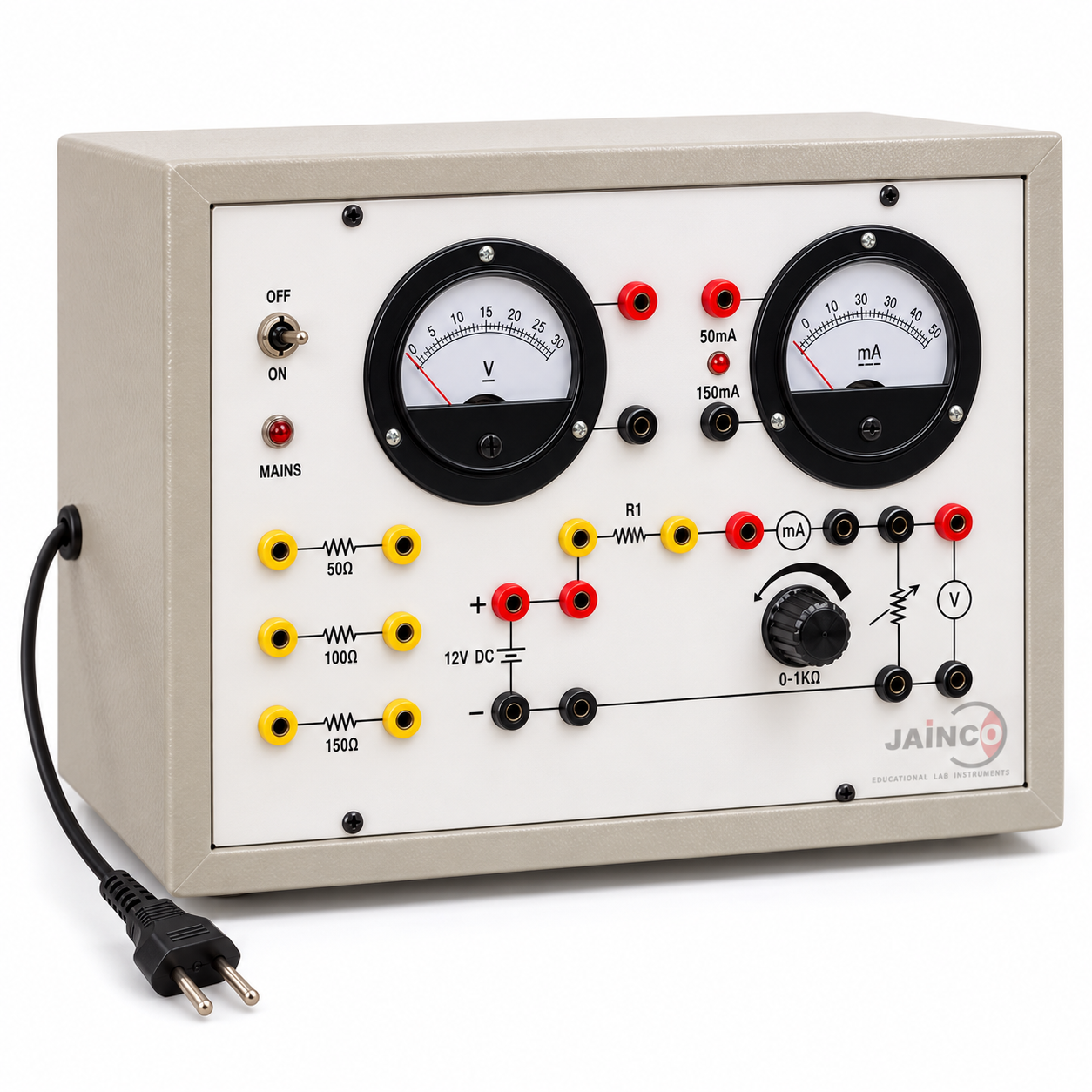

The Verification of Maximum Power Transfer Theorem in DC Circuits apparatus (SKU JA-VONT-1133) shows that a source delivers the most power to a load when the load resistance equals the internal resistance of the network. A potentiometer acts as the variable load, and two moving coil meters read load voltage and current as it is adjusted. One fixed-output DC power supply of 12 V at 300 mA is built in, with the circuit printed on the front panel.
Specifications
Supply, load and meters from the listing:
| Product | Verification of Maximum Power Transfer Theorem in DC Circuits |
| SKU | JA-VONT-1133 |
| Theorem | Maximum power transfer, DC circuits |
| Power supply | One fixed-output DC, 12 V at 300 mA |
| Meters | Two moving coil meters |
| Variable load | Potentiometer |
| Panel | Circuit diagram printed on the front; parts on terminals |
Scope of supply and ordering
Supplied as one unit with supply, meters and potentiometer load. Quantities and packing are confirmed on the quotation.
Frequently asked questions
How is the load varied?
With a potentiometer, while two moving coil meters read the load voltage and current.
What supply is built in?
A fixed-output DC supply of 12 V at 300 mA.
