8-Bit Multiplying Digital to Analog Converter Manufacturer,Supplier and Exporter in India
Product Code : JA-DET-1522

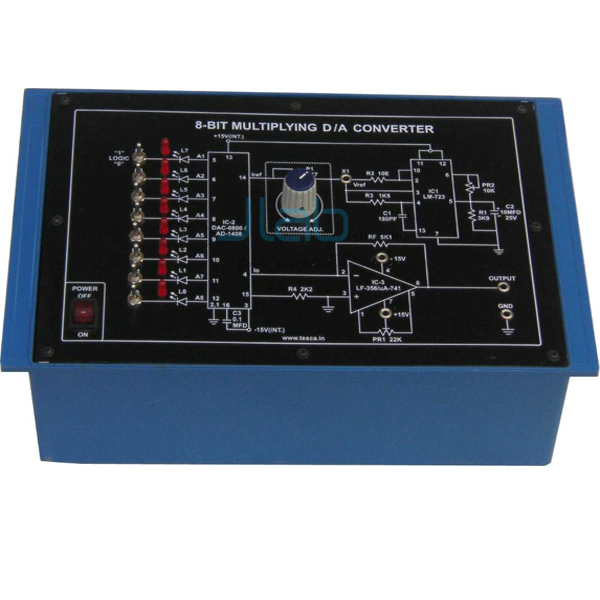

The 8-bit multiplying digital to analog converter trainer uses the AD1408 to produce an analog output that represents the product of an 8-bit digital input and a reference source. Switches set the input data, LEDs show the binary input, and a 741 op-amp, a 723 voltage regulator and ±15 V and +5 V regulated supplies are built in (SKU JA-DET-1522).
Specifications
Listed parts of the multiplying DAC board:
| Product | 8-Bit Multiplying Digital to Analog Converter |
| SKU | JA-DET-1522 |
| DAC IC | AD1408, 8-bit |
| Op-amp | IC 741 |
| Voltage regulator | IC 723 |
| DC supplies | ±15 V DC and +5 V DC at 50 mA, IC regulated, internally connected |
| Inputs | SPDT switches for logic selection / input data |
| Indicators | LEDs for status and binary data input |
| Other apparatus required | Digital multimeter, 3¾ digit |
Scope of supply and ordering
The listing covers the multiplying DAC board with operating instructions, supplied by JaincoLab; a digital multimeter is listed as other apparatus required. Packing, lead time and the quantity per order are agreed on the quotation.
Frequently asked questions
Which DAC IC does the board use?
The AD1408 8-bit digital to analog converter.
What does multiplying mean on this board?
The analog output represents the product of the 8-bit digital input and the reference source.
What else is needed?
A 3¾ digit digital multimeter.
