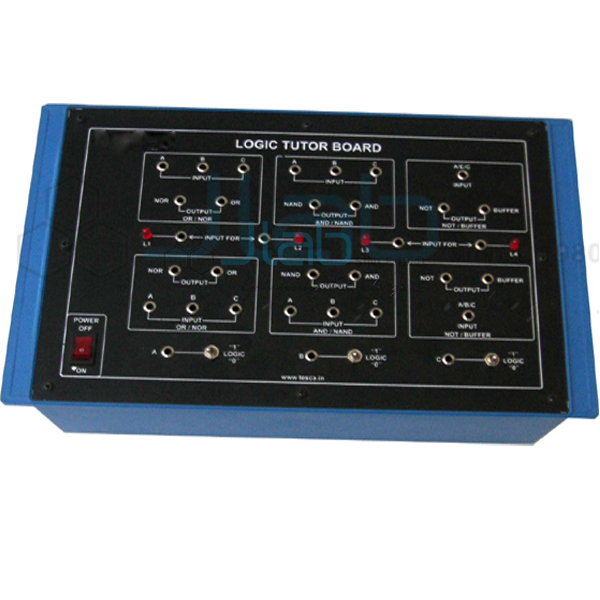

Logic Training Board Manufacturer,Supplier and Exporter in India
Product Code : JA-DET-1513
The logic training board is used to study simple logic functions and the theorems of Boolean algebra, comparing truth tables with experimental results. It has 3-input AND/NAND and OR/NOR gates built from NAND and NOR gates with inverters, NOT gates arranged to give buffer outputs, logic selection switches and a ±5 V DC, 500 mA regulated supply (SKU JA-DET-1513).
Specifications
Built-in parts listed for the logic board:
| Product | Logic Training Board |
| SKU | JA-DET-1513 |
| DC supply | ±5 V DC at 500 mA, IC regulated |
| AND/NAND | Two 3-input NAND gates followed by an inverter, giving 3-input AND/NAND gates |
| OR/NOR | Two 3-input NOR gates followed by an inverter, giving 3-input OR/NOR gates |
| NOT/buffer | Two NOT gates followed by another NOT gate, giving buffer outputs |
| Inputs | Switches for logic selection |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
Experiments
The listed objects are:
- OR/NOR function
- AND/NAND function
- NOT/buffer function
- Simple functions of several variables
- Distributive, commutative and associative laws
- De Morgan's theorem
Scope of supply and ordering
The listing covers the logic training board with patch cords and operating instructions, supplied by JaincoLab. Order quantity, packing and delivery time are set out on each quotation.
Frequently asked questions
Which Boolean laws can be verified?
The distributive, commutative and associative laws and De Morgan's theorem.
How are the AND and OR functions formed?
Two 3-input NAND gates followed by an inverter give AND/NAND outputs, and two 3-input NOR gates followed by an inverter give OR/NOR outputs.
What supply is built in?
A ±5 V DC, 500 mA IC-regulated supply.
