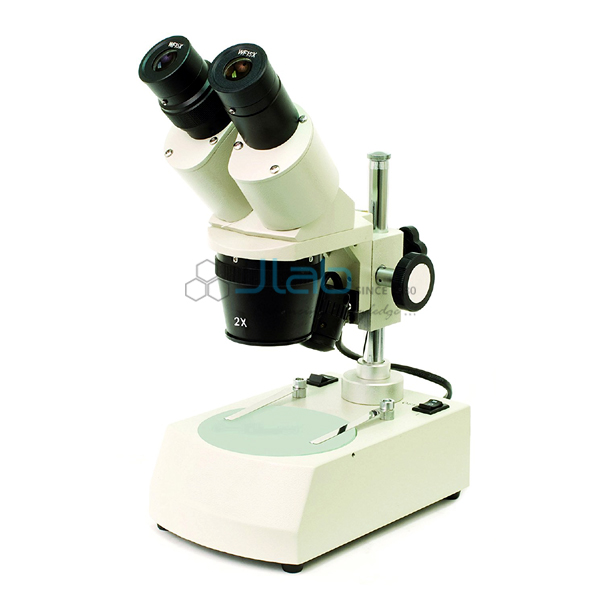

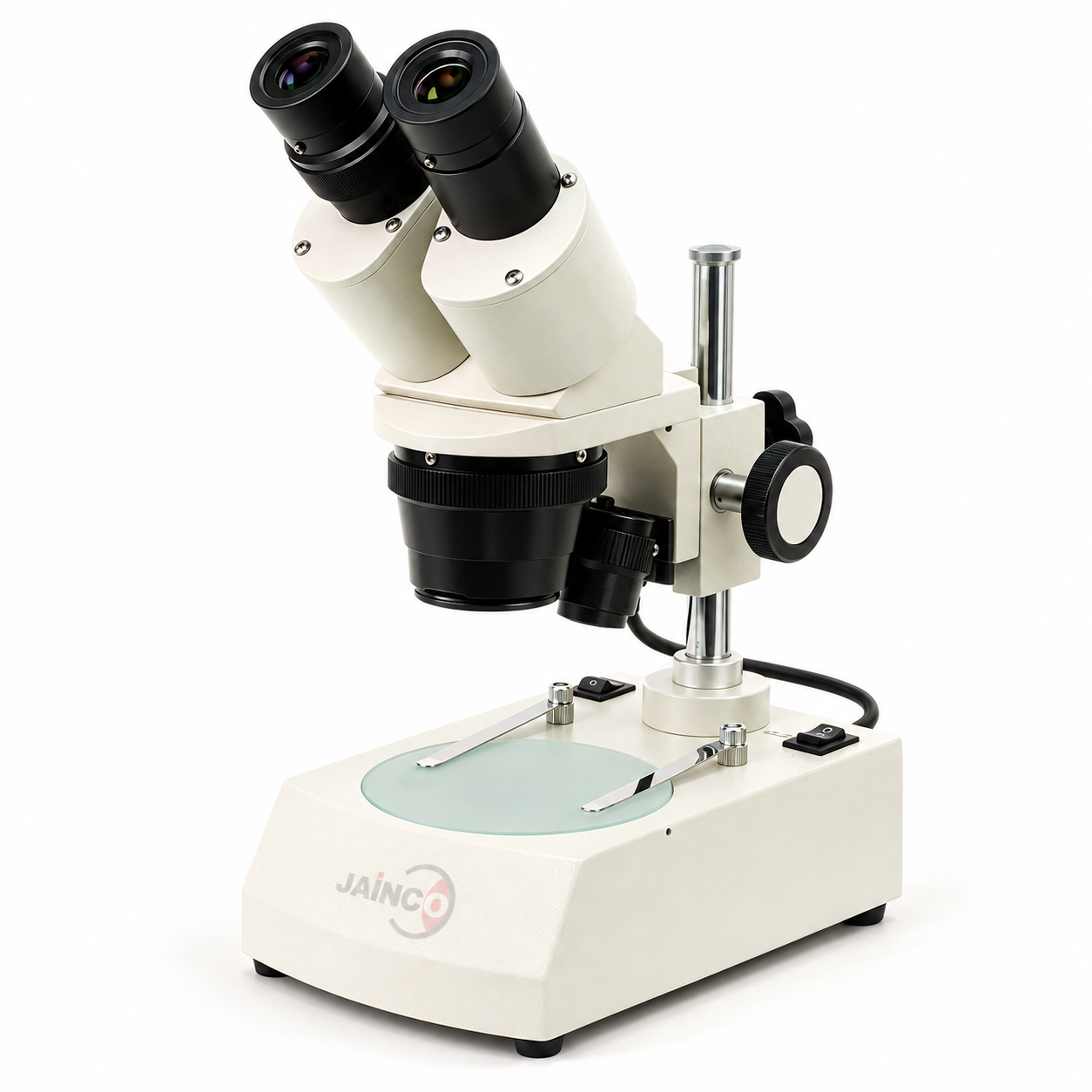

Binocular Stereo Microscope Frosted Glass Plate 2x and 4x Objective Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8099
The Binocular Stereo Microscope Frosted Glass Plate 2x and 4x Objective (SKU JA-M-8099) is the higher-power version of the cordless turret stereo microscope supplied by JaincoLab. With 2x and 4x objectives and WF10x eyepieces it gives 20x and 40x at a 45 mm working distance, which suits finer dissection and close study of mineral surfaces, and it runs on a rechargeable battery.
Specifications
Values listed for the 2x/4x model follow.
| Product | Binocular Stereo Microscope Frosted Glass Plate 2x and 4x Objective |
| SKU | JA-M-8099 |
| Head | Binocular, inclined 45 degrees; diopter on one tube; IPD 51-75 mm |
| Eyepieces | WF10x |
| Objectives | 2x and 4x on a turret; parfocal and parcentred |
| Magnification | 20x and 40x |
| Working distance | 45 mm |
| Focusing | Rack and pinion with safety stop and tension adjustment |
| Stage | 95 mm frosted glass plate and 95 mm reversible black/white plate with clips |
| Illumination | LED; dual switch for top, bottom or both |
| Power | Rechargeable battery (charger listed as 110 V) |
| Body | Cast aluminium in grey enamel |
| Packing | Fitted foam box, dust cover, instruction manual |
Uses of the 20x and 40x stereo microscope
- Fine dissection of insects and flower parts at 20x
- Crystal faces and grain boundaries on mineral samples at 40x
- Small parts inspection in technical classes
- Outdoor sessions without mains power
Scope of supply and ordering
The listing covers one microscope with both stage plates, packed in a fitted foam box with dust cover and manual. The charger version, number of units and delivery are agreed on the quotation.
Frequently asked questions
How does it differ from the 1x and 3x objective model?
It carries 2x and 4x objectives for 20x and 40x instead of 10x and 30x, and its working distance is 45 mm instead of 55 mm.
Which lighting options are there?
The dual switch gives top light for opaque objects, bottom light through the frosted glass plate, or both together.
Related products
- Binocular Stereo Microscope Frosted Glass Plate 1x and 3x Objective
- Dual Power Binocular Stereo Microscope 2X and 4X Objectives
- Binocular Stereo Microscope WF 10x and 20x Eyepieces
- LED Illumination Dual Power Binocular Stereo Microscope
Compare the stereo options in the microscopes range.
Request a quote
For a quotation on the 2x and 4x objective stereo microscope, send the quantity and destination via the contact page. Institutions and contractors buying under a tender can also reach us via the tenders page.
