Dual Trace Oscilloscope Manufacturer,Supplier and Exporter in India
Product Code : JA-TAMI-1028

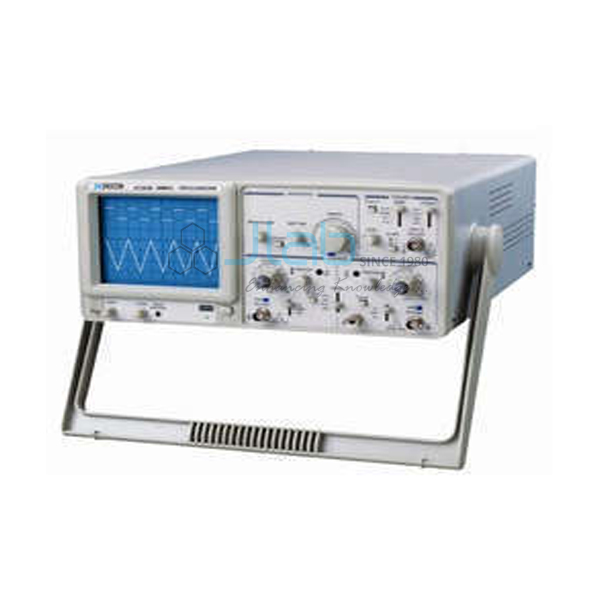

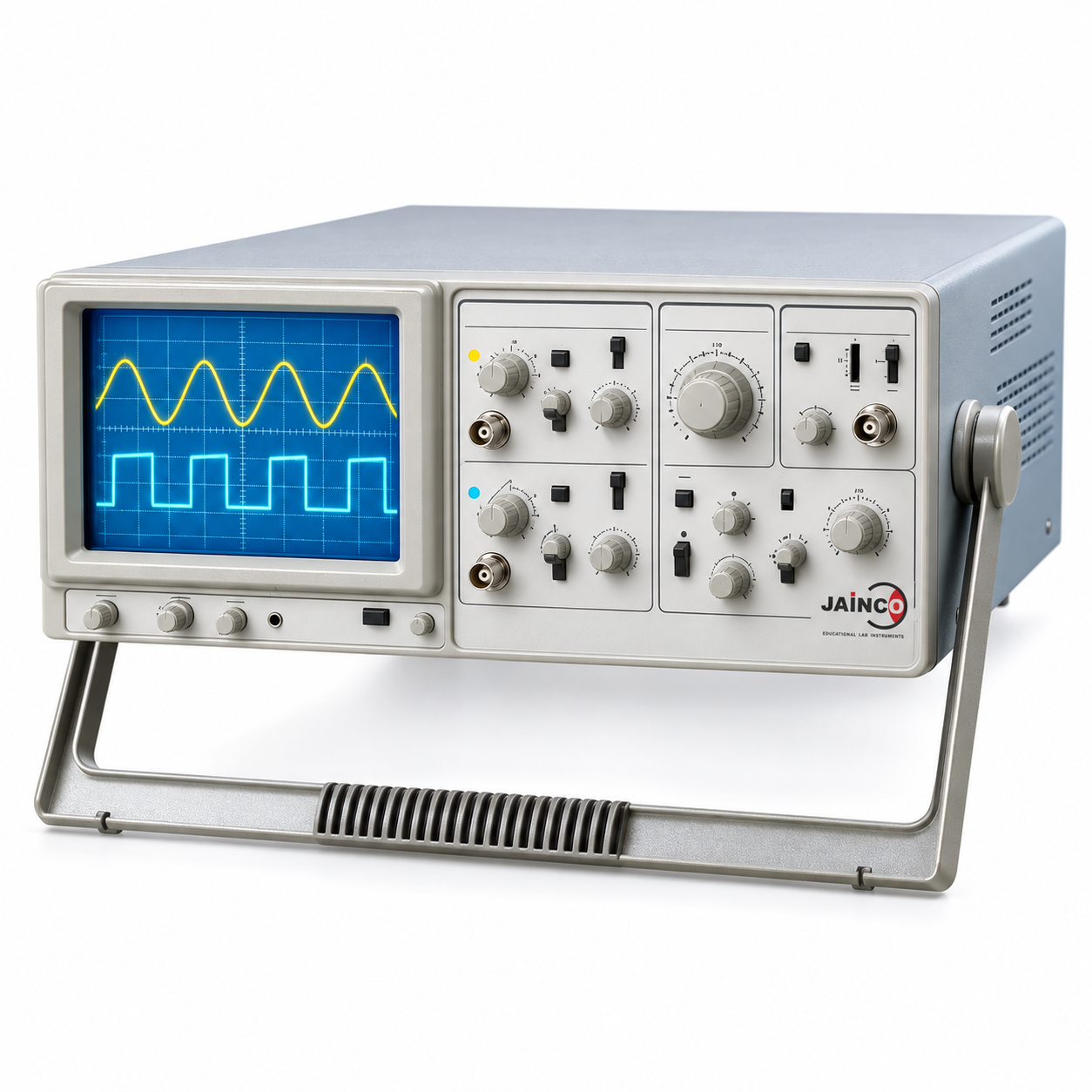

The Dual Trace Oscilloscope (SKU JA-TAMI-1028) supplied by JaincoLab is a 20 MHz, two-channel instrument for students in technical courses as well as for professional bench work. Two signals can be viewed together in Alt or Chop mode, which makes phase and timing comparisons straightforward. Deflection runs from 5 mV to 10 V per division, with a x5 magnifier, on an 80 x 100 mm cathode ray tube.
Specifications
Channel, sweep and trigger figures from the listing:
| Product | Dual Trace Oscilloscope |
| SKU | JA-TAMI-1028 |
| Bandwidth | DC to 20 MHz |
| Channels and modes | CH1, CH2, Alt and Chop |
| Deflection factor | 5 mV/div to 10 V/div, with x5 magnifier |
| Sweep factor | 0.2 s/div to 0.1 microsecond/div, within 5% |
| Fastest sweep with x5 magnifier | 20 ns/div |
| Trigger source | Int, Alt, Line, Ext and TV |
| Sweep mode | Auto, triggered and single |
| Display | 80 x 100 mm cathode ray tube |
Where it is used
- Comparing input and output waveforms of amplifiers and filters
- Measuring phase difference between two signals
- Timing work on digital circuits with the fast sweep ranges
- Viewing TV and video signals with the TV trigger
Scope of supply and ordering
Each order line covers one oscilloscope. Probes, quantities and packing are stated on the quotation.
Frequently asked questions
How many channels does the Dual Trace Oscilloscope have?
Two, CH1 and CH2, shown in Alt or Chop mode.
What is its bandwidth?
DC to 20 MHz.
Which trigger sources can be used?
Internal, Alt, Line, External and TV.
What is the fastest sweep?
0.1 microsecond per division, or 20 ns per division with the x5 magnifier.
