Hand Vacuum Pump with Pressure Gauge Manufacturer,Supplier and Exporter in India
Product Code : JA-SI-6534

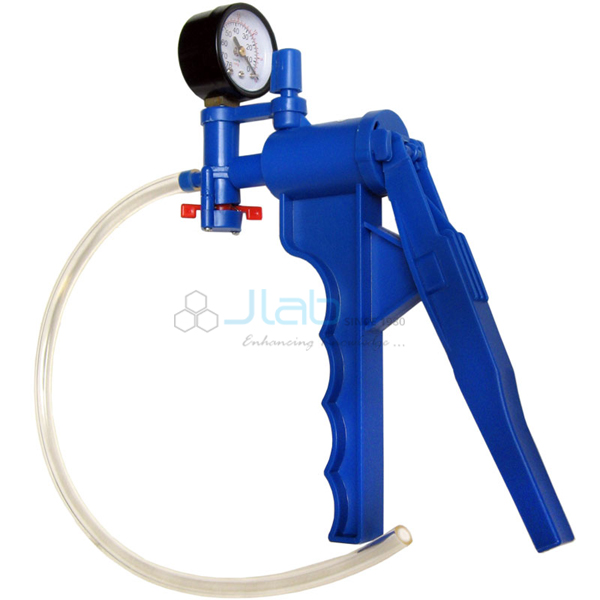

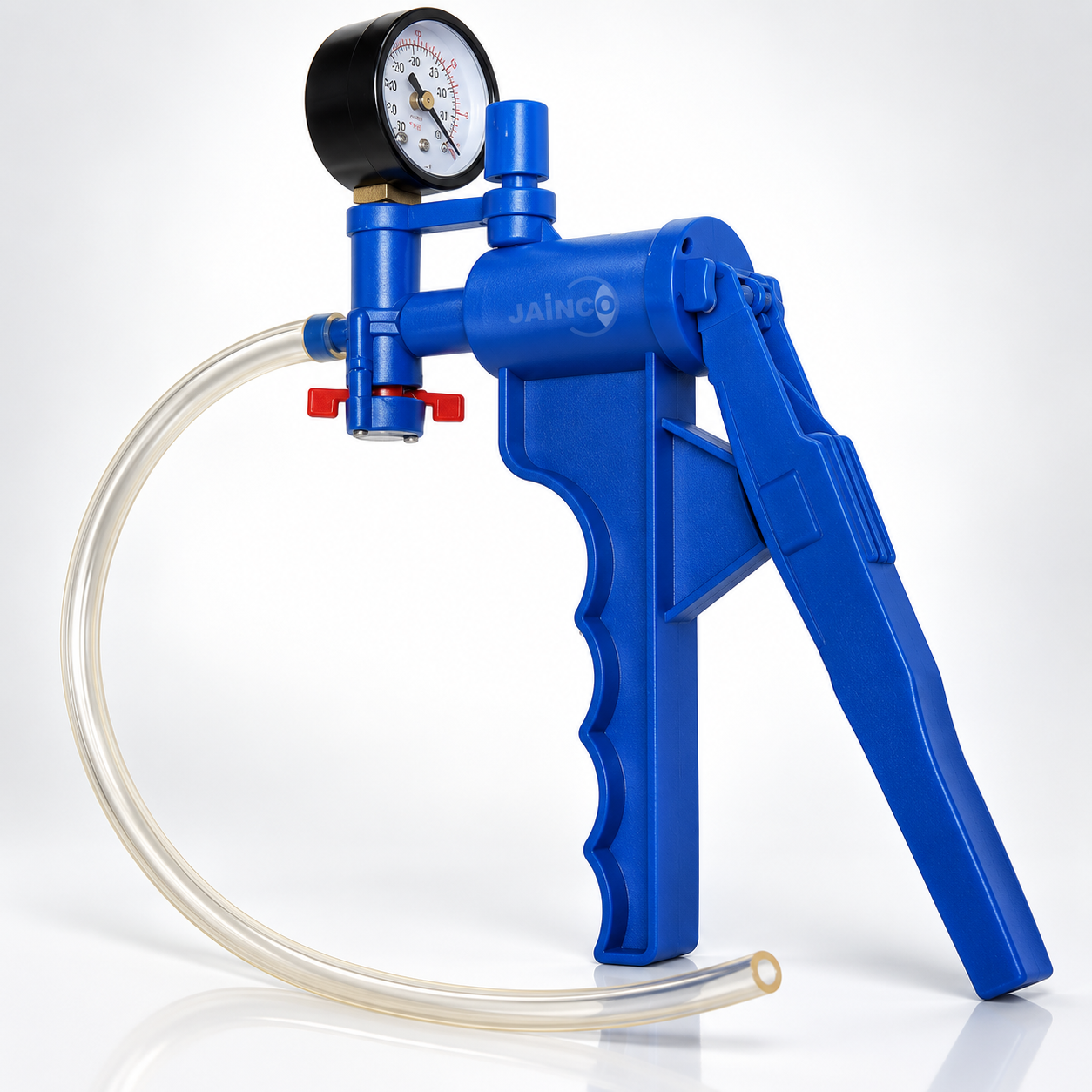

The Hand Vacuum Pump with Pressure Gauge (SKU JA-SI-6534) is a lightweight, hand-operated pump for light-duty vacuum filtration and liquid transfer. Each stroke of the handle moves about 15 ml, the attached gauge shows the vacuum reached, and an elastic valve releases the vacuum without disconnecting the pump from the line. A 1/4 inch ID air line is supplied.
Specifications
Values as listed:
| Product | Hand Vacuum Pump with Pressure Gauge |
| SKU | JA-SI-6534 |
| Body | Lightweight plastic (listed as polychloroethylene) |
| Pumping rate | About 15 ml per stroke |
| Vacuum | Up to 50 mm Hg, as listed |
| Gauge | Attached, shows vacuum level |
| Release | Elastic valve, no need to disconnect |
| Air line | 1/4 inch ID, supplied |
Scope of supply and ordering
The pump comes with its gauge and air line; quantities and packing are confirmed on the quotation.
Frequently asked questions
How much air does the hand vacuum pump move per stroke?
About 15 ml per stroke.
How is the vacuum released?
With an elastic valve, without separating the pump from the line.
