Inverted Microscope Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8147

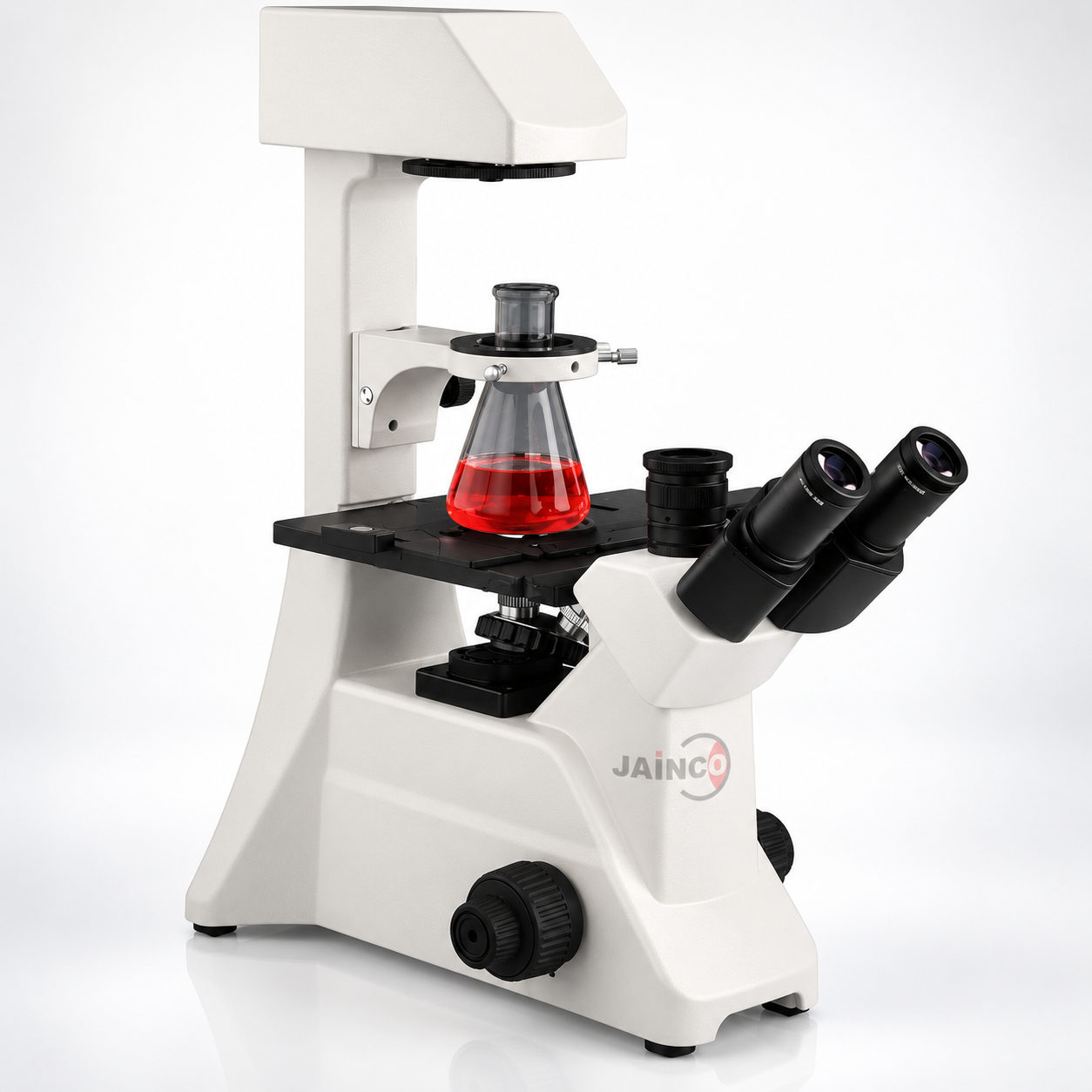

The Inverted Microscope (SKU JA-M-8147) is a trinocular inverted microscope supplied by JaincoLab for routine viewing of cell cultures in college, university and research laboratories. Long working distance plan objectives look up through the base of 35 mm and 65 mm culture dishes, a 25x phase objective with relief phase condenser shows unstained cells, and the photo port takes an add-on camera.
Specifications
The inverted microscope is listed with the following head, optics, stage and lighting values.
| Product | Inverted Microscope |
| SKU | JA-M-8147 |
| Head | Trinocular, 45 degrees; light split 100/0 or 20/80 (eyepieces/camera port) |
| Eyepieces | WF10x/20 mm, high eyepoint; centring piece included |
| Nosepiece | Quadruple, ball bearings, internal click stops |
| Objectives | Long working distance plan 10x (WD 7.9 mm), 25x (WD 5.0 mm), 40x (WD 3.0 mm); 25x Ph+ plan phase (WD 5.0 mm); 25x relief phase slide |
| Condenser | Slide relief phase contrast condenser, NA 0.35, WD 45 mm |
| Focusing | Low-position coaxial coarse and fine |
| Stage | 206 x 170 mm; travel 128 x 80 mm; left or right hand operation; 35 mm and 65 mm culture dish holders |
| Filters | Blue, green, grey |
| Illumination | Koehler with field diaphragm; 6 V 20 W halogen; intensity control |
| Stand | Metal frame, one-piece arm and base; antifungal treatment |
Uses of the inverted microscope
- Routine checks of cell cultures in dishes and flasks
- Phase contrast viewing of live, unstained cells at 25x
- Image capture of cultures through the photo port
- Biotechnology and microbiology teaching laboratories
Scope of supply and ordering
The listing covers the inverted microscope with eyepieces, the objectives and phase slide listed, condenser, filters and dish holders. The camera, quantities and delivery are confirmed on the quotation.
Frequently asked questions
Which vessels does the stage take?
The 206 x 170 mm stage comes with holders for 35 mm and 65 mm culture dishes, and its 128 x 80 mm travel can be operated from the left or right.
What phase contrast parts are included?
A 25x Ph+ long working distance plan objective, a 25x relief phase slide and a slide relief phase contrast condenser with NA 0.35 and 45 mm working distance.
Related products
- Inverted Phase Contrast Microscope
- Inverted Tissue Culture Microscope
- Trinocular Inverted Tissue Culture Microscope
- Advanced Inverted Tissue Culture Microscope
Other inverted and research models are listed in the microscope range.
Request a quote
Please send the quantity, any camera and the destination through the contact page for a quotation on the Inverted Microscope. Institutions and contractors buying under a tender can also reach us via the tenders page.
