Logic Gates Circuit Trainer Manufacturer,Supplier and Exporter in India
Product Code : JA-BT-1492

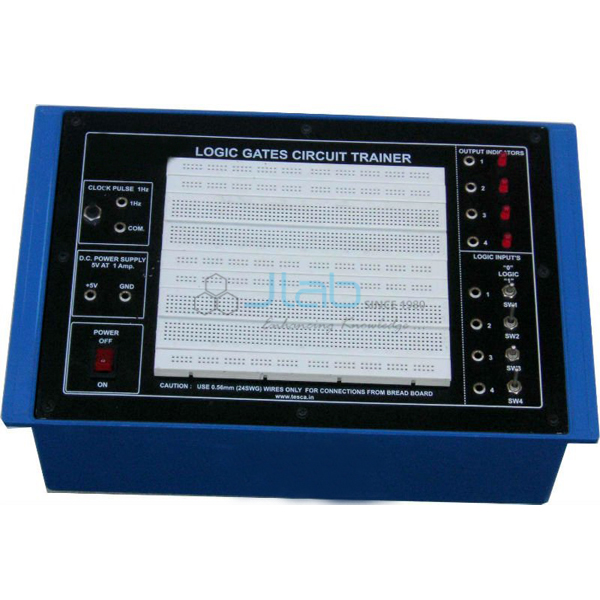

The logic gates circuit trainer is used to verify AND, OR, NOT, NAND and NOR gates and their truth tables, Boolean algebra, half-adder and full-adder designs, and D-type, JK and JK master/slave flip-flops. It has four each of AND, OR, NAND and NOR gates, six NOT gates, dual JK, JK master/slave and dual D flip-flops, a 5 V ±1%, 1 A supply, a 1 s clock pulse, four debounced switches and a 4-bit LED indicator (SKU JA-BT-1492).
Specifications
Listed specifications of the logic gates trainer:
| Product | Logic Gates Circuit Trainer |
| SKU | JA-BT-1492 |
| DC output | Fixed 5 V ±1%, 1 A |
| Regulation | Load ±1% (no load to full load); line less than 50 mV for ±10% mains change |
| Ripple and noise | Less than 5 mV |
| Clock | 1 second clock pulse |
| Logic switches | 4 debounced HI/LO; HI input 2.25 V or more, LO input 0.8 V or less |
| LED indicator | 4-bit; max. input 5 V DC |
| Breadboard | One main strip (640 tie points) for ICs; half main strip (320 tie points) for supply, clock, input and output; strips 173 mm long; 22-26 SWG wire |
| Gates | 4 AND, 4 OR, 4 NAND, 4 NOR, 6 NOT |
| Flip-flops | Dual JK; JK master/slave; dual D-type |
| Mains | 230 V ±10%, 50 Hz AC |
| Optional accessories | Jumper wire bag (4 reels, 5 m per reel); cutter/stripper tool |
Applications listed
The trainer is used for:
- Verification of AND, OR, NOT, NAND and NOR gates and their truth tables
- Verification of Boolean algebra
- Half-adder and full-adder design
- D-type flip-flop and truth table
- JK flip-flop and truth table
- Dual JK master/slave flip-flop and truth table
Scope of supply and ordering
The listing covers the logic gates circuit trainer with operating instructions, supplied by JaincoLab; the jumper wire bag and cutter/stripper tool are optional. Lead time and packing depend on the order size and are confirmed when we quote.
Frequently asked questions
Which gates and flip-flops are built in?
Four each of AND, OR, NAND and NOR gates, six NOT gates, a dual JK flip-flop, a JK master/slave flip-flop and a dual D-type flip-flop.
What logic levels do the switches give?
Four debounced HI/LO switches, with a HI input of 2.25 V or more and a LO input of 0.8 V or less.
Can adders be built?
Yes. Half-adder and full-adder design is one of the listed applications.
Related products
See the breadboard trainer range for other items in this family.
Request a quote
Send your requirement for the Logic Gates Circuit Trainer to [email protected] or use the contact page.
