Operational Amplifier as Inverting and Non Inverting Amplifier Manufacturer,Supplier and Exporter in India
Product Code : JA-COA-1134

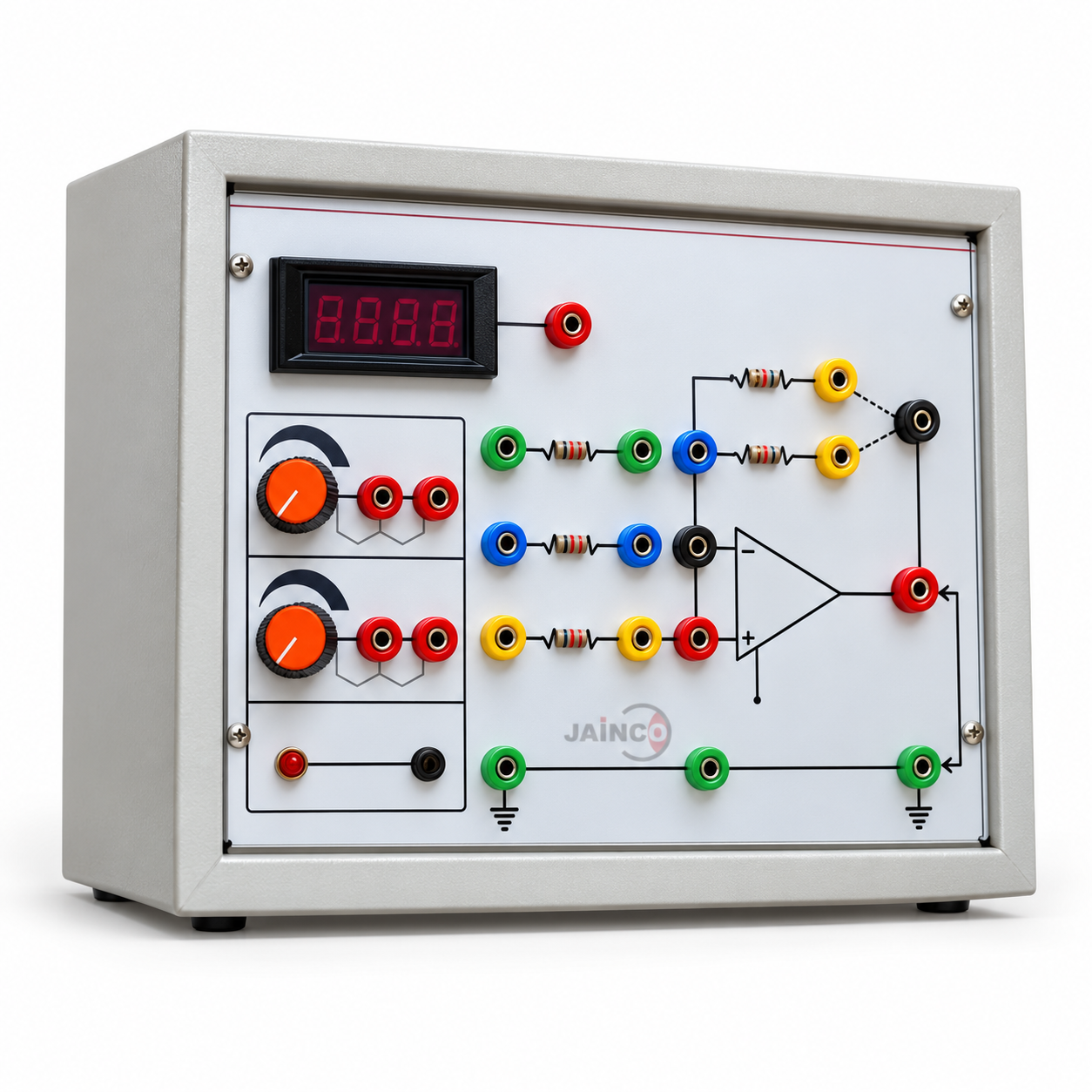

The Operational Amplifier as Inverting and Non Inverting Amplifier apparatus (SKU JA-COA-1134) is used to build both basic op-amp amplifier circuits and compare their gain with the value set by the feedback resistances. A DC power supply of +/-15 V at 500 mA is built in. The circuit diagram is printed on the panel, with terminals for connecting different resistances externally. The listing recommends a 3.5 digit digital multimeter and a 20 V DC digital voltmeter for readings.
Specifications
The listing gives these details:
| Product | Operational Amplifier as Inverting and Non Inverting Amplifier |
| SKU | JA-COA-1134 |
| Configurations | Inverting and non-inverting amplifier |
| Power supply | DC, +/-15 V at 500 mA |
| Panel | Printed circuit, terminals for external resistances |
| Recommended meters | 3.5 digit digital multimeter, 20 V DC digital voltmeter |
| Size | 10 x 7 x 3 in |
Scope of supply and ordering
The apparatus is supplied with its built-in supply; the recommended meters are separate items. Quantities and packing are stated on the quotation.
Frequently asked questions
Which op-amp circuits can be set up?
The inverting amplifier and the non-inverting amplifier.
How is the gain changed?
By connecting different resistances at the panel terminals.
