Semi Automatic Mounting Press Manufacturer,Supplier and Exporter in India
Product Code : JA-ME-7354

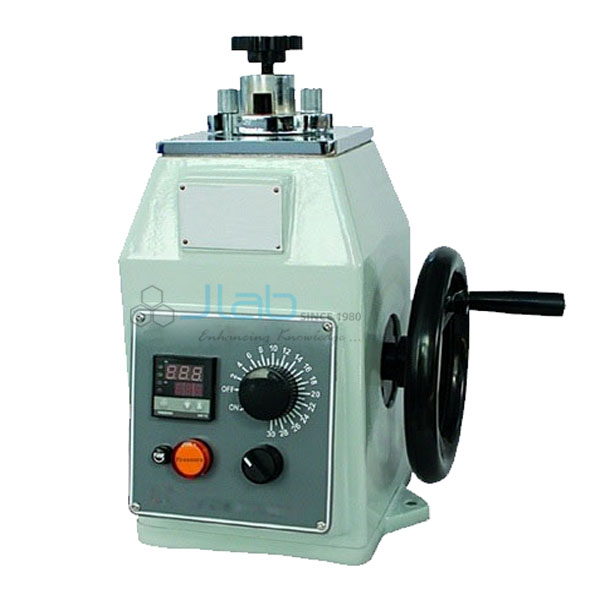

The Semi Automatic Mounting Press (SKU JA-ME-7354), supplied by JaincoLab, embeds small metal specimens in thermoset plastic under heat and pressure so that they can be ground and polished. Turning the hand-wheel drives bevel gears and a screw rod that move the lower die, while an internal spring holds the pressure and a signal light shows the pressure level. This metallographic mounting press has a digital temperature controller and a timer, and completes a mount in about 8 to 10 minutes.
Specifications
The metallographic mounting press is specified by a 650 W, 220 V heater, an adjustable temperature range of 0 to 400 °C, three specimen sizes and the dimensions below. Mould sizes supplied with the unit are confirmed on the quotation.
| Product | Semi Automatic Mounting Press |
| SKU | JA-ME-7354 |
| Type | Mechanical, hand-wheel operated; spring self-adjusting pressure |
| Specimen pressing size | 22 x 15 mm, 30 x 15 mm, 45 x 15 mm |
| Heater | 650 W, 220 V |
| Temperature range | Adjustable, 0 to 400 °C |
| Controls | Digital temperature controller, timer, pressure signal light |
| Mounting time | About 8 to 10 minutes per specimen |
| Power supply | 220 V, 50 Hz; voltage fluctuation within 15% |
| Overall dimensions | 340 x 270 x 400 mm |
| Weight | Approx. 25 kg |
Applications of the metallographic mounting press
The press is used to hot-mount small, irregular or thin specimens in thermoset resin so that they can be held flat during grinding and polishing and the edges are preserved for microscopic examination.
- Mounting specimens for metallography practicals in engineering colleges
- Edge preservation of coated, case-hardened or thin samples
- Preparing small wires, sheets and fasteners for microscopy
- Quality-control laboratories in foundries and heat-treatment shops
Scope of supply and ordering
The listing covers the Semi Automatic Mounting Press with heater, digital temperature controller and timer. Moulds and mounting powders are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and the delivery destination. Orders for engineering college, polytechnic and industrial metallography laboratories, including tender orders, are supplied.
Frequently asked questions
What specimen sizes can it mount?
22 x 15 mm, 30 x 15 mm and 45 x 15 mm.
What temperature range does it have?
Adjustable from 0 to 400 °C with a 650 W, 220 V heater under digital control.
How long does one mount take?
About 8 to 10 minutes per specimen, with a timer for semi-automatic operation.
