Study of 4-16 One input and Sixteen output Demultiplexer using IC 74154 Manufacturer,Supplier and Exporter in India
Product Code : JA-DEECP-1188

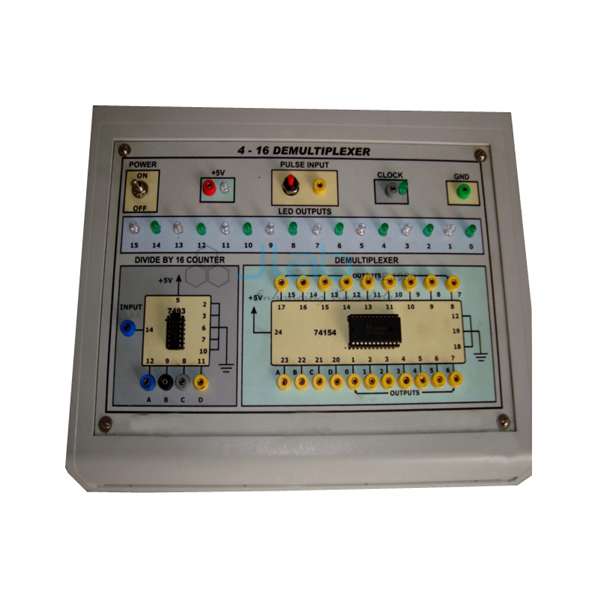

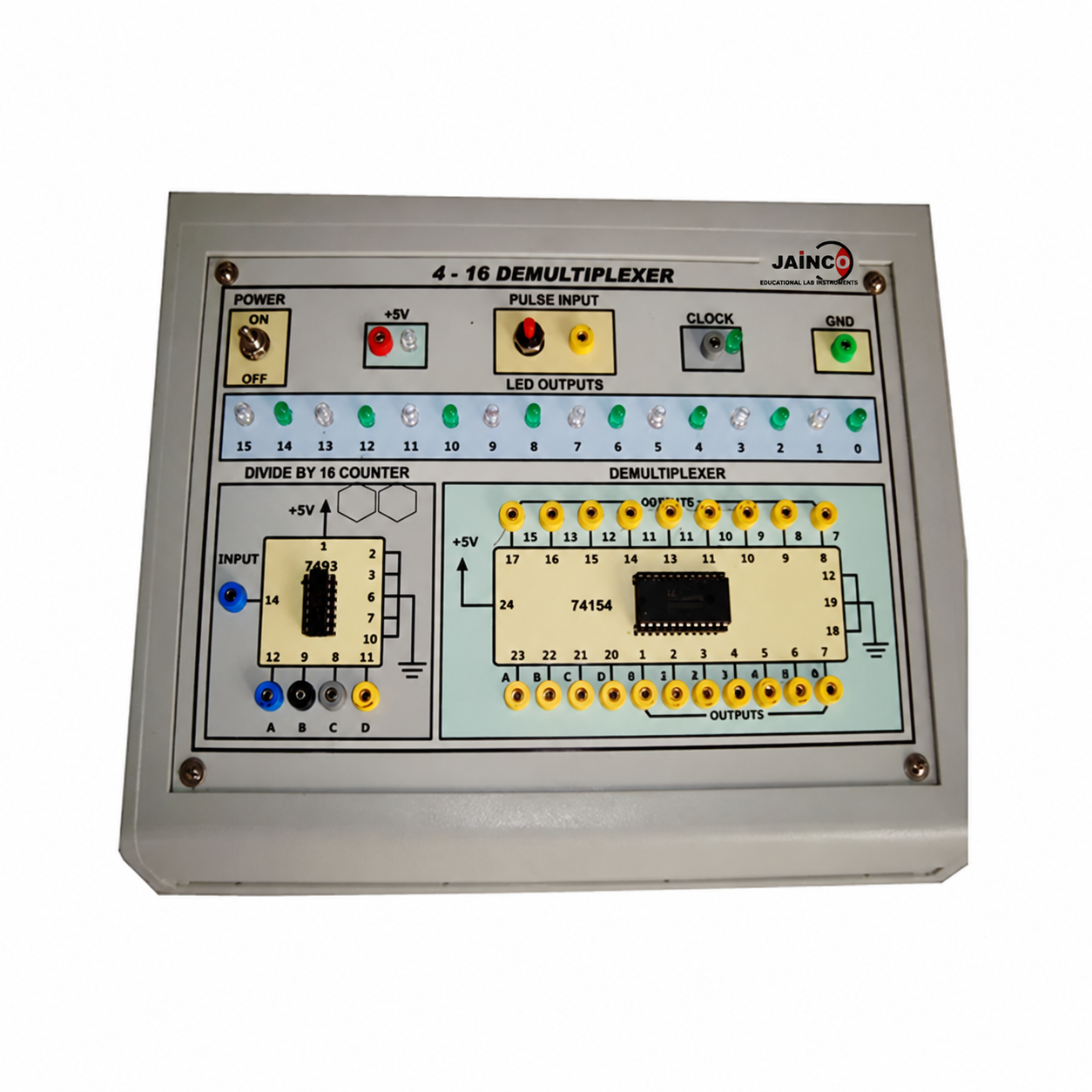

The Study of 4-16 One Input and Sixteen Output Demultiplexer using IC 74154 apparatus (SKU JA-DEECP-1188) uses the TTL 74154 4-line to 16-line decoder. Four binary-weighted address inputs, A0 to A3, select one of sixteen mutually exclusive outputs, Y0 to Y15. When one of the two enable inputs is used as the data input, the IC works as a 4-to-16 demultiplexer, sending that data to the addressed output.
Specifications
IC details from the product data:
| Product | Study of 4-16 One input and Sixteen output Demultiplexer using IC 74154 |
| SKU | JA-DEECP-1188 |
| IC | 74154, 4-to-16 line decoder/demultiplexer, TTL |
| Address inputs | Four, A0 to A3, binary weighted |
| Outputs | Sixteen, Y0 to Y15, mutually exclusive |
| Demultiplexer use | One enable input used as the data input |
Scope of supply and ordering
Supply, input switch and indicator details, quantities and packing are confirmed on the quotation.
Frequently asked questions
How does the IC 74154 act as a demultiplexer?
One of its two enable inputs is used as the data input, which is routed to the addressed output.
How many outputs does it have?
Sixteen mutually exclusive outputs, Y0 to Y15.
