Half Wave, Full Wave and Rectifier Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-VOVLACOS-1113

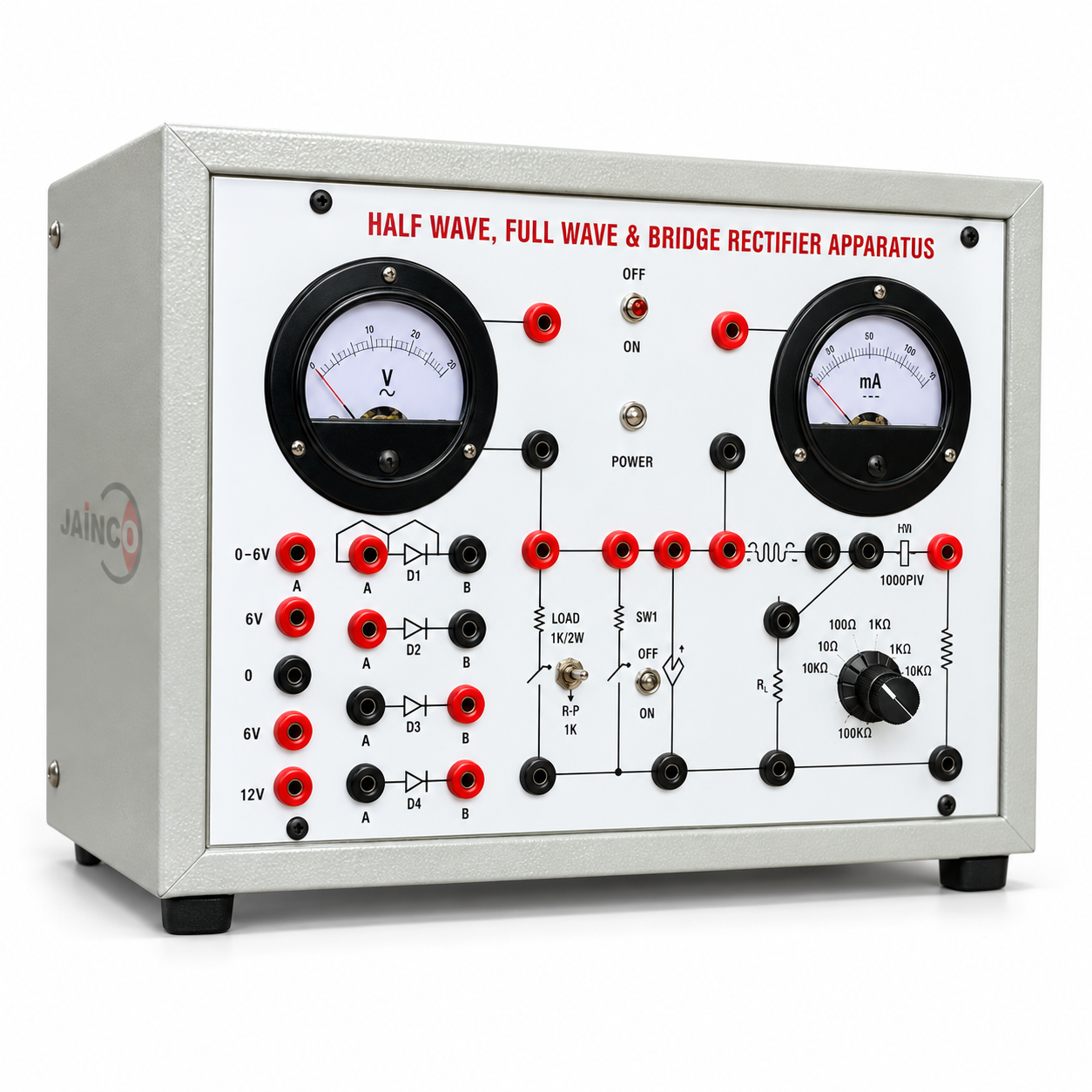

The Half Wave, Full Wave and Rectifier Apparatus (SKU JA-VOVLACOS-1113) is used to study the efficiency and ripple factor of half wave, full wave and bridge rectifiers on load, and the effect of filters. An AC supply feeds the junction diodes, a filter circuit is included, load resistances are selected with toggle switches, and two meters read the output voltage and current. The listing names a digital AC millivoltmeter as an optional accessory for measuring the ripple.
Specifications
The listing gives these details:
| Product | Half Wave, Full Wave and Rectifier Apparatus |
| SKU | JA-VOVLACOS-1113 |
| Power supply | AC |
| Rectifiers | Junction diodes for half wave, full wave and bridge |
| Filter | Filter circuit included |
| Load | Resistances selected by toggle switches |
| Meters | Two: output voltage and current |
| Optional accessory | Digital AC millivoltmeter |
| Size | 10 x 8 x 4 in |
Scope of supply and ordering
The AC millivoltmeter is optional and quoted separately. Quantities and packing are confirmed on the quotation.
Frequently asked questions
Which rectifiers can be studied?
Half wave, full wave and bridge rectifiers, with and without the filter.
What is measured?
Efficiency and ripple factor on load, with output voltage and current read on two meters.
