Study of Operational Amplifier as Differentiator and Integrator Manufacturer,Supplier and Exporter in India
Product Code : JA-COA-1139

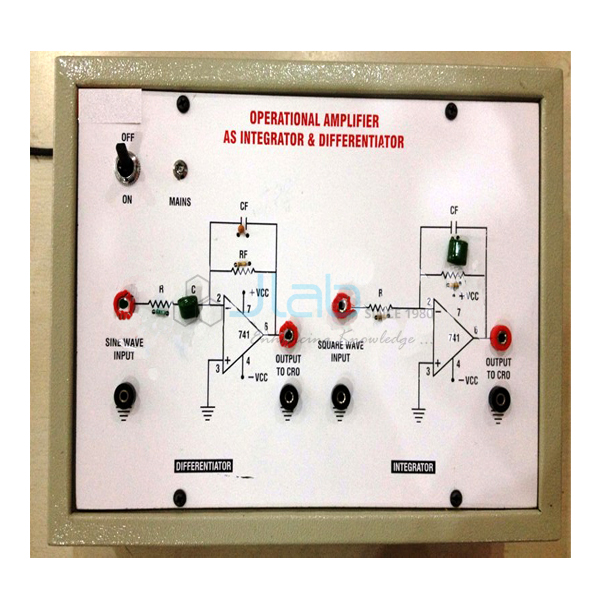

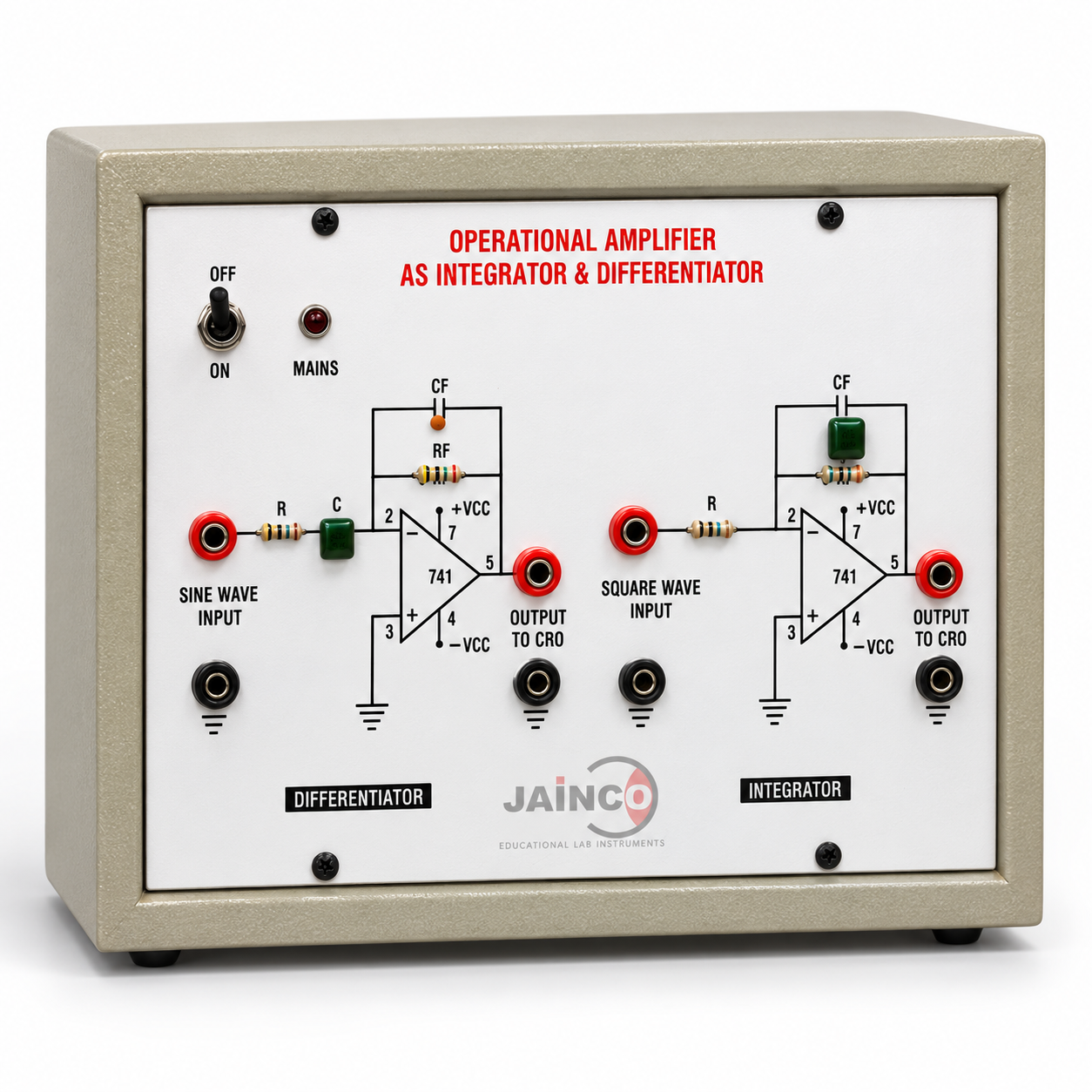

The Study of Operational Amplifier as Differentiator and Integrator apparatus (SKU JA-COA-1139) is used to observe two complementary op-amp circuits. The differentiator gives a constant output voltage when the input voltage changes steadily, as with a ramp. The integrator does the reverse: a constant input voltage gives a steadily changing output. The listing does not give the supply, meter or component values, so they are set out on the quotation.
Specifications
The listing describes the two circuits only:
| Product | Study of Operational Amplifier as Differentiator and Integrator |
| SKU | JA-COA-1139 |
| Differentiator | Constant output for a steadily changing input |
| Integrator | Steadily changing output for a constant input |
| Supply, meters and components | Confirmed on the quotation |
Scope of supply and ordering
Circuit values, accessories, quantities and packing are all stated on the quotation.
Frequently asked questions
What does the differentiator circuit show?
A constant output voltage for a steadily changing input voltage.
What does the integrator circuit show?
A steadily changing output voltage for a constant input voltage.
