Volt Ratio Box Manufacturer,Supplier and Exporter in India
Product Code : JA-SI-8124

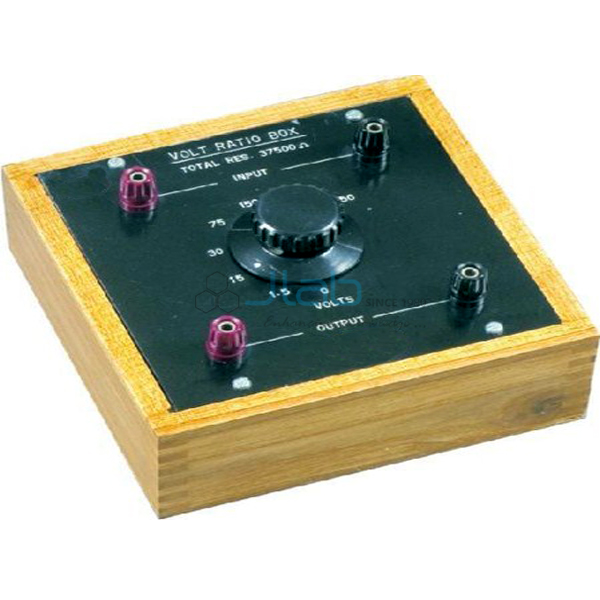

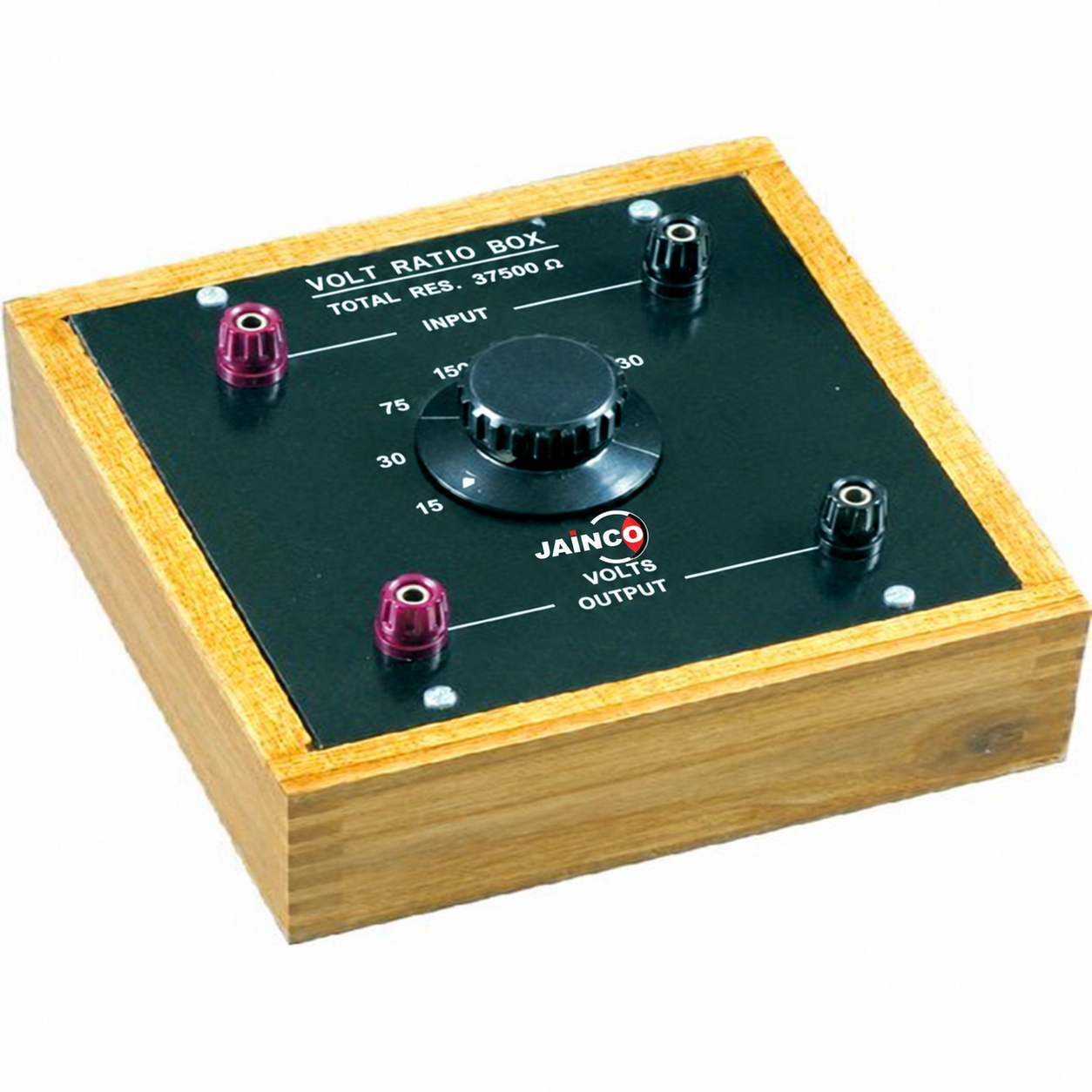

The Volt Ratio Box (SKU JA-SI-8124) extends the range of a Crompton potentiometer so that voltages well above the potentiometer range can be measured. Its tapping points divide the applied voltage in multiples of 1.5 V, giving ranges of 1.5, 15, 30, 150, 300 and 750 V. The total resistance is 37,500 ohms and the listed accuracy is +0.02%.
Specifications
The two models in the listing compare as follows:
| Product | Volt Ratio Box |
| SKU | JA-SI-8124 |
| Ranges | 1.5, 15, 30, 150, 300, 750 V |
| Resistance | 37,500 ohms |
| Accuracy | +0.02% |
| Tapping points | Multiples of 1.5 V |
| Volt Ratio Box 1 | 1.5, 15, 30, 150, 300 V; 15,000 ohms; +0.02% |
Scope of supply and ordering
Two models are listed, so say whether you need the 750 V box or Volt Ratio Box 1 (300 V); quantities and packing are confirmed on the quotation.
Frequently asked questions
What is the volt ratio box used for?
To extend the voltage range of a Crompton potentiometer through tapping points in multiples of 1.5 V.
What is the highest range?
750 V on this model; Volt Ratio Box 1 goes up to 300 V.
Related products
Potentiometer accessories are grouped in our scientific instrument range.
Request a quote
For the Volt Ratio Box, name the model and quantity on the contact page. For tender or project supply, see our tenders page.
