Astable Multivibrator using IC 555 Manufacturer,Supplier and Exporter in India
Product Code : JA-SOM-1150

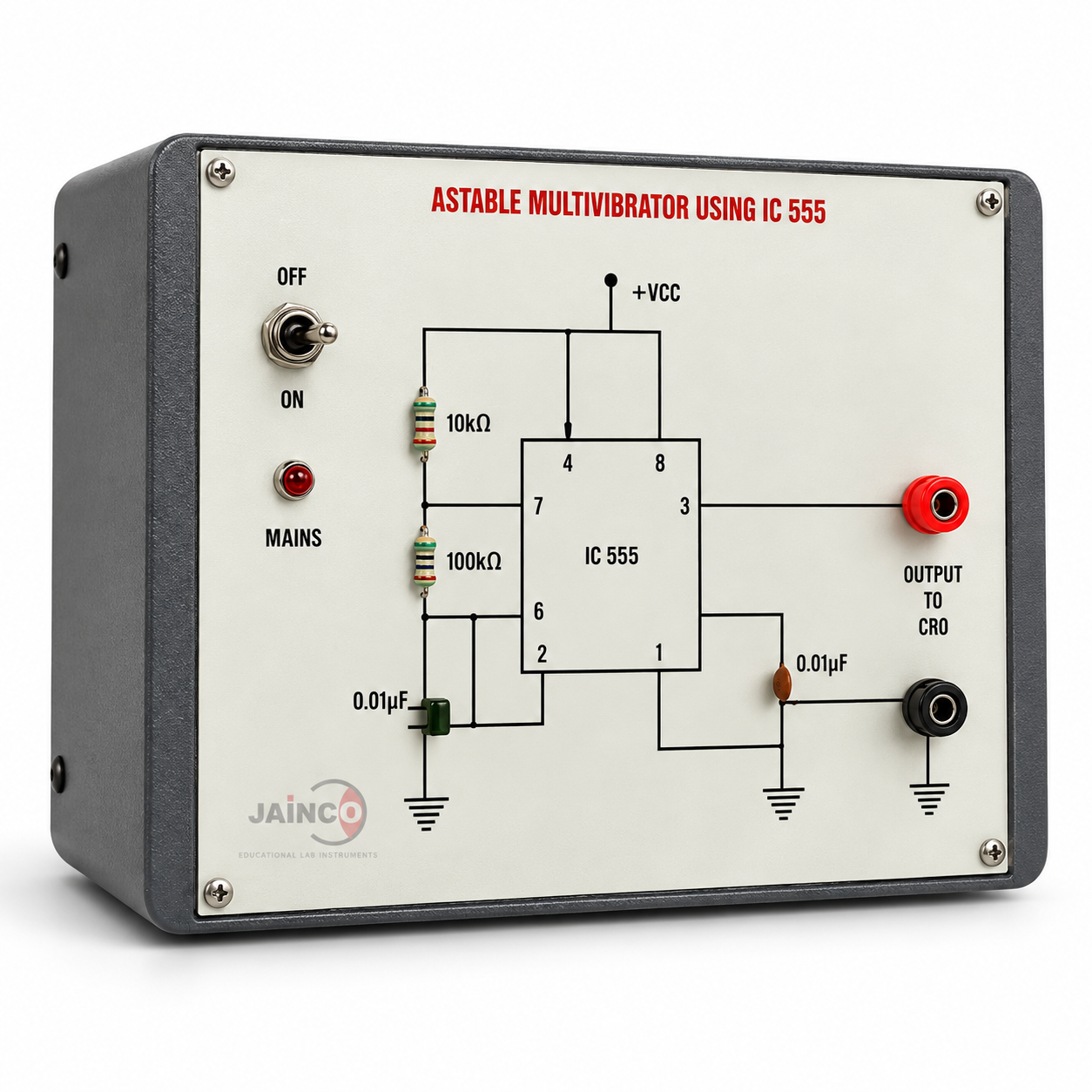

The Astable Multivibrator using IC 555 apparatus (SKU JA-SOM-1150) is used to study the wave shape and frequency produced by a 555 timer running as a free-running oscillator. The IC 555 and a range of resistances and capacitors are fitted inside the cabinet with their connections brought out at sockets, so different timing values can be selected and the change in frequency observed. A 5 V DC regulated power supply is built in.
Specifications
Circuit and supply from the product data:
| Product | Astable Multivibrator using IC 555 |
| SKU | JA-SOM-1150 |
| IC | 555 timer, inside the cabinet |
| Components | Resistances and capacitors inside, connections at sockets |
| Power supply | 5 V DC regulated |
| Experiment | Wave shape and frequency of the astable output |
Scope of supply and ordering
The unit is supplied complete with its 5 V supply. Patch cords, quantities and packing are stated on the quotation.
Frequently asked questions
What is studied on the IC 555 astable apparatus?
The wave shape and frequency of the astable multivibrator output.
How are timing values changed?
Resistances and capacitors inside the cabinet are brought out at sockets and connected as required.
