Digital Storage Oscilloscope Dual Channel

Product Code : JA-DSO-1531

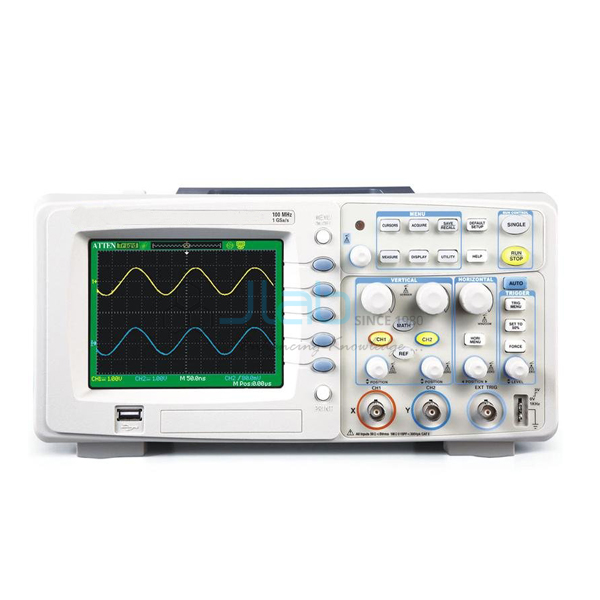

The Digital Storage Oscilloscope Dual Channel is a 60 MHz, two-channel DSO with 500 MSa/s real-time sampling. It has a 4K memory depth and a 5.7-inch colour TFT display. It has 32 automatic measurements, cursors, FFT, pass/fail testing and a waveform recorder. The same dual-channel family is made in versions from 60 MHz up to 200 MHz.

Specifications of the 60 MHz dual channel DSO

Product codeJA-DSO-1531
Bandwidth60 MHz (dual-channel family from 60 MHz to 200 MHz)
Channels2
Sampling and memory500 MSa/s real time; 4K memory depth
Display5.7-inch colour TFT LCD
Vertical sensitivity and inputAbout 2 mV/div to 10 V/div; 1 Mohm input*
TriggeringEdge, pulse, video, slope, alternative and delay
Measurements and functions32 automatic parameters; cursors in manual, track and auto modes; digital filter, waveform recorder, pass/fail and FFT on a split screen
InterfacesUSB host and device, front and back; GPIB
Power and probes100 to 240 V AC, 50/60 Hz universal input; one correctly rated 10x passive probe per channel*
ManufacturerJaincoLab, Ambala, India

* Standard JaincoLab specification for new builds.

Bench work with the 60 MHz dual channel DSO

  • Gain of a two-stage amplifier. Feed a small sine from the 2 MHz Function Generator into the Two Stage RC Coupled Transistor Amplifier. Show the input on one channel and the output on the other, and read the gain from the automatic peak-to-peak values.
  • Harmonics with FFT. Pass a square wave through the Passive Filters board and show the FFT on the split screen. Watch the higher harmonics shrink as the filter cut-off is lowered.
  • Counter timing. Show the clock and one output of the Study of 4 Bit Ripple Counter Forward and Reverse board. Trigger on the clock edge and measure the delay of each stage with the cursors.
  • Go/no-go checking. Store a good waveform, set a pass/fail mask around it and let the scope count failures while students change one component at a time.

Frequently Asked Questions

Why does the sample rate drop at slow time-base settings on a 4K-memory scope?
The scope spreads its 4K record across the whole screen. At a slow time base the screen covers a long time, so the samples are spaced further apart. The real sample rate then falls below 500 MSa/s. Fast signals viewed at slow settings can then alias, so zoom in before measuring.

Why do automatic frequency readings sometimes fail at very fast time-base settings?
The scope needs at least one full cycle on screen to measure frequency or period. If the time base is so fast that only part of a cycle shows, the reading is blank or wrong. Slow the time base until two or more cycles show, then read the value again.

How do students compensate a 10x probe before they take readings?
Feed the probe a clean square wave from the probe test terminal or a function generator. Turn the small trimmer on the probe until the corners are square, with no overshoot or rounding. Set the channel to 10x as well, or every reading will be ten times too small.

Can we order the dual-channel scope with a higher bandwidth than 60 MHz?
Yes. The same dual-channel family is made in versions from 60 MHz up to 200 MHz. State the bandwidth your tender needs in the enquiry. The 70 MHz model and the higher-bandwidth dual-channel models are also listed separately in the oscilloscope range.

Does the 60 MHz scope have digital logic channels as well?
No. It has two analogue input channels only, which is enough to compare a clock with one output or an input with an output. A tender that asks for extra digital channels needs a mixed-signal model, so mention that requirement in your enquiry.

Other dual-channel digital storage oscilloscopes

See the Digital Storage Oscilloscopes range and more electronics lab equipment from JaincoLab, an electronics lab equipment manufacturer in India.

For a quotation, send the product name and the quantity you need through our contact page. For tender or project supply, see our tenders page.
