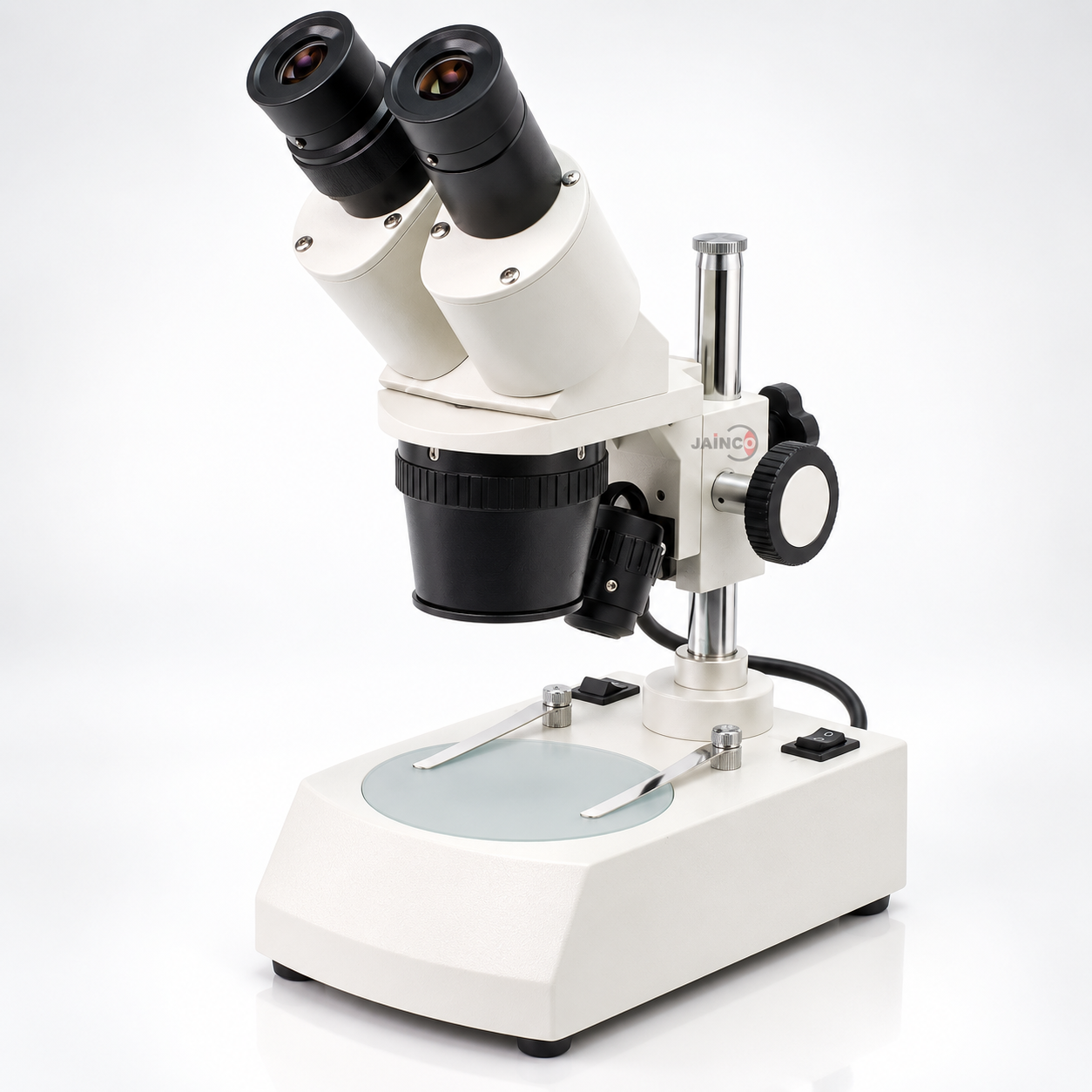

Dual Power LED Stereo Microscope with Pillar Stand Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8101
The Dual Power LED Stereo Microscope with Pillar Stand (SKU JA-M-8101) is a compact binocular stereo microscope supplied by JaincoLab for middle and secondary school classes. Two achromatic objectives on a turret give two magnifications, ordered as 10x and 20x, 10x and 30x, or 20x and 40x, and top and bottom LED lights can be used on their own or together.
Specifications
The post-stand head, eyepieces and lighting are common to all three magnification versions listed.
| Product | Dual Power LED Stereo Microscope with Pillar Stand |
| SKU | JA-M-8101 |
| Magnification versions | 10x and 20x (1x and 2x objectives); 10x and 30x (1x and 3x); 20x and 40x (2x and 4x) |
| Head | Binocular, inclined 45 degrees; post-mounted, rotates 180 degrees, adjustable for working distance; IPD 51-75 mm; diopter on left tube |
| Eyepieces | Paired WF10x with rubber eye guards; lockable with setscrew; 15x or 20x listed as alternatives |
| Objectives | Achromatic, parfocal and parcentred, on a turret |
| Focusing | Rack and pinion with safety stop and tension adjustment; two knobs |
| Stage | 95 mm glass plate and 95 mm reversible black/white plate; locked-on clips |
| Illumination | Diagonally adjustable top incident LED and bottom transmitted LED; transmitted, incident or both; main switch plus separate top and bottom switches |
| Power | Mains, 3-wire safety cord |
Uses of the dual power LED stereo microscope
- Overview at the lower power, detail at the higher power, without changing microscopes
- Insects, seeds and flowers under the top light
- Thin specimens over the bottom light through the glass plate
- Class sets where eyepieces must stay locked in place
Scope of supply and ordering
One unit is the stereo microscope in the magnification pair ordered, with the WF10x pair and both stage plates. Quantities, packing and delivery are confirmed on the quotation.
Frequently asked questions
How do I switch between the two magnifications?
Turn the objective turret to the other objective; the achromatic objectives are parfocal, so focus holds closely after the change.
Can the top and bottom lights be used together?
Yes. The lighting works as transmitted, incident or both, with a main switch and separate top and bottom switches.
Related products
- Tri Power LED Stereo Microscope
- LED Top and Bottom Lights Binocular Stereo Microscope
- Series Binocular Stereo Microscope
- Dual Power Binocular Stereo Microscope
Single, dual and tri power stereo models are listed in the microscope range.
Request a quote
Send the magnification pair, quantity and destination through the contact page for a quotation on the Dual Power LED Stereo Microscope with Pillar Stand. Tender and project enquiries can be sent through the tenders page.
