Dual View Coaxial Focusing Beginner Microscope Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8053

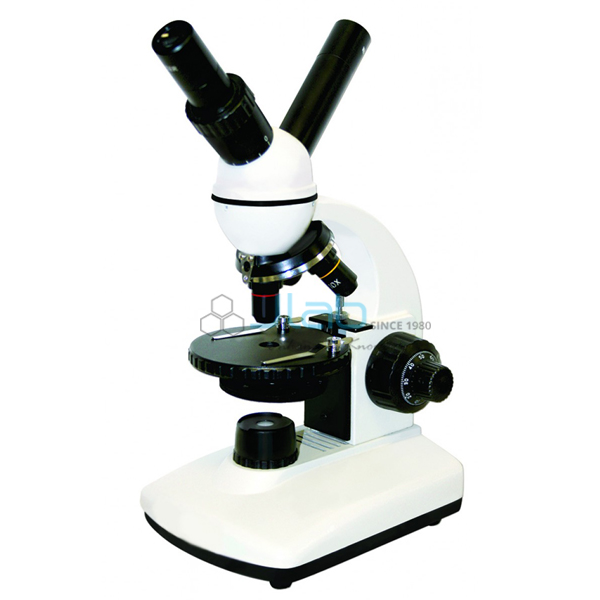

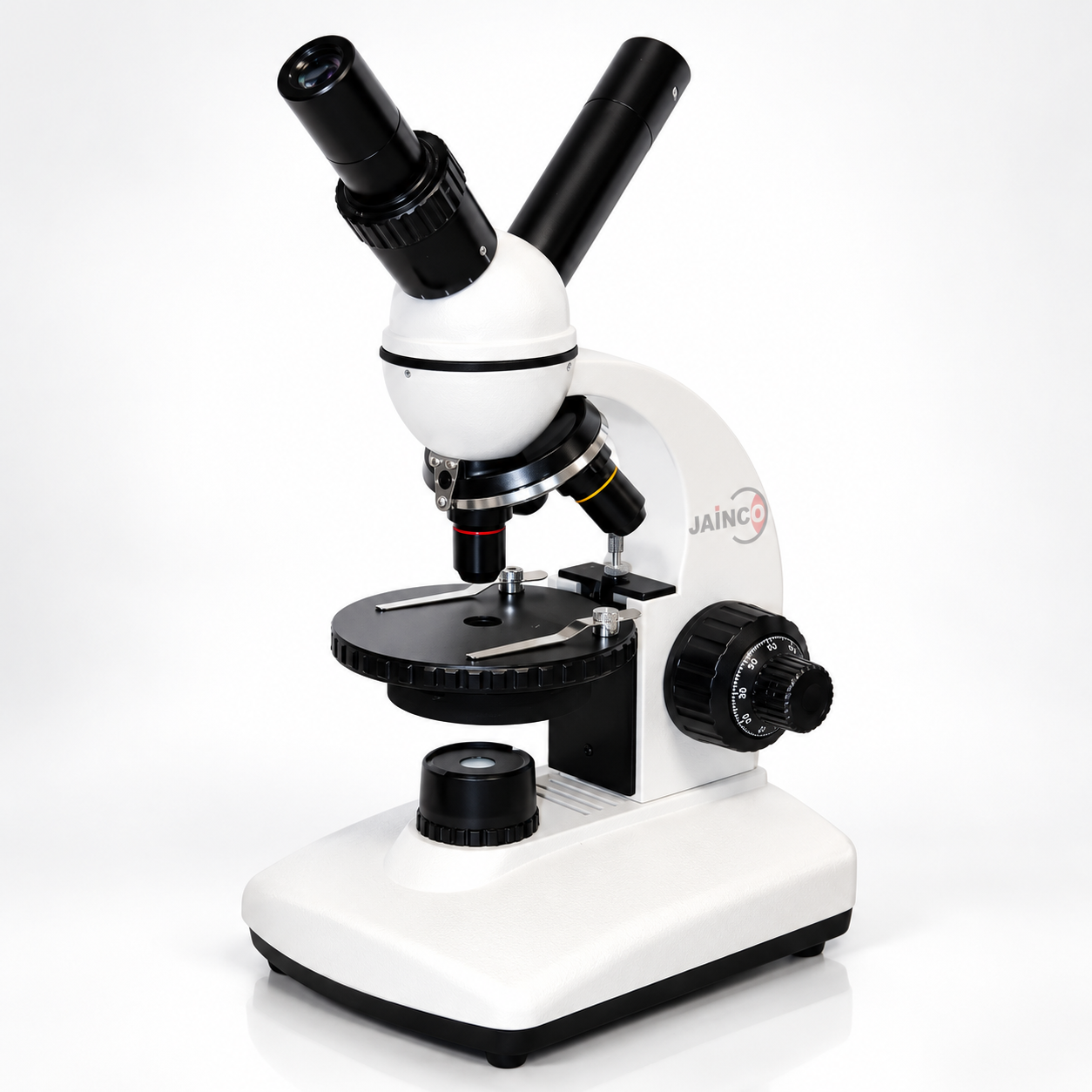

The Dual View Coaxial Focusing Beginner Microscope (SKU JA-M-8053) is a cast metal beginner microscope supplied by JaincoLab with coaxial coarse and fine focusing, a dual view head and LED lighting built into the base. Its locked-on WF10x eyepiece and parfocal achromatic 4x, 10x and retractable 40x objectives give 40x, 100x and 400x, so a dual view coaxial focusing microscope like this lets students sharpen the image at 400x with the fine control.
Specifications
Compared with coarse-only beginner models, this listing adds a coaxial fine focus control and parfocal objectives; the remaining values are shown below.
| Product | Dual View Coaxial Focusing Beginner Microscope |
| SKU | JA-M-8053 |
| Head | Dual view head, inclined 45 degrees, rotates 360 degrees |
| Eyepiece | Locked-on WF10x with pointer |
| Nosepiece | 3-position reverse nosepiece with positive click stops |
| Objectives | Achromatic 4x, 10x, 40xR (retractable); colour-coded, parcentred and parfocal |
| Magnification | 40x, 100x, 400x |
| Focusing | Coaxial coarse and fine; rack and pinion with slip clutch at both ends of travel; safety rack stop |
| Stage | 3.5 in round gliding stage, 360-degree rotation, stage clips |
| Illumination | Built-in LED with on/off switch; LED life 10,000 hours; 6-hole rotating disc diaphragm |
| Power | Corded: three-wire grounded cord. Cordless: 9 V NiMH rechargeable batteries with plug-in adapter, 8-hour recharge, up to 50 hours per charge |
| Size | 12 in high; base 6.5 x 5.25 in; all-metal construction |
Where the coaxial focusing beginner microscope is used
- Cell and tissue slides at 400x, where fine focus matters
- First practicals on focusing and changing objectives
- Stained temporary mounts in secondary school biology
- Portable sessions with the cordless version
Scope of supply and ordering
The listing covers one microscope, ordered as the corded or the cordless version. The number of units, packing and delivery schedule are agreed on the quotation.
Frequently asked questions
What does coaxial focusing mean on this microscope?
The coarse and fine focus controls sit on the same axis, so students move from coarse to fine adjustment without changing hand position.
How long does the cordless version run per charge?
The listing gives up to 50 hours of continuous use per charge from the 9 V NiMH batteries, with a full recharge in 8 hours through the included plug-in adapter.
What does parfocal mean for the objectives?
Parfocal objectives stay close to focus when the nosepiece is turned from 4x to 10x to 40x, so only a small fine-focus correction is needed after each change.
Related products
- LED Corded/Cordless Dual View Microscope
- Monocular Coaxial Focusing Beginner Microscope
- Dual View with Digital Camera Coaxial Focusing Microscope
- LED Corded/Cordless Beginner Monocular Microscope
See the microscopes range for monocular, binocular and stereo models.
Request a quote
Please share the quantity, corded or cordless choice and destination via the JaincoLab contact page to receive a quotation for the Dual View Coaxial Focusing Beginner Microscope. Tender and project enquiries can be sent through the tenders page.
