Advanced Infinity Corrected Trinocular Microscope Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8084

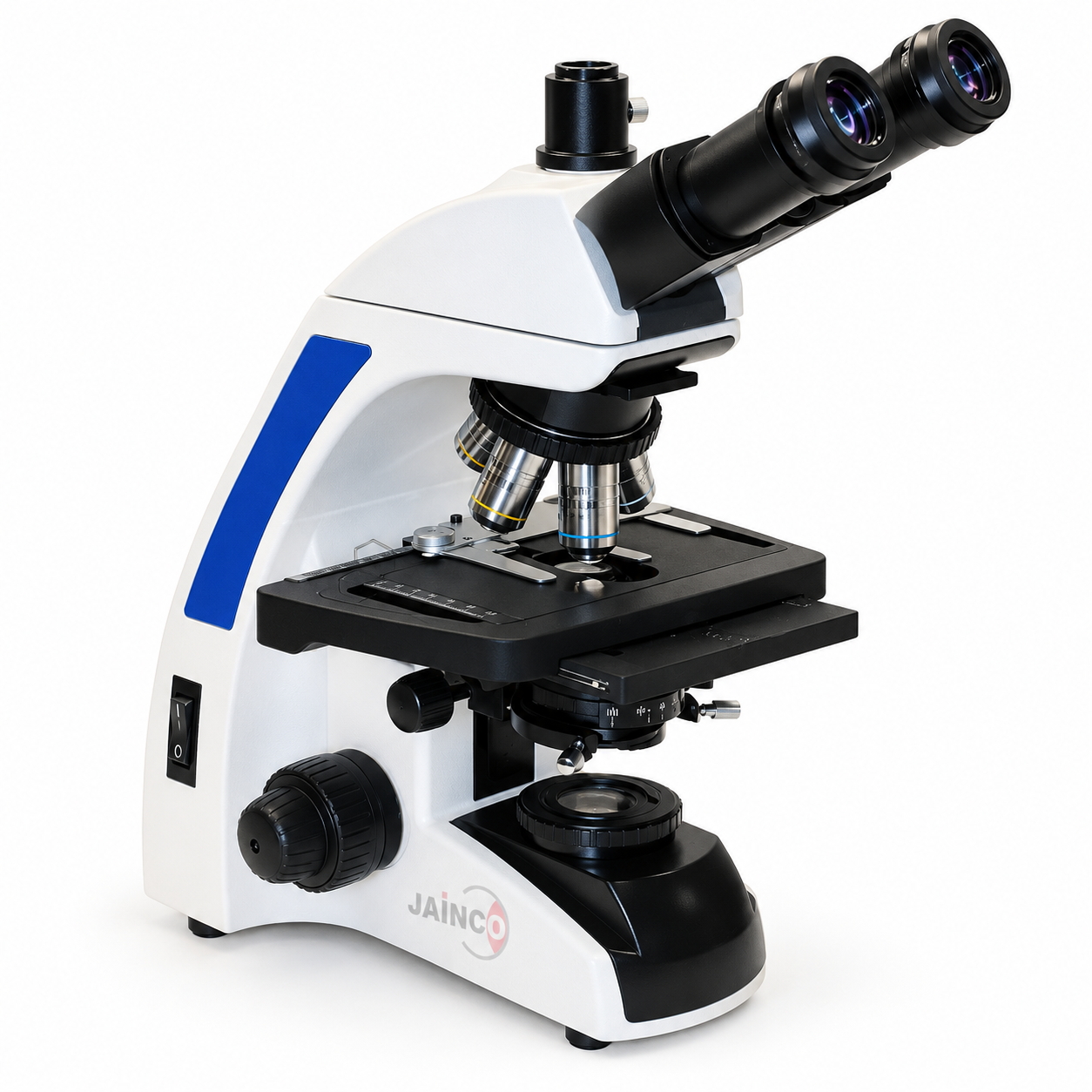

The Advanced Infinity Corrected Trinocular Microscope (SKU JA-M-8084) is supplied by JaincoLab for laboratories that document their slides. It carries five infinity-corrected high contrast plan achromatic DIN objectives from 4x to 100x oil, and its phototube divides light 50/50 between the eyepieces and a camera on the included 0.5x C-mount. Illumination is Koehler from a 5 W LED.
Specifications
The trinocular version is listed with these values.
| Product | Advanced Infinity Corrected Trinocular Microscope |
| SKU | JA-M-8084 |
| Head | Trinocular, 50% visual / 50% documentation; 30 degrees, rotates 360 degrees; swivel tubes; IPD 48-75 mm |
| Eyepieces | WF10x/22 mm high eyepoint with eyeguards; both diopter adjustable |
| Objectives | Infinity-corrected HC plan achromatic DIN 4x/0.10, 10x/0.25, 20x/0.40, 40xR/0.65, 100xR/1.25 oil on a reversed quintuple nosepiece |
| Magnification | 40x, 100x, 200x, 400x, 1000x |
| Focusing | Low coaxial knobs; 37.7 mm per coarse turn; 1 micron fine graduation; range 16 mm; tension adjustment |
| Stage | 216 x 150 mm double-layer; travel 75 x 55 mm; graphite surface |
| Illumination | Koehler with field diaphragm; 1.25 NA Abbe with graduated iris; 5 W LED, intensity control |
| Imaging | 0.5x C-mount included; 5 MP or 10 MP eyepiece camera and 8 in LCD camera available |
| Stand | Metal frame, one-piece arm and base, carrying handle, cord holder, antifungal treatment |
| Optional, not included | Dark field, phase contrast and polarising kits |
Uses of the advanced infinity trinocular microscope
- Photo and video documentation of slides on a computer or screen
- Phase contrast recording of live cells with the optional kit
- High-contrast images of stained sections for reports and teaching
- Research laboratory work at up to 1000x
Scope of supply and ordering
The listing covers the trinocular microscope with eyepieces, five objectives and the 0.5x C-mount. Cameras, kits, units and delivery are confirmed on the quotation.
Frequently asked questions
Is a camera included with the trinocular model?
The 0.5x C-mount is included; a 5 MP or 10 MP digital eyepiece camera or an 8 in LCD camera is available as a separate line on the quotation.
How does it differ from the Advanced Infinity Corrected Binocular Microscope?
Both list the same HC plan objectives, stage and Koehler lighting; this model adds the 50/50 trinocular phototube and the 0.5x C-mount.
Related products
- Advanced Infinity Corrected Binocular Microscope
- Advanced Infinity Corrected Digital Trinocular Microscope with LCD Touch Pad
- Trinocular 5W LED Kohler Illumination
- Infinity Corrected Digital Trinocular Microscope
Digital and optical research models are grouped in the microscope range.
Request a quote
To price the Advanced Infinity Corrected Trinocular Microscope, share the quantity, camera choice and destination on the JaincoLab contact page. For tender or project supply, see our tenders page.
