Trinocular Digital Microscope with LCD Touch Pad 5W LED Kohler Illumination Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8079

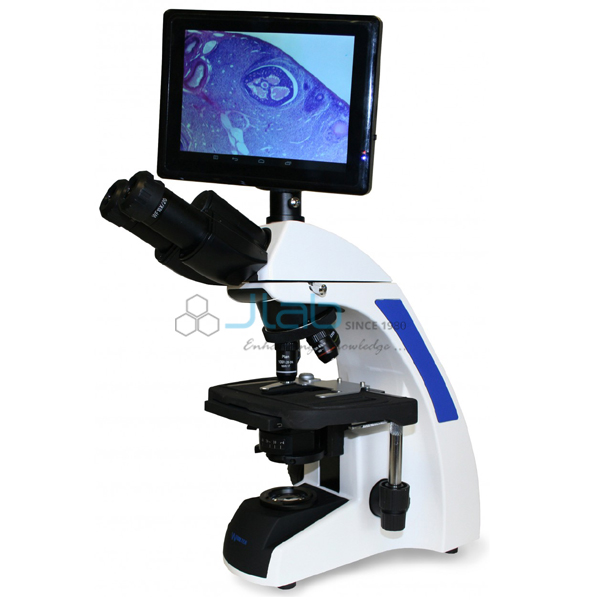

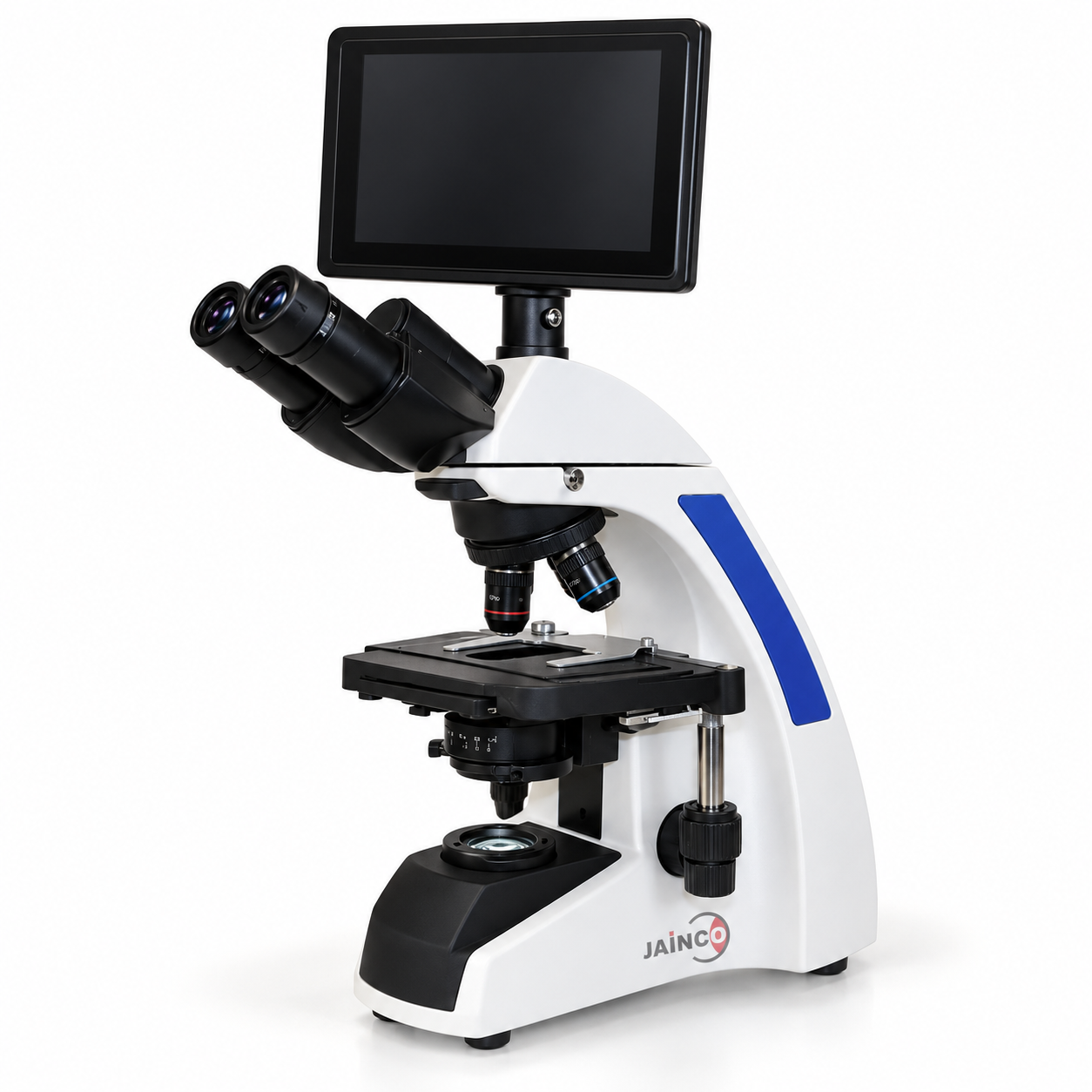

The Trinocular Digital Microscope with LCD Touch Pad 5W LED Kohler Illumination (SKU JA-M-8079) is a laboratory microscope supplied by JaincoLab with an 8 in colour touchscreen camera on its trinocular port, so specimens can be searched, focused and captured on screen. Plan achromatic DIN objectives from 4x to 100x oil and 5 W LED Koehler lighting make this trinocular digital microscope with LCD touch pad suitable for demonstration and documentation.
Specifications
Microscope optics match the Trinocular 5W LED Kohler model; the touch pad camera data from the listing are added below.
| Product | Trinocular Digital Microscope with LCD Touch Pad 5W LED Kohler Illumination |
| SKU | JA-M-8079 |
| Head | Trinocular, 50% visual / 50% documentation; 30 degrees, rotates 360 degrees; swivel tubes; IPD 48-75 mm |
| Eyepieces | WF10x/22 mm high eyepoint; both diopter adjustable |
| Objectives | Plan achromatic DIN 4x/0.10, 10x/0.25, 40xR/0.65, 100xR/1.25 oil (160/0.17) on a reversed quadruple nosepiece |
| Focusing and stage | Low coaxial knobs, 1 micron fine graduation, range 16 mm; 216 x 150 mm double-layer stage, travel 75 x 55 mm |
| Illumination | Koehler with field diaphragm; 1.25 NA Abbe with graduated iris; 5 W LED with intensity control |
| LCD camera | 8 in colour touchscreen, 5-point multi-touch, 1024 x 768, rotates 360 degrees horizontally and 90 degrees vertically; 2 MP camera; automatic white balance and exposure |
| Processor and storage | Dual-core 1.41 GHz; Android 4.1.1; 1 GB DDR3; 4 GB internal or Mini SD card; USB storage |
| Connections | HDMI, USB 2.0, Mini USB 2.0, Wi-Fi, Bluetooth; Windows, Mac and Linux compatible |
| Power (camera) | Input AC 110-220 V; output DC 5 V |
| Supplied with camera | 0.35x relay lens, external power adapters, HDMI cable; 0.5x C-mount included |
| Optional, not included | Dark field kit, polarisation kit, 1x C-mount |
Uses of the LCD touch pad microscope
- Searching and focusing on the screen instead of the eyepieces
- Showing slides to a group on the touchscreen or over HDMI
- Saving images to a Mini SD card or USB drive
- Darkfield or polarised light work with the optional kits
Scope of supply and ordering
The listing covers the trinocular microscope with the 8 in touch pad camera, 0.35x relay lens, adapters and HDMI cable, plus the 0.5x C-mount. Quantities and delivery are set out on the quotation.
Frequently asked questions
Can the specimen be focused on the screen?
Yes. Live images appear on the 8 in touchscreen as soon as the camera starts, so searching and focusing can be done on screen rather than through the eyepieces.
How are images saved and shared?
Images save to the 4 GB internal memory, a Mini SD card or a USB device, and the camera connects to other equipment through HDMI, USB 2.0, Wi-Fi or Bluetooth.
