Infinity Corrected Digital Trinocular Microscope Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8068

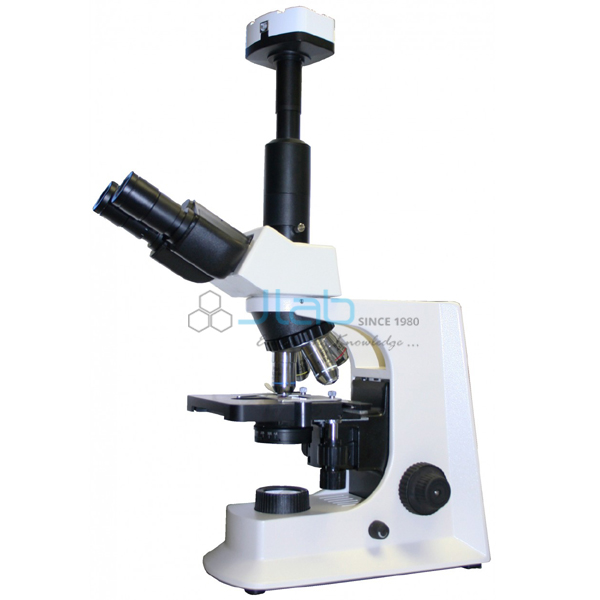

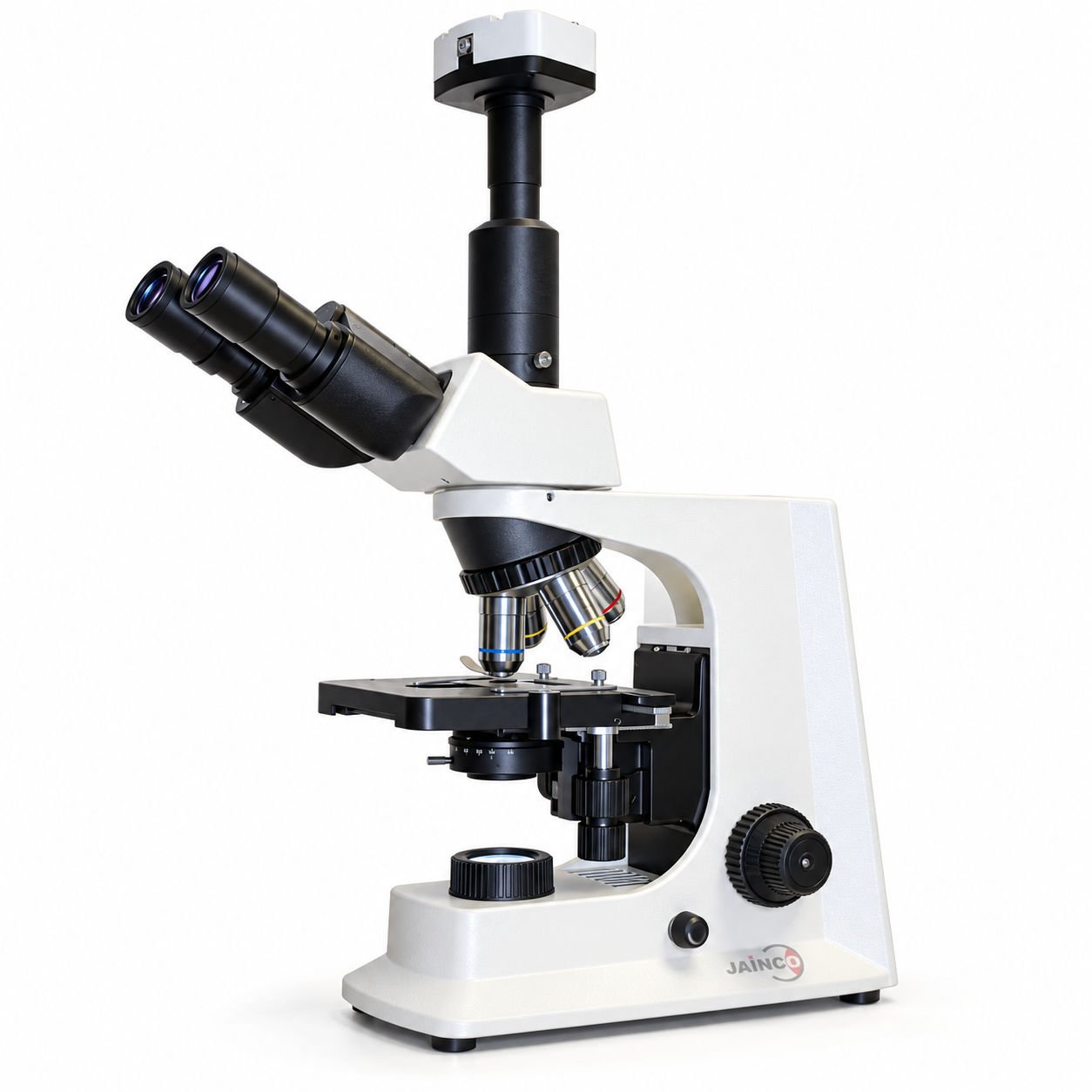

The Infinity Corrected Digital Trinocular Microscope (SKU JA-M-8068) is a laboratory microscope supplied by JaincoLab for photo and video documentation of slides. Its trinocular head splits light 20:80 to the camera port, and the listed digital eyepiece camera comes in 5.0 MP and 10.0 MP versions. Infinity-corrected E Plan achromatic DIN objectives from 4x to 100x oil give 40x to 1000x with WF10x/20 eyepieces.
Specifications
The microscope values match the infinity binocular model; the head and camera data differ, as shown.
| Product | Infinity Corrected Digital Trinocular Microscope |
| SKU | JA-M-8068 |
| Head | Trinocular, 20:80 split; tube length unchanged by IPD adjustment; 30 degrees, rotates 360 degrees; IPD 50-75 mm |
| Eyepieces | WF10x/20 mm; diopter on left tube; calibrated pointer |
| Objectives | Infinity-corrected E Plan achromatic DIN 4x/0.10, 10x/0.25, 40xR/0.66, 100xR/1.25 oil; 40xR and 100xR retractable |
| Focusing | Low coaxial coarse and fine both sides; stroke 26 mm; fine graduation 2 microns; range 19 mm |
| Stage | 145 x 140 mm double-layer; travel 76 x 52 mm; two-slide holder |
| Condenser and light | 1.25 NA Abbe on rack and pinion with graduated iris; 3 W LED with intensity control |
| Camera versions | 10.0 MP: 1.67 micron pixels, max. 3664 x 2748, up to 28 fps binned. 5.0 MP: 2.2 micron pixels, max. 2592 x 1944, 5 to 25 fps |
| Camera software | Still and video capture; JPEG, BMP, TIFF, RAW; focus stacking, stitching, HDR, live and still measurement; Windows, Linux, Mac |
| Optional, not included | 0.47x adjustable and 1x C-mounts; SLR camera adapters; dark field and polarising kits |
Uses of the digital trinocular microscope
- Photo and video documentation of slides for teaching records
- Measuring structures on live or still images with the software
- Extended depth of focus images of thick specimens by focus stacking
- Stitching several fields into one image of a larger section
Scope of supply and ordering
The listing covers the trinocular microscope with eyepieces, four objectives and the chosen 5.0 MP or 10.0 MP camera with software. C-mounts, adapters, kits, quantities and delivery are itemised on the quotation.
Frequently asked questions
What is the difference between the two camera versions?
The 10.0 MP camera has 1.67 micron pixels and 3664 x 2748 maximum resolution; the 5.0 MP camera has 2.2 micron pixels, 2592 x 1944 maximum resolution and higher frame rates, up to 25 fps at 1024 x 768.
What does the 20:80 split mean?
The trinocular head sends part of the light to the camera port and the rest to the eyepieces, so the specimen can be viewed and recorded together.
Can a DSLR camera be fitted?
The listing offers camera adapters for common SLR camera brands and 0.47x or 1x C-mounts as options, not included as standard.
