Measurement of Inductance and Capacitance Manufacturer,Supplier and Exporter in India
Product Code : JA-AET-1472

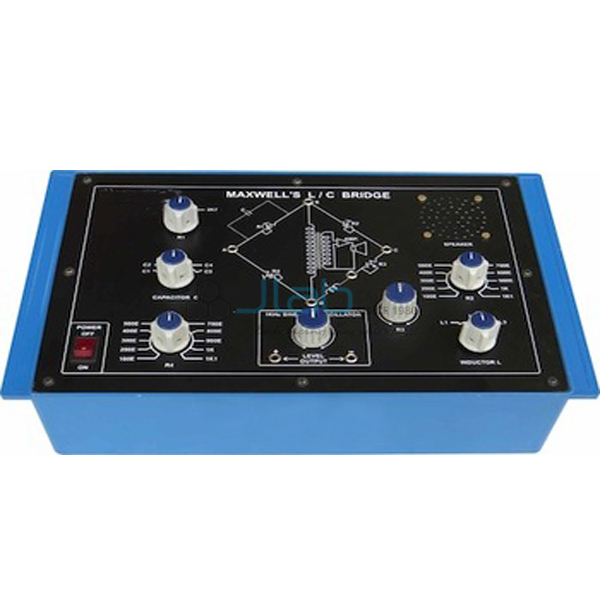

The inductance and capacitance measurement trainer is a bridge panel for measuring unknown capacitances and unknown inductances. Five unknown capacitors and three unknown inductors are selected by band switches, two decade resistances step in 100 ohm, and a built-in 1 kHz sine wave oscillator with an audio amplifier and speaker is used for null detection (SKU JA-AET-1472).
Specifications
The measurement panel carries:
| Product | Measurement of Inductance and Capacitance |
| SKU | JA-AET-1472 |
| DC supply | ±12 V DC at 100 mA, IC regulated, internally connected |
| Oscillator | 1 kHz sine wave |
| Null detector | Audio amplifier and speaker |
| Unknown capacitors | Five, selected by a band switch |
| Unknown inductors | Three, selected by a band switch |
| Decade resistances | Two, in 100 ohm steps |
| Control | Potentiometer |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
| Weight | 3 kg approx. |
| Dimensions | W 340 x H 110 x D 210 mm |
Scope of supply and ordering
The listing covers the L and C measurement panel with patch cords and operating instructions, supplied by JaincoLab; the oscillator and null detector are built in. Quantities, packing and lead time are confirmed on the quotation.
Frequently asked questions
What can be measured on the panel?
Unknown capacitance and unknown inductance.
How is the null detected?
Through the built-in audio amplifier and speaker; a 1 kHz sine wave oscillator is also built in.
How many unknown components are provided?
Five unknown capacitors and three unknown inductors, each set selected by a band switch.
Related products
The analog electronics trainer range lists further items of this kind.
Request a quote
To order the Measurement of Inductance and Capacitance, send the SKU JA-AET-1472, the quantity and the delivery destination through the JaincoLab contact page. For tender or project supply, see our tenders page.
