Paddle Wheel Flow Meter Manufacturer,Supplier and Exporter in India
Product Code : JA-FMAHLE-10009

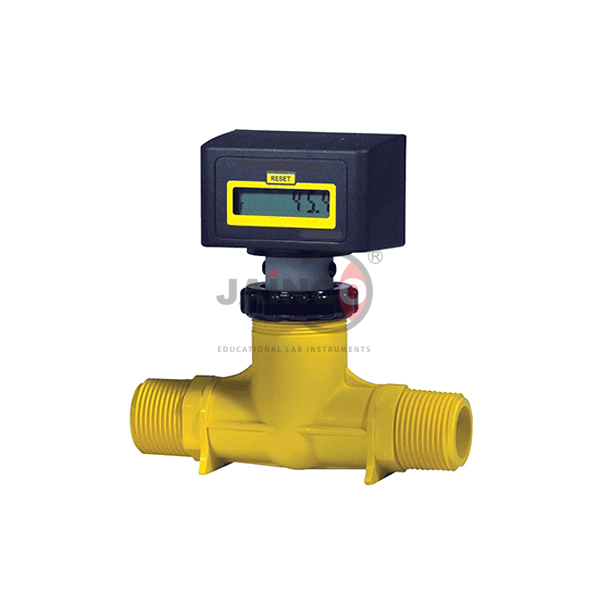

This paddle wheel flow meter is an accessory for a fluid mechanics trainer. Water passing through it turns a paddle wheel. A ring magnet and a Hall sensor pick up the rotation without contact, and the flow rate shows on a display. It measures 2 to 48 L/min and has connections for measuring its own pressure loss.
Specifications of the paddle wheel flow meter
| Product code | JA-FMAHLE-10009 |
|---|---|
| Measuring range | 2 to 48 L/min |
| Sensing | Non-contact, ring magnet and Hall sensor |
| Display | Flow rate display |
| Auxiliary power | 24 V DC |
| Connections | For pressure loss measurement and auxiliary power supply |
| Installation | Vertical or horizontal |
| Use | Accessory for a fluid mechanics trainer |
| Manufacturer | JaincoLab, Ambala, India |
Using the paddle wheel flow meter in flow measurement practicals
- Calibrating against a measuring tank. On a Hydraulics Bench, collect the outflow for a set time with a Digital Stop Watch. Compare the volume per minute with the display.
- Comparing flow meter types. Pass the same flow through this meter and a Venturi meter and Orifice meter Apparatus or an Electromagnetic Flow Meter, then compare the readings.
- Measuring pressure loss. Connect a Manometer Open U-Tube to the pressure-loss connections and record the drop at several flow rates.
- Pipe friction work. Use the meter to set and read the flow while measuring losses on Friction Losses in Pipe Elements.
Frequently Asked Questions
How do students check the meter reading during a practical?
Run water through the meter at a steady rate and collect it in a measuring tank for a timed period. Divide the volume by the time and compare it with the display. Repeat at several flow rates to draw a calibration curve.
Why does the display read low or jump about?
Air in the line is the usual cause, because the paddle wheel must run in a full pipe. Bleed the air out before taking readings and let the flow settle. Dirt caught on the paddles can also slow the wheel.
Does the meter read below 2 L/min?
No. Its measuring range is 2 to 48 L/min. Below the lower limit the water cannot turn the paddle wheel steadily, so the readings are not reliable. For very low flows, use a timed collection in a measuring tank instead.
Why is there a pressure loss across the meter?
The paddle wheel sits in the stream and takes some energy from the water to turn. This shows as a drop in pressure from inlet to outlet. Students measure it at the pressure-loss connections and plot it against flow rate.
How does a paddle wheel meter differ from a venturi or orifice meter?
A venturi or orifice meter gives a pressure difference, which students convert to flow with a formula and a discharge coefficient. The paddle wheel meter counts wheel turns and shows the flow rate directly on its display.
Other flow measurement equipment
- Electromagnetic Flow Meter
- Orifice Plate Flow Meter With Transducer
- Flow Meter Demonstration Unit
- Methods of Flow Measurement
See the Fluid Mechanics Lab Equipment range and more engineering lab equipment from JaincoLab, an engineering lab equipment manufacturer in India.
For a quotation, send the product name and the quantity you need through our contact page. For tender or project supply, see our tenders page.
