Passive Filters Manufacturer,Supplier and Exporter in India
Product Code : JA-AET-1455

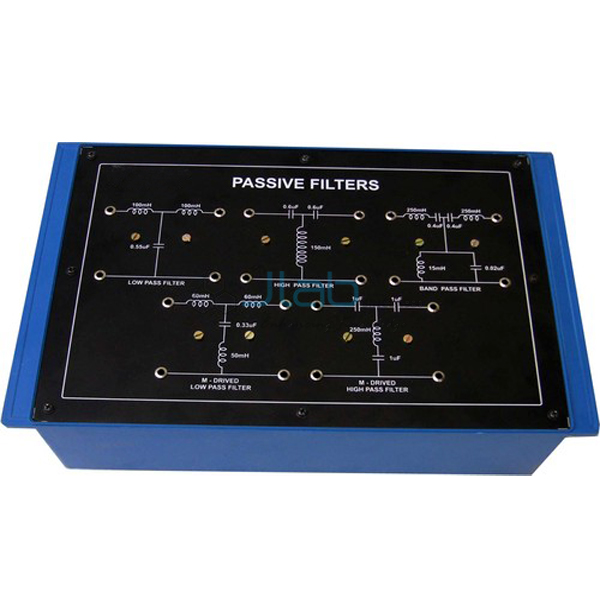

The passive filters trainer is used to study constant-K and m-derived passive filters and to determine their constants and cut-off frequencies. It covers low-pass, high-pass and band-pass constant-K filters and low-pass and high-pass m-derived filters, and is used with an audio frequency generator and an AC millivoltmeter (SKU JA-AET-1455).
Specifications
The filter panel is listed with:
| Product | Passive Filters |
| SKU | JA-AET-1455 |
| Filters | Low-pass, high-pass and band-pass constant-K; low-pass and high-pass m-derived |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
| Connections | Terminals and sockets on the panel for connections and waveform observation |
| Other apparatus required | Audio frequency generator; AC millivoltmeter |
Filters studied
Constants and cut-off frequency are determined for:
- Low-pass constant-K filter
- High-pass constant-K filter
- Band-pass constant-K filter
- Low-pass m-derived filter
- High-pass m-derived filter
Scope of supply and ordering
The listing covers the passive filter panel with patch cords and operating instructions, supplied by JaincoLab. Quantities, packing and delivery lead time are stated on each quotation.
Frequently asked questions
Which filter types are on the panel?
Low-pass, high-pass and band-pass constant-K filters, and low-pass and high-pass m-derived filters.
What is measured for each filter?
Its constants and its cut-off frequency.
What instruments are needed?
An audio frequency generator and an AC millivoltmeter.
