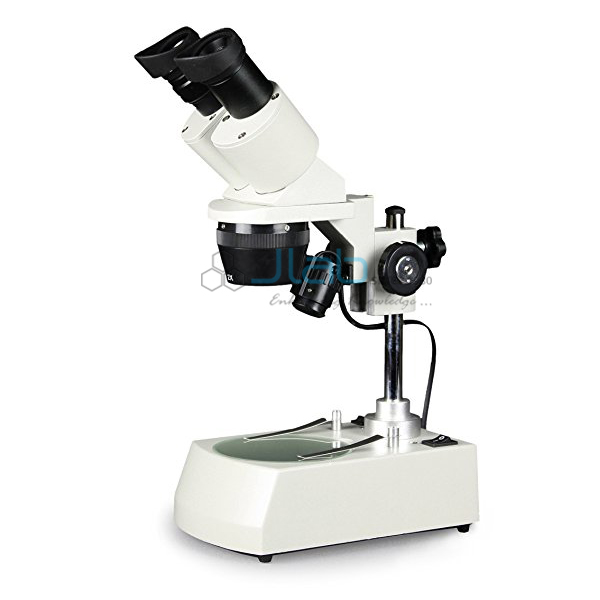

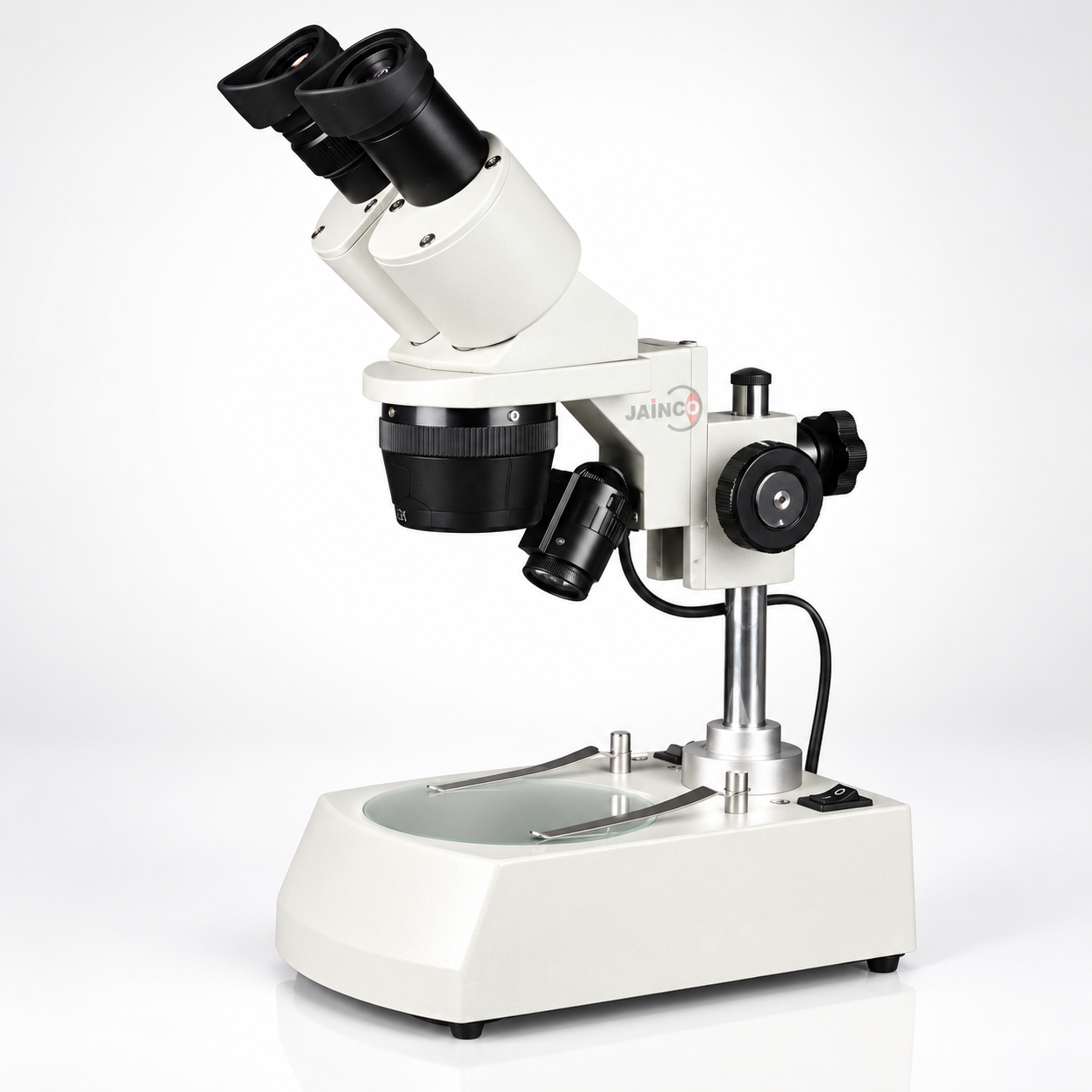

Binocular Stereo Microscope Frosted Glass Plate 1x and 3x Objective Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8098
The Binocular Stereo Microscope Frosted Glass Plate 1x and 3x Objective (SKU JA-M-8098) is a cordless stereo microscope supplied by JaincoLab for dissection in life science and for looking at the surfaces of rocks and minerals. Turning the objective turret switches between 1x and 3x, so this binocular stereo microscope gives 10x and 30x with the WF10x eyepieces and a 55 mm working distance.
Specifications
The 1x/3x model is listed with the values below.
| Product | Binocular Stereo Microscope Frosted Glass Plate 1x and 3x Objective |
| SKU | JA-M-8098 |
| Head | Binocular, inclined 45 degrees; diopter on one tube; IPD 51-75 mm |
| Eyepieces | WF10x |
| Objectives | 1x and 3x on a turret; parfocal and parcentred |
| Magnification | 10x and 30x |
| Working distance | 55 mm |
| Focusing | Rack and pinion with safety stop and tension adjustment |
| Stage | Frosted glass plate and reversible black/white plate, both 95 mm; pair of stage clips |
| Illumination | LED top, bottom or both, by dual switch |
| Power | Rechargeable battery (charger listed as 110 V) |
| Body | Cast aluminium, grey enamel finish |
| Packing | Fitted foam box with dust cover and instruction manual |
Uses of the 10x and 30x stereo microscope
- Dissection of flowers, insects and small animals at 10x
- Surface texture and grain of rocks and minerals at 30x
- Translucent specimens on the frosted glass plate with bottom light
- Field and classroom use on battery power
Scope of supply and ordering
Each microscope ships in its fitted foam box with the glass and black/white plates, a dust cover and an instruction manual. Charger voltage for the destination, quantity and delivery are confirmed on the quotation.
Frequently asked questions
How do I change between 10x and 30x?
Turn the objective turret from the 1x to the 3x objective; both are parfocal, so the image stays close to focus after the change.
What working distance does it give?
The listing gives 55 mm between the objective and the specimen for both objectives, which leaves room for dissecting tools.
Does it run without a socket?
Yes. It runs on a rechargeable battery; the charger is listed for 110 V, and the version for the destination is confirmed on the quotation.
