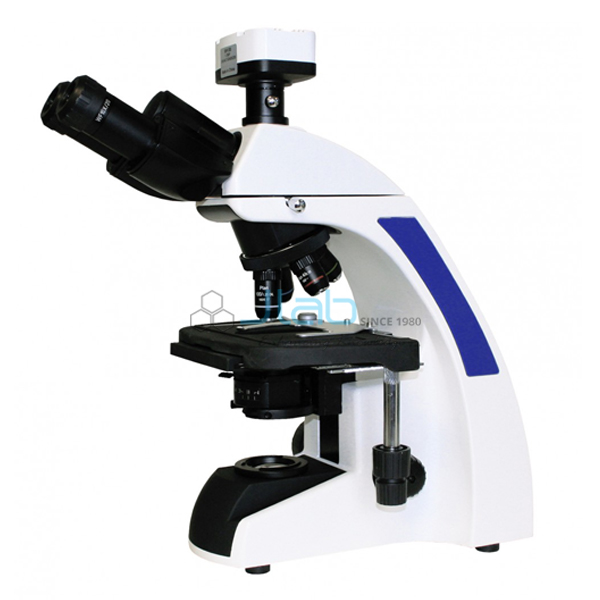

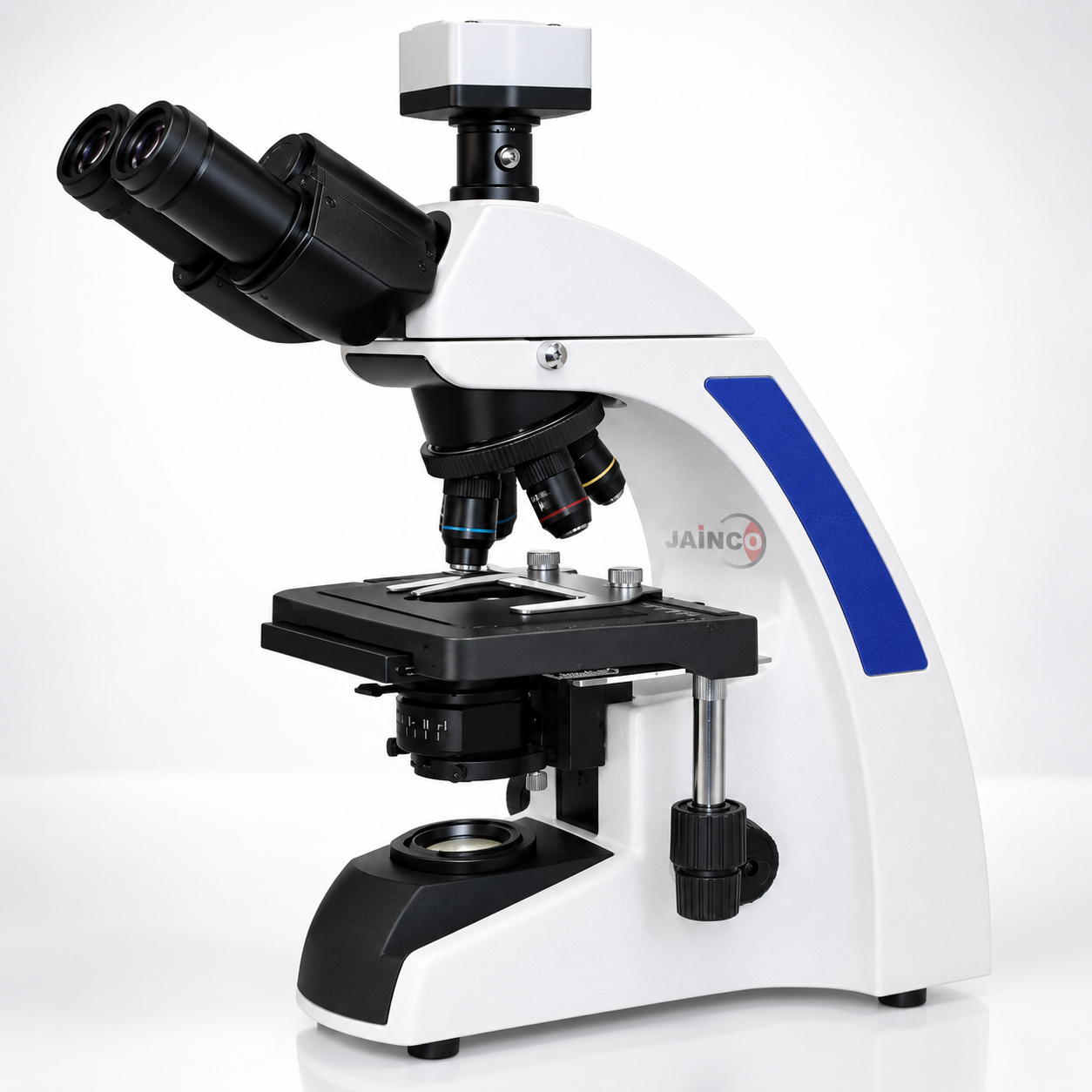

Digital Trinocular Microscope 5W LED Kohler Illumination Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8077
The Digital Trinocular Microscope 5W LED Kohler Illumination (SKU JA-M-8077) is a trinocular laboratory microscope supplied by JaincoLab for colleges and research teaching. Four plan achromatic DIN objectives from 4x to 100x oil, a 5 W LED with Kohler illumination and a 1.25 NA Abbe condenser deliver even, controllable lighting. A 50/50 phototube with a 0.5x C-mount takes a digital eyepiece camera, so this digital trinocular microscope can show live images on a computer or screen.
Specifications
The listed specification is a 30-degree trinocular head rotating 360 degrees, WF10x/22 mm eyepieces, a ball-bearing quadruple nosepiece, plan achromatic DIN 4x, 10x, 40xR and 100xR oil objectives, low coaxial focusing with 1 micron graduation, a 216 x 150 mm stage, a 1.25 NA condenser and 5 W LED Kohler illumination.
| Product | Digital Trinocular Microscope 5W LED Kohler Illumination |
| SKU | JA-M-8077 |
| Head | Trinocular, inclined at 30 degrees, rotates 360 degrees; interpupillary distance 48-75 mm; tube length unchanged on IPD adjustment |
| Eyepieces | WF10x/22 mm, high eyepoint, eyeguards, both dioptre adjustable |
| Nosepiece | Reversed quadruple on ball bearings, internal click stops |
| Objectives | Plan achromatic DIN 4x/0.10, 10x/0.25, 40xR/0.65, 100xR/1.25 oil (160/0.17) |
| Focusing | Low coaxial coarse and fine; 37.7 mm per coarse turn; 0.1 mm per fine turn, 1 micron graduation; range 16 mm |
| Stage | 216 x 150 mm double layer mechanical stage; travel 75 x 55 mm |
| Condenser | Abbe 1.25 NA, rack and pinion, graduated iris diaphragm |
| Illumination | Kohler with field diaphragm; 5 W LED with intensity control |
| Imaging | Trinocular phototube 50/50; 0.5x C-mount included; 5 MP or 10 MP eyepiece camera available |
Applications of the digital trinocular microscope
It is used where observations must be shared or recorded: a camera on the C-mount streams live images to a computer or display for teaching, while plan objectives and Kohler lighting give flat, evenly lit fields for photographing stained sections and smears.
- Live display of slides for a class
- Image capture for practical records and theses
- Histology and pathology teaching slides
- Microbiology and botany practicals
- Research training in college laboratories
Scope of supply and ordering
One unit is one trinocular microscope with the listed head, eyepieces, four plan objectives, stage, condenser, 5 W LED Kohler illumination and 0.5x C-mount. The 5 MP or 10 MP camera, reticle eyepiece, spares and quantities are confirmed on the quotation.
The quotation confirms the minimum order quantity, lead time and packing for the quantity and delivery destination you give. Orders from individual schools, bulk purchases for colleges and education programmes, and tender requirements are all supplied, with export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Is a camera included?
A 0.5x C-mount is included; a 5 MP or 10 MP digital eyepiece camera is available and confirmed on the quotation.
Which objectives are fitted?
Plan achromatic DIN 4x, 10x, 40xR and 100xR oil objectives.
Is a measuring reticle available?
An optional reticle eyepiece with 0.1 mm/1 cm grid, cross or plain cross hair is listed; it is not included as standard.
