Series and Parallel Resonance Manufacturer,Supplier and Exporter in India
Product Code : JA-AET-1453

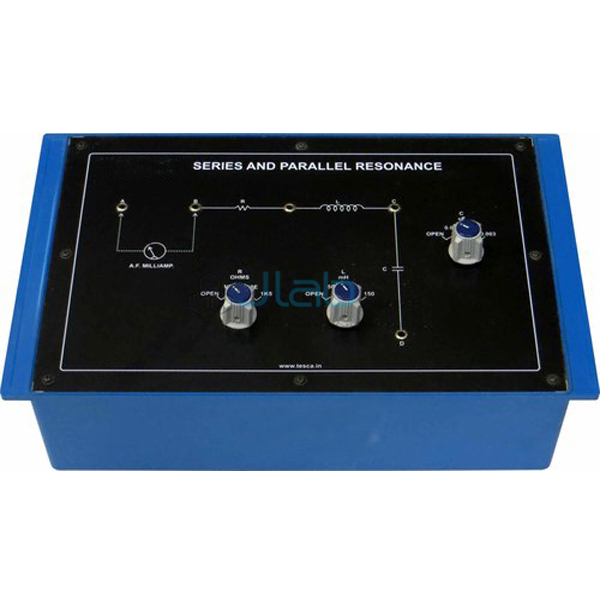

The series and parallel resonance trainer lets students plot resonance curves for series and parallel circuits with different values of resistance, capacitance and inductance, and measure Q for both. Three ferrite-core inductances, three low-loss capacitances and three resistances are each selected by a switch, and the panel also supports measuring the relative permittivity of a liquid (SKU JA-AET-1453).
Specifications
The resonance panel is listed with:
| Product | Series and Parallel Resonance |
| SKU | JA-AET-1453 |
| Inductances | Three, on ferrite cores, switch-selected |
| Capacitances | Three, low loss factor, switch-selected |
| Resistances | Three, switch-selected |
| Patch cords | 4/2 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
| Weight | 3 kg approx. |
| Dimensions | W 340 x H 110 x D 210 mm |
| Other apparatus required | Decade audio frequency generator; AC millivoltmeter; AF millivoltmeter |
Resonance experiments
The listed experiments are:
- Series resonance with different R, C and L values, with resonance curves
- Parallel resonance with different R, C and L values, with resonance curves
- Measurement of Q for series and parallel resonance
- Measurement of the dielectric constant (relative permittivity) of a liquid
Scope of supply and ordering
The listing covers the resonance panel with patch cords and operating instructions, supplied by JaincoLab. Pack quantities, packing method and lead time are fixed on the quotation.
Frequently asked questions
Which component values can be switched?
Three ferrite-core inductances, three low-loss capacitances and three resistances, each set selected by a switch.
Can the Q factor be measured?
Yes. Measurement of Q for both series and parallel resonance is one of the listed experiments.
What else can the resonance panel measure?
The dielectric constant, or relative permittivity, of a liquid.
