Semiconductor Diode Manufacturer,Supplier and Exporter in India

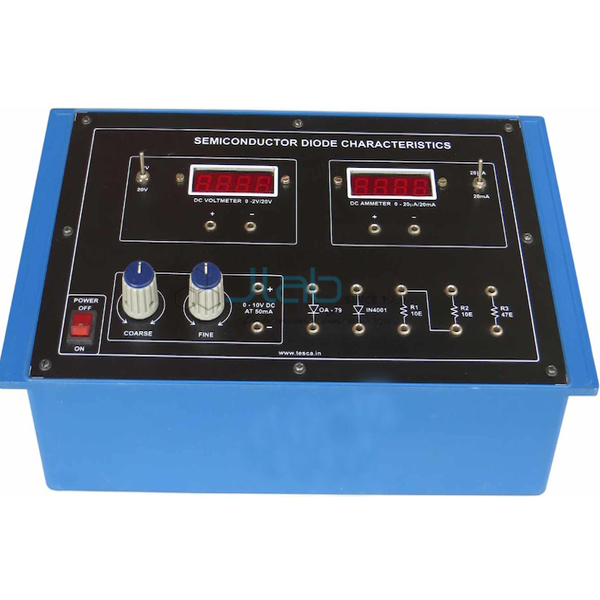

Semiconductor Diode

Product Code : JA-AET-1464

The Semiconductor Diode trainer plots the forward and reverse characteristics of a germanium diode and a 1N4148 silicon diode. Students also find the static and dynamic resistance of a forward-biased P-N junction. A current-limited 0 to 10 V DC supply with coarse and fine controls is built in, with 3½ digit meters for voltage and current.

Specifications of the semiconductor diode trainer

Product codeJA-AET-1464
DiodesGermanium diode, and a 1N4148 silicon diode as the standard training diode, identified on the board, schematic and bill of materials*
DC supply0 to 10 V DC at 50 mA, current limited, continuously variable with coarse and fine controls, regulated
VoltmeterDigital DC, 3½ digit, 2 V and 20 V ranges
Current meterDigital DC, 3½ digit; 0 to 200 µA range with 0.1 µA resolution for reverse current; 0 to 20 mA range for forward current
ExperimentsForward and reverse characteristics, with a forward sweep of about 0 to 20 mA*; static and dynamic resistance of a forward-biased P-N junction
Mains230 V ±10%, 50 Hz AC; on/off switch and fuse
Supplied with4 mm patch cords, 50 cm, and operating instructions
ManufacturerJaincoLab, Ambala, India

* Standard JaincoLab specification for new builds.

Diode experiments on the trainer

  • Forward curves side by side. Use the fine control near the knee and step the voltage slowly for each diode. Plot both forward curves on one graph and compare where each one turns upward.
  • Reverse current. Reverse both diodes and read the current on the 200 µA range. The germanium diode shows a clear reading while the silicon diode reads close to zero.
  • Zener for comparison. Plot the reverse curve of the zener on the Training Board for Diode and Zener Diode and set it beside the reverse curves taken here.
  • Temperature and leakage. Carry the reverse-current work on to the Determination of Energy Band Gap in Semiconductor Diode apparatus, where leakage is measured at several temperatures.

Frequently Asked Questions

Why does the germanium diode show a much larger reverse current than the silicon diode?
Germanium has a smaller energy gap, so heat at room temperature frees far more charge carriers in it. These carriers form the reverse leakage current. On the 200 µA range the germanium current is easy to read, while the silicon diode shows a value close to zero.

How are the static and dynamic resistance worked out from the readings?
Static resistance is the voltage divided by the current at one point on the forward curve. Dynamic resistance is the small change in voltage divided by the matching change in current around that point, which is the slope of the curve. Dynamic resistance falls as the forward current rises.

Why does the current meter have a separate microampere range?
Reverse currents are tiny. On a 20 mA range they would show as zero, because the smallest step is too coarse. The 200 µA range reads in 0.1 µA steps, so leakage can be read and plotted. Switch back to the 20 mA range for forward readings, or the meter will overload.

Which silicon diode is fitted to the trainer as standard?
The standard silicon training diode is the 1N4148, a small-signal diode suited to low-current characteristics. It is marked on the board, the schematic and the bill of materials, next to the germanium diode. A power rectifier such as the 1N4007 would be a separately identified variant, named in the order.

Does the trainer need a separate power supply unit?
No. It runs on 230 V ±10%, 50 Hz mains with an on/off switch and fuse. The current-limited 0 to 10 V DC supply and both meters are built in. Only the patch cords supplied with it are needed to wire the circuits.

Other semiconductor trainers in the analogue range

See the Analog Electronics Trainer range and more electronics lab equipment from JaincoLab, an electronics lab equipment manufacturer in India.

For a quotation, send the product name and the quantity you need through our contact page. For tender or project supply, see our tenders page.
