Training Board for Diode and Zener Diode Manufacturer,Supplier and Exporter in India

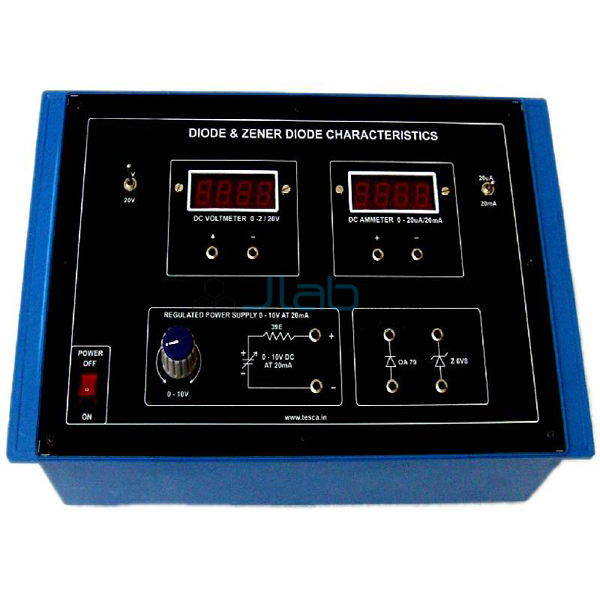

Training Board for Diode and Zener Diode

Product Code : JA-AET-1457

The Training Board for Diode and Zener Diode is used to plot the forward and reverse characteristics of a germanium diode and a zener diode. A 0 to 10 V DC regulated supply with a current-limiting resistor feeds the diodes. Built-in 3½ digit meters read voltage on 2 V and 20 V ranges and current on 2 mA and 20 mA ranges.

Specifications of the diode and zener diode board

Product codeJA-AET-1457
DiodesGermanium semiconductor diode and zener diode, mounted behind the panel
DC supply0 to 10 V DC at 10 mA, continuously variable, regulated, low ripple and hum, with an integral current-limiting resistor
VoltmeterDigital DC, 3½ digit, 2 V and 20 V ranges
Current meterDigital DC, 3½ digit; 2 mA range with 1 µA steps and 20 mA range
Mains230 V ±10%, 50 Hz AC; on/off switch, fuse and jewel light
Patch cords4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m
Supplied withPatch cords and operating instructions
ManufacturerJaincoLab, Ambala, India

Diode and zener practicals on the board

  • Germanium forward curve. Raise the supply in small steps and read the current on the 2 mA range near the knee. Switch to the 20 mA range as the current grows, and plot current against voltage.
  • Zener breakdown. Reverse-bias the zener, step up the voltage and note where the current starts to rise. The 1 µA steps of the 2 mA range show the soft start of breakdown.
  • Germanium and silicon. Repeat the forward curve on the Semiconductor Diode trainer, which has a silicon diode as well, and compare the two knee voltages.
  • Zener as a regulator. Take the work further on the Voltage Stabilization Characteristics of Zener Diode apparatus, where the zener holds a load voltage steady.

Frequently Asked Questions

Why does the zener curve bend gradually at low current instead of turning sharply?
Below its rated test current a zener starts to conduct a little before full breakdown, so the curve has a soft knee. The 2 mA range, with 1 µA steps, shows this region clearly. Plot points closely there, then change to the 20 mA range once the current rises steeply.

Why does the measured zener voltage change with the current through it?
A zener has a small dynamic resistance, so its voltage rises a little as the current grows. Datasheets quote the zener voltage at one stated test current for this reason. On the board, read the voltage at several currents; the slope of the curve gives the dynamic resistance.

Why does the germanium diode start to conduct at a lower voltage than a silicon diode?
Germanium has a smaller energy gap than silicon, so a lower voltage is enough to push current across the junction. Its forward curve therefore turns upward at a few tenths of a volt, earlier than a silicon curve does. Students can show this by comparing the two boards.

Why is the 0 to 10 V supply fitted with a current-limiting resistor?
A diode in forward conduction, or a zener in breakdown, draws a large current for a small rise in voltage. The integral resistor limits that current, so a quick turn of the control cannot overheat the diode. The supply is rated at 10 mA, which also keeps readings inside the meter ranges.

What ranges and resolution do the built-in meters have?
The digital voltmeter is 3½ digit with 2 V and 20 V ranges. The digital current meter is 3½ digit with a 2 mA range in 1 µA steps and a 20 mA range. Together they cover the forward, reverse and breakdown readings without an external meter.

What comes with the board when it is ordered?
Each board comes with patch cords, 0.5 m long with 4 mm spring-loaded stackable plugs, and operating instructions. It runs on 230 V, 50 Hz mains, with an on/off switch, a fuse and a jewel light. No separate supply or meters are needed.

Other semiconductor trainers in the analogue range

See the Analog Electronics Trainer range and more electronics lab equipment from JaincoLab, an electronics lab equipment manufacturer in India.

For a quotation, send the product name and the quantity you need through our contact page. For tender or project supply, see our tenders page.
