Single Phase Series Inverter Manufacturer,Supplier and Exporter in India
Product Code : JA-PET-1437

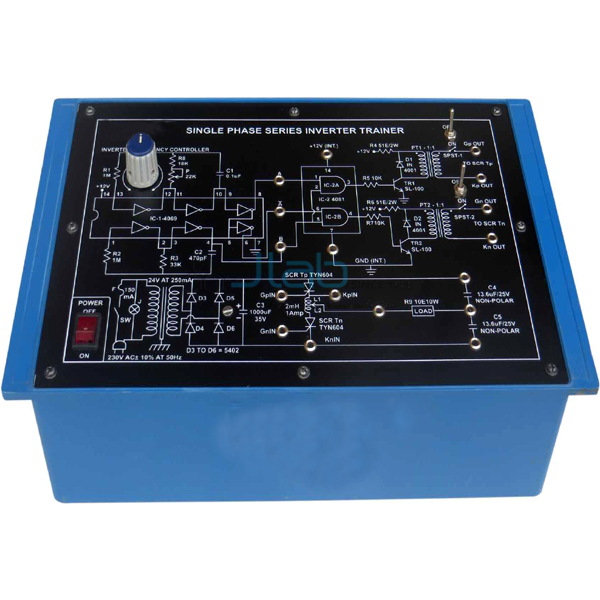

Single Phase Series Inverter
- Power Electronic Training Board has been designed specifically for study of the Single Phase Series Inverter.
- Practical experience on this board carries great educative value for Science and Engineering Students.
Object:
- To study the Single Phase Series Inverter
Features:
The board consists of the following built-in parts:
- 12V DC at 100mA fixed regulated Power Supply
- Bridge rectifier for making DC voltage
- Hex Inverter IC
- Quad, 2-input AND gate IC
- Two Silicon Controlled Rectifiers (SCR’s)
- Two Pulse transformer 1:1
- Potentiometer for inverter frequency controller
- Center taped Inductor
- Two NPN transistor
- Adequate no. of other Electronic Components
- Mains ON/OFF switch, Fuse and Jewel light
- The unit is operative on 230V ±10% at 50Hz A.C. Mains.
- Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ metre
- Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
- Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
Weight:
- 3 Kg. (Approx.)
Dimension:
- W 340 x H 110 x D 210
Other Apparatus Require:
- Dual Trace Cathode Ray Oscilloscope 20MHz (Unearthed)
